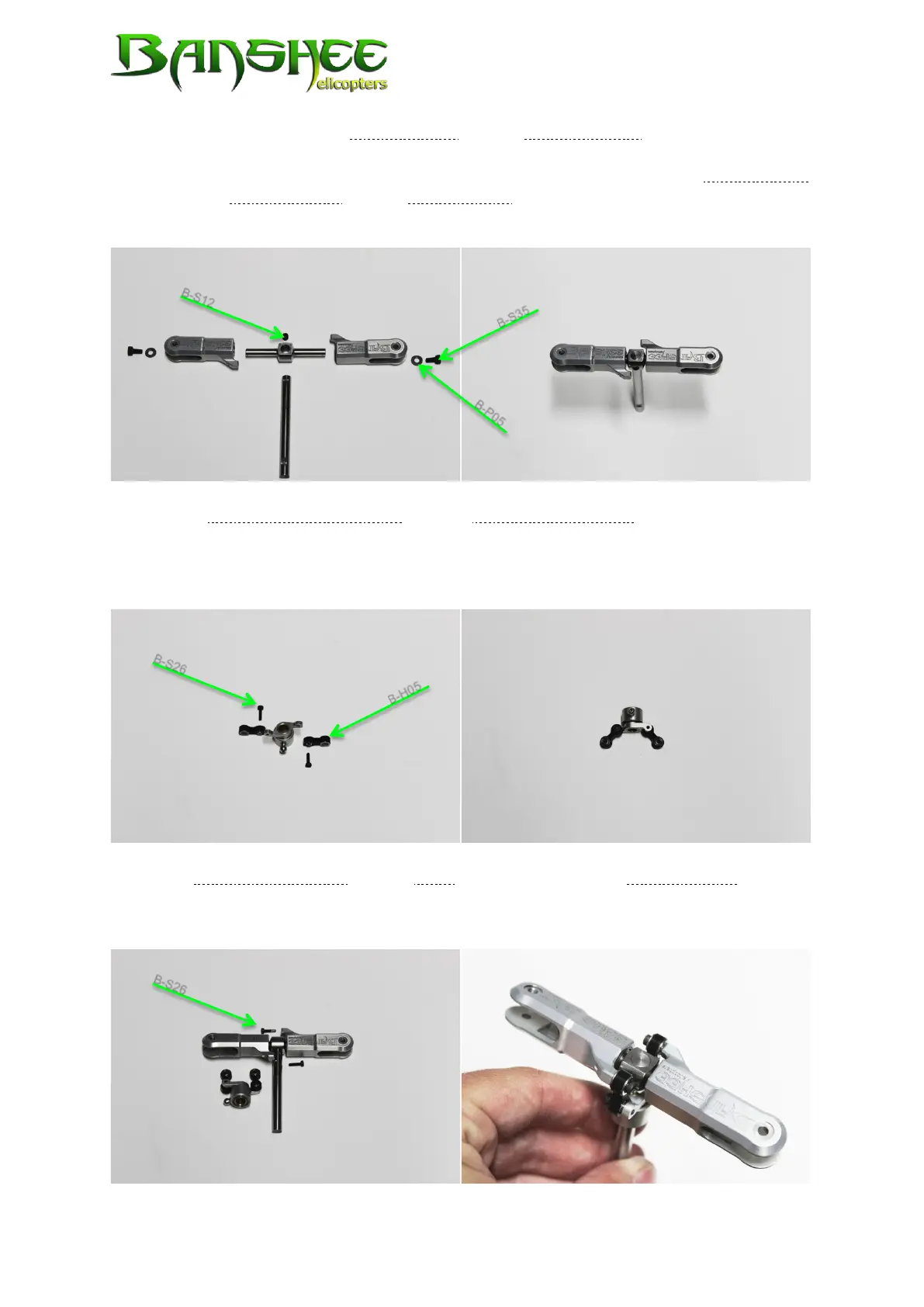

Continue with screwing the tail rotor hub to the tail rotor shaft. Fix the hub on the
shaft with a grub screw M4 x 4
(B-S12)
. Make sure that the grub screw is exactly placed
on the flat spot of the shaft and that the tail rotor shaft is flush with the tail rotor hub.
Now slide the blade holders on the tail rotor hub and screw them together with cylin-
der head bolts hex M3 x 6
(B-S35)
and the thrust washers 5x8x0.5
(B-P05)
.
Screw the Delrin feedback levers to the tail pitch assembly. The pre-assembled
feedback levers of the tail rotor come with a ball and two flange bearings 2x5x2,3
(B-L01)
already inserted. Take two cylinder head bolts hex M2 x 8
(B-S26)
to screw the
feedback levers through the M2 balls to the tail pitch assembly.
Push the tail pitch assembly on the shaft and screw it to the blade holders with two
cylinder head bolts hex M2 x 8
(B-S26)
. Make sure the Banshee Helicopter logo is fac-
ing outward.
