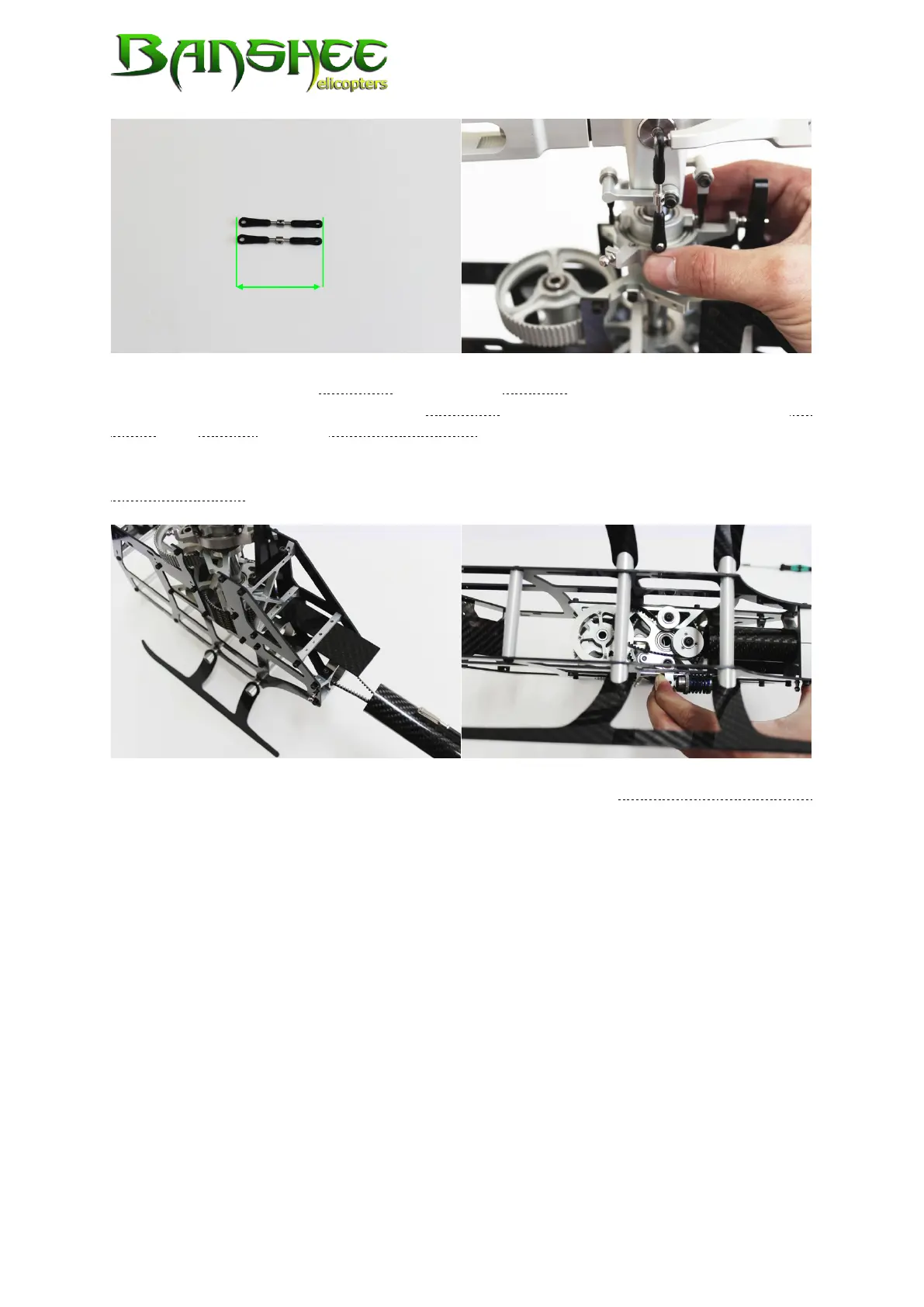

Hold the front end of the tail boom and turn the tail belt 90° anti-clockwise. Make sure
that the tail belt is not twisted in the tail boom. From behind, carefully push the tail
boom and tail belt into the tail boom clamps. Be sure the tail belt does not twist again.
You need to unscrew the cylinder head bolts hex M3 x 40
(B-S33)
to carry out this as-
sembly step. As illustrated in the picture, you can push the tail boom almost up to the
belt guide pulley.
!
It is easier to pull the tail belt through when pressing in the tail belt shock absorber
with one finger at the same time. In the end, the tail belt should be positioned in the
gear unit like shown in the left picture.
