Banshee 700 - Motor Carrier and Canopy Bracket Attachment

31 pages

To Next Page

To Previous Page

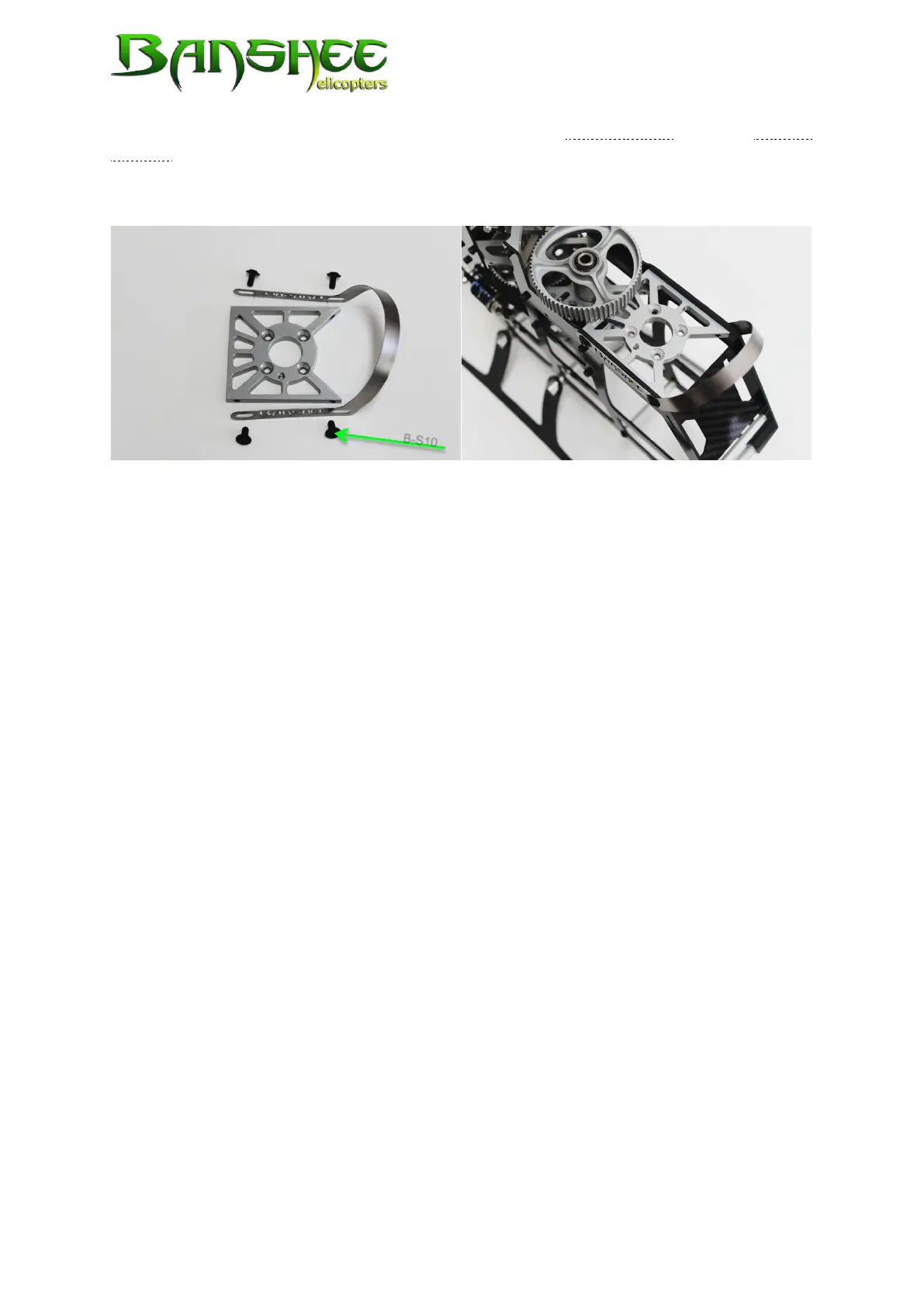

Last but not least we demonstrate how to screw the motor carrier and the canopy

bracket to the chassis with pan head bolts (with flange) M4 x 8

(B-S10)

. Make sure the

small pins located on the canopy bracket engage into the slot holes. Perform this

step after you have mounted the motor on the carrier.

S10
