© 2012 – Banshee Helicopters GmbH Page 26

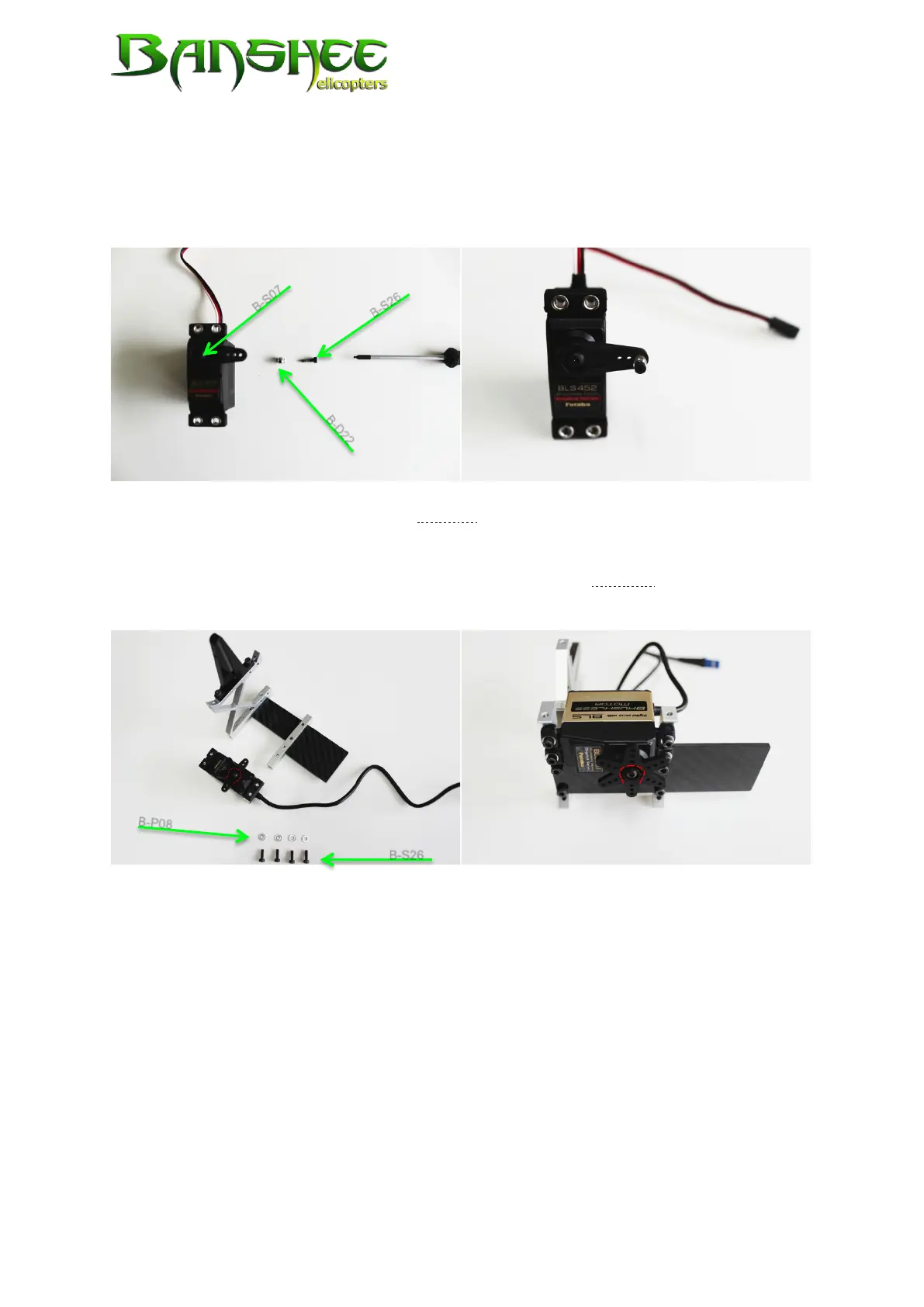

Now screw the balls
(B-D22)
with cylinder head bolts hex M2 x 8
(B-S26)
to the servo
horns. Use the outmost drill (20 mm) in the servo horn. You do not need to use a nut
since the bolts keep in place in the carbon-fibre reinforced plastic without securing. In
case of a crash the expensive servo gear is thus well protected. Instead, the servo
horn will break at the screwing.
When supplied to the customer, the RC-unit is pre-installed. You need to loosen the
bolts and take the unit out of the chassis in order to mount the individual compo-
nents. Start with the tail servo. You need four cylinder head bolts hex M2,5 x 8
(B-S29)
and four washers M2,3
(B-P08)
to screw the tail servo to the RC-unit. Screw from below
so that the wire shows towards the tail pipe.
