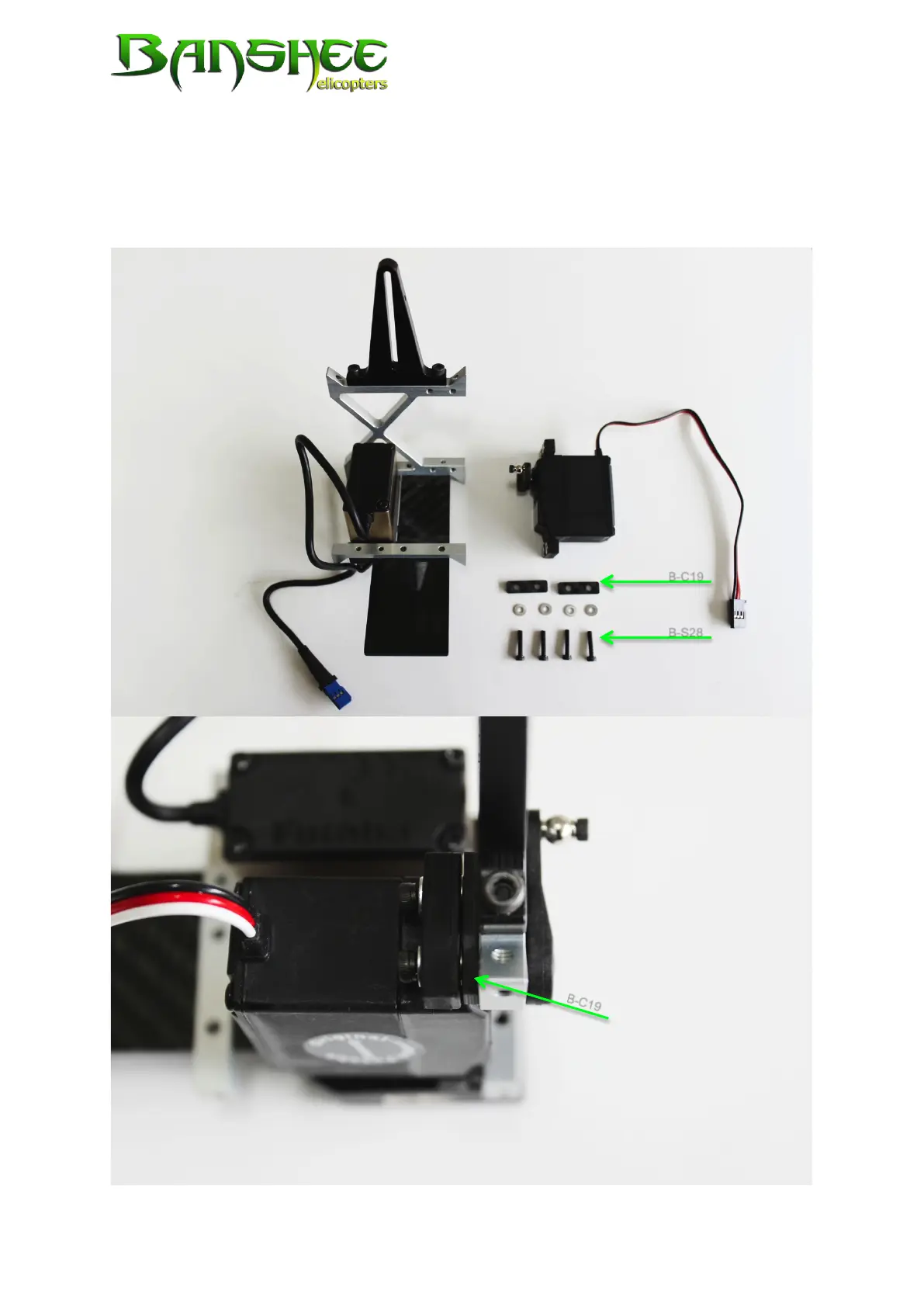

Next, install the elevator servo. Depending on the servo you need two 2 mm elevator
servo shims
(B-C19)
. Ideally, the servo horn should closely pass the elevator servo
mounting. For some servos you might need to add two additional 1 mm servo shims
(B-C20)
in order to align the rods as level as possible. Screw it in place with four cylin-
der head bolts hex M2,5 x 12
(B-S28)
and the washers M2,3
(B-P08)
.
