© 2012 – Banshee Helicopters GmbH Page 28

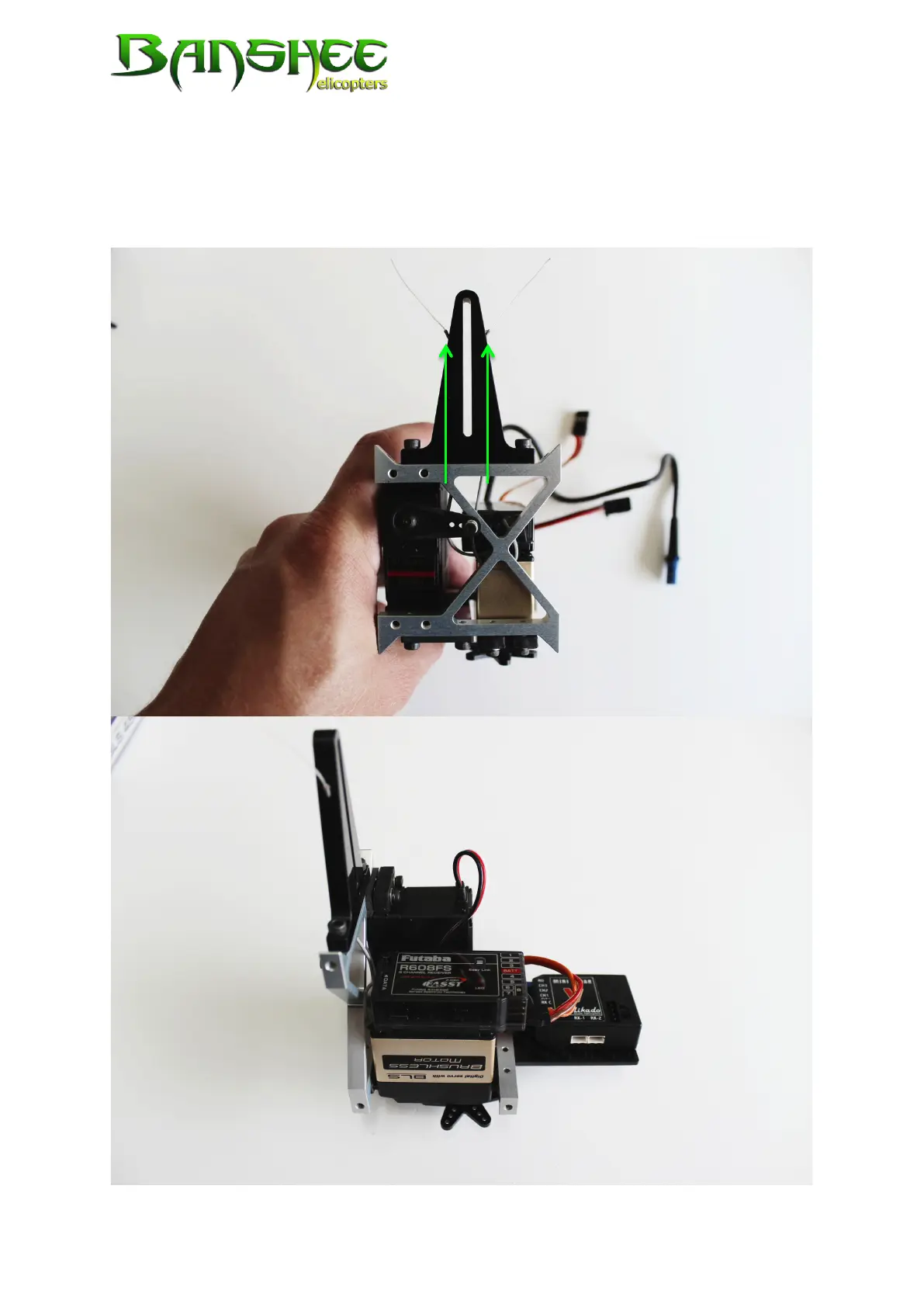

Push the antennae of the 2,4 GHz receiver from below up through the 2 mm drilling
holes in the elevator servo mounting. Then slide them upwards through the swash-
plate anti-rotation. We recommend to fix the receiver on the tail servo with thin adhe-
sive tape. You can protect the antennae in the upper area with a small heat shrink
tubing.
