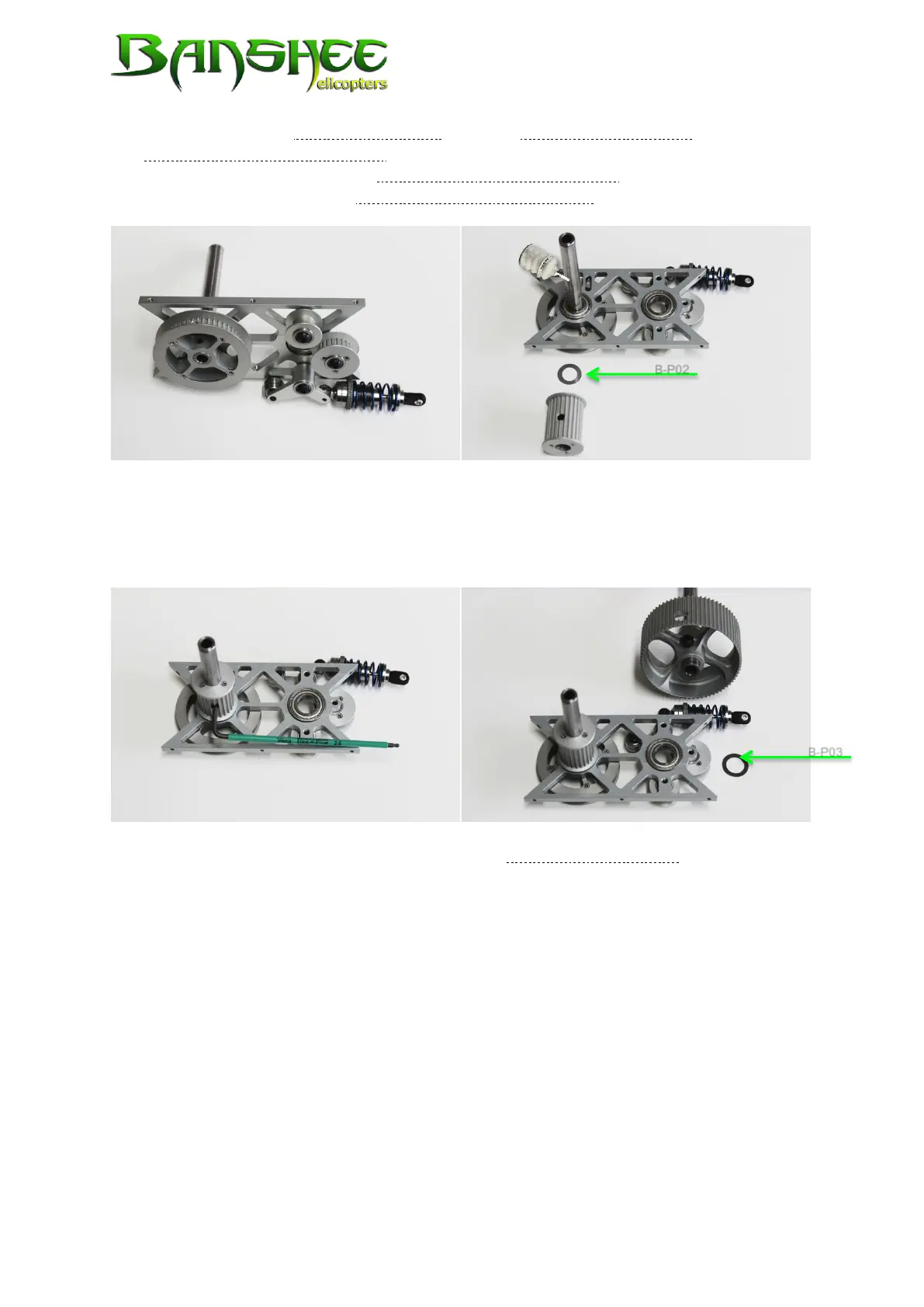

Insert the assembled intermediate shaft into the bottom bearing plate and fix it with
the intermediate shaft pulley 24Z as shown in the pictures below. Use a grub screw
M5 x 5
(B-S13)
to tighten fast the intermediate shaft pulley 24Z. Place a thrust washer
10x16x0.2
(B-P02)
between the intermediate shaft pulley 24Z and the bearing.
It is important to ensure that the grub screw is correctly tightened to the flat spot on
the shaft and that there is no axial play between the pulleys. In order to do so we
recommend you to slowly tighten the grub screw and slightly turn the pulley to test
the fit. For permanent hold tighten the grub screw carefully with a hex screwdriver.
Push the main rotor shaft downward into the bottom bearing plate. Place a thrust
washer 12x18x0.2
(B-P03)
between pulley and bearing.
