© 2012 – Banshee Helicopters GmbH Page 7

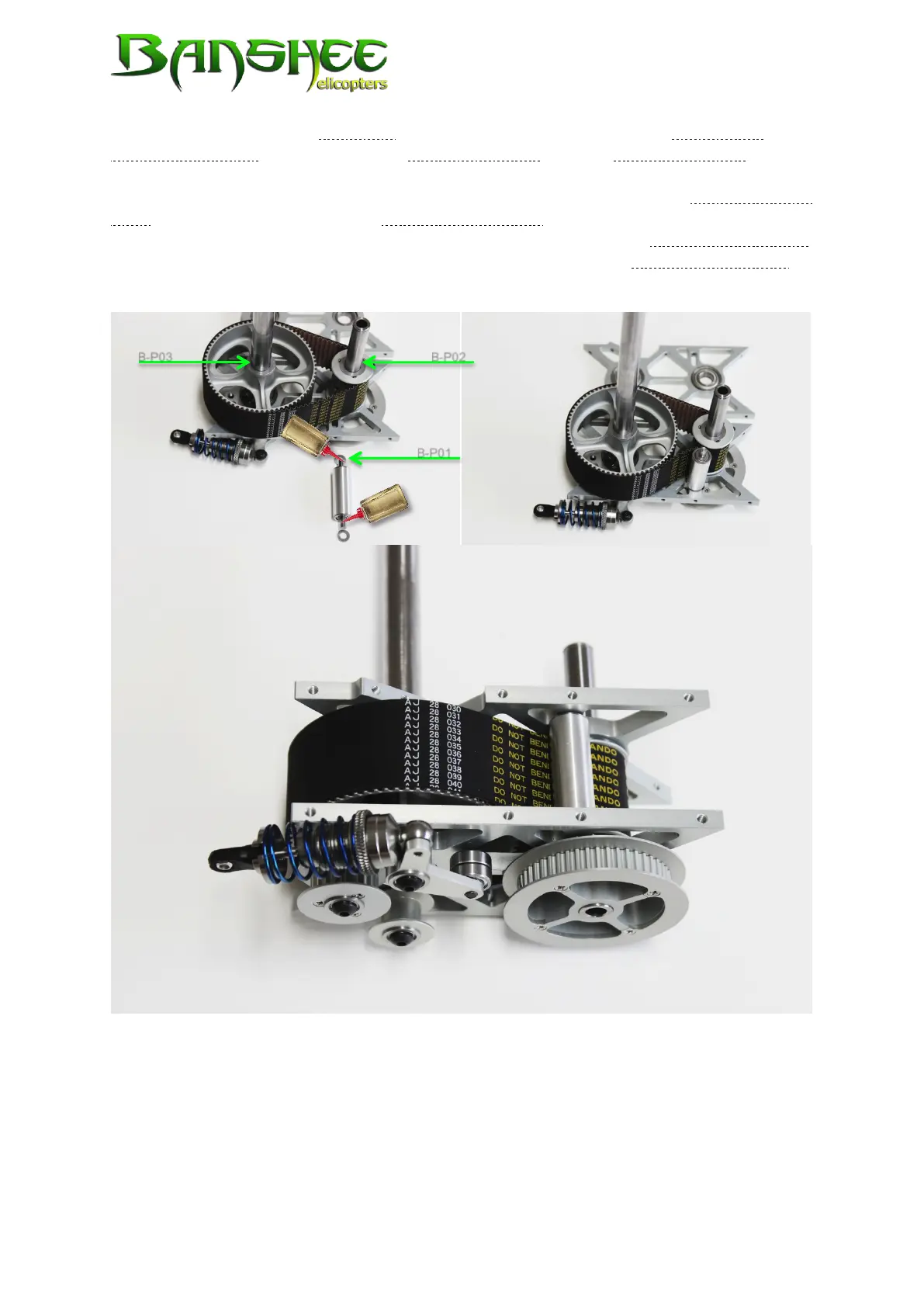

For the assembly of the main belt, first mount the belt around the pulley 24Z of the
intermediate shaft and then put the main rotor shaft with the main pulley 72Z through
the bottom bearing plate. Once the main belt is mounted around both pulleys slide
both thrust washers
(B-P02)
and
(B-P03)
on the shafts. Before sliding the middle bearing
plate on the shaft, position the main belt tensioner in the guide slot provided. You
need to place a thrust washer 4x8x0.5
(B-P01)
on each side of the main belt tensioner.
Before you do so, put some lubricant on both shaft ends of the main belt tensioner as
shown in the picture.
