Bantam e-STATION BC6 - Save Data program; Saving Battery Data; Setting Charge;Discharge Parameters

+
-
+
-
+
-
+
-
+
-
+
-
BC6
Display
SAVE [01] NiMH
14.4V 3000mAh
Display
NiMH CHARGE At*
CUR LIMIT 5.0A
Save Data program
voltage
data
number
capacity
Display
Display
NiMH DISCHARGE *
1.0A 11.0V
Setting up discharge current and final voltage.

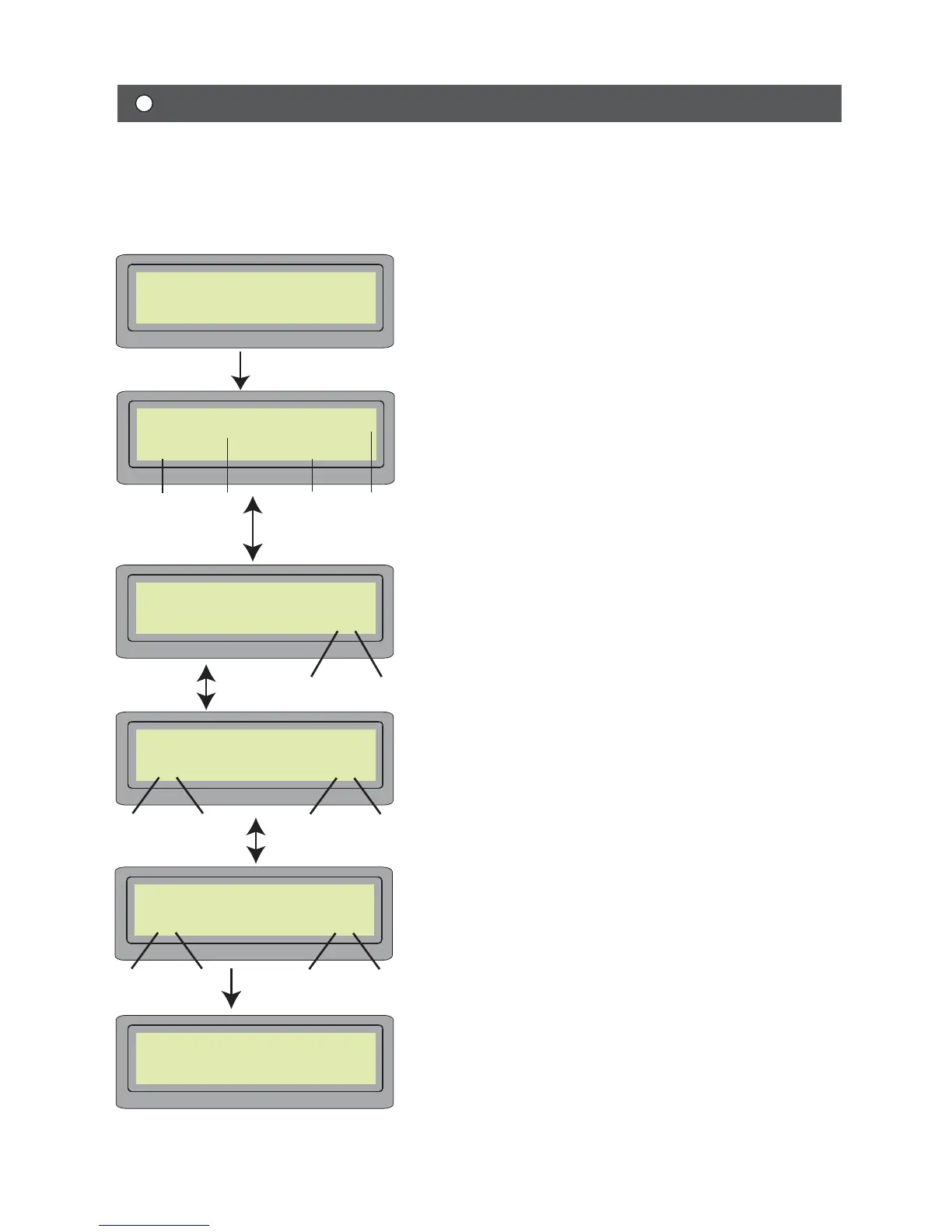

BC6 has a data storage and load program for your convenience. This feature can store up to 5
battery data by number that represent the individual specification of batteries you are using. They
can be called back for the process of charging or discharging without setting up the program again.
To set up the parameter value in the program, press key to make it blink then change the
value with or key.
The parameter value setting up in this screen does not
affect charge or discharge process. They only represent
the specification of the battery. The following screens will
automatically be displayed exactly matched with the
battery type you set up. The example shows the battery
pack of NiMH, 12 cells and 3000mAh of capacity.
Display
Save . . .
Saving the data.
Setting up the sequence of charge and discharge,
and the cycling number.
'> 3 seconds'
PROGRAM SELECT
SAVE DATA
type of
battery
Start
Enter
DEC
◀
INC
▶
'> 3 seconds'
Start
Enter
Batt type
Stop
Start
Enter
Set up the charge current for manual charge mode, or the
current limit for automatic charge mode. Each mode can
be switched by pressing and button at the
same time when the current field is blinking.
DEC
◀
INC
▶
+-
DEC
◀
INC
▶
DEC
◀
INC
▶
+
-
DEC
◀
INC
▶
DEC
◀
INC
▶
+
-
DEC
◀
INC
▶
Display
NiMH CYCLE *
DCHG>CHG 3
+
-
DEC
◀
INC
▶
+
-
DEC
◀
INC
▶
Start
Enter
