95
2. Diagram of hydraulic system

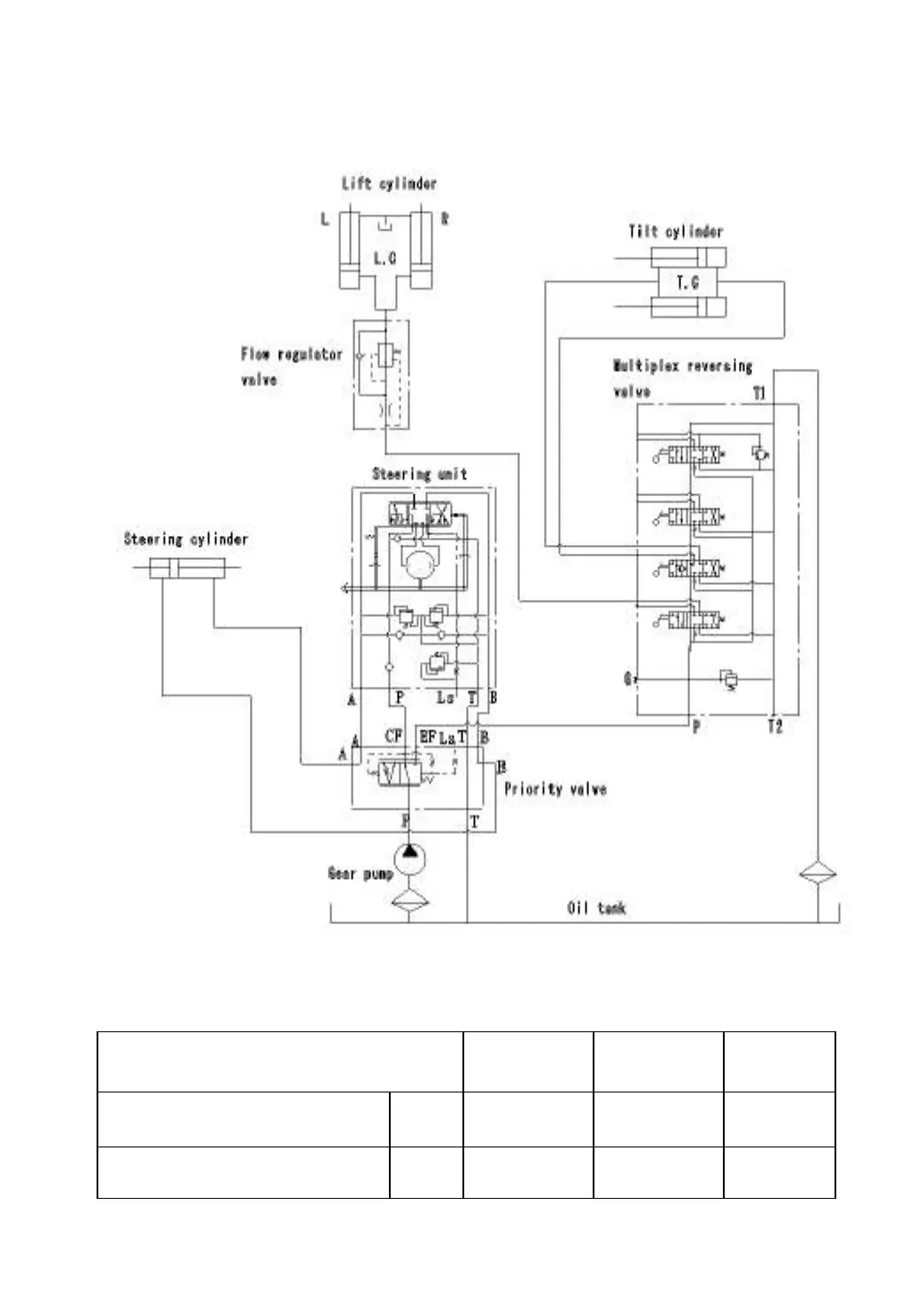

Principle diagram of hydraulic system
Model
CPD10
CPD15
CPD20
CPD25
CPD30
Primary pressure, hydraulic
system P1
Mpa
14.5
17.5
17.5
Steering pressure P2
Mpa
7.5
9
9
