h) Operate lift lever, until indicating middle value between minimum value and
maximum value, save it.
i) Quit the menu.

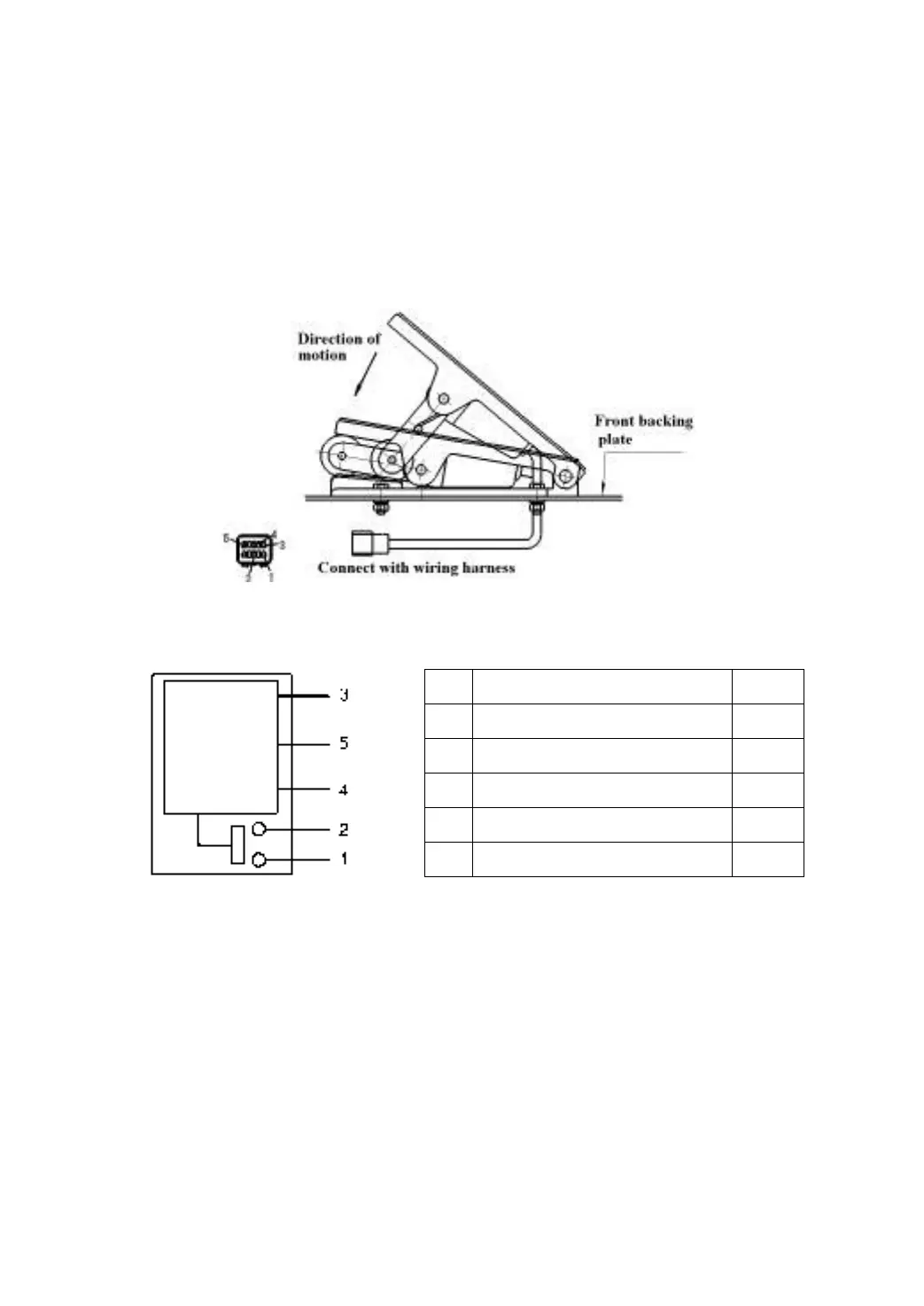

4.5 AC microtron
1. Outline and port function
2. Sketch for connector and port
Accelerator signal: linear ranged from 0.38V～0.42V to 3.9V～4.1V
Switch signal: Non-polarity opening contact. Capacity: 2A/100V
3. Setting for accelerator
a) Install potentiometer on front backing plate, make sure the accelerator pedal on initial
state.
b) Connect PC machine with controller connector.
c) If accelerator connects correctly, the output voltage will change with the stroke of the
pedal.
d) Enter ACCELERATION PEDAL CALIBRATION menu.
Power positive input (12V+)
Power negative input (12V-)
Accelerator signal output
