(3) Make the mast tilt backward when forks are descended to the ground, adjust the
top joint of lift chains and let the tightness of two lift chains be equal. (Fig. 8-7)

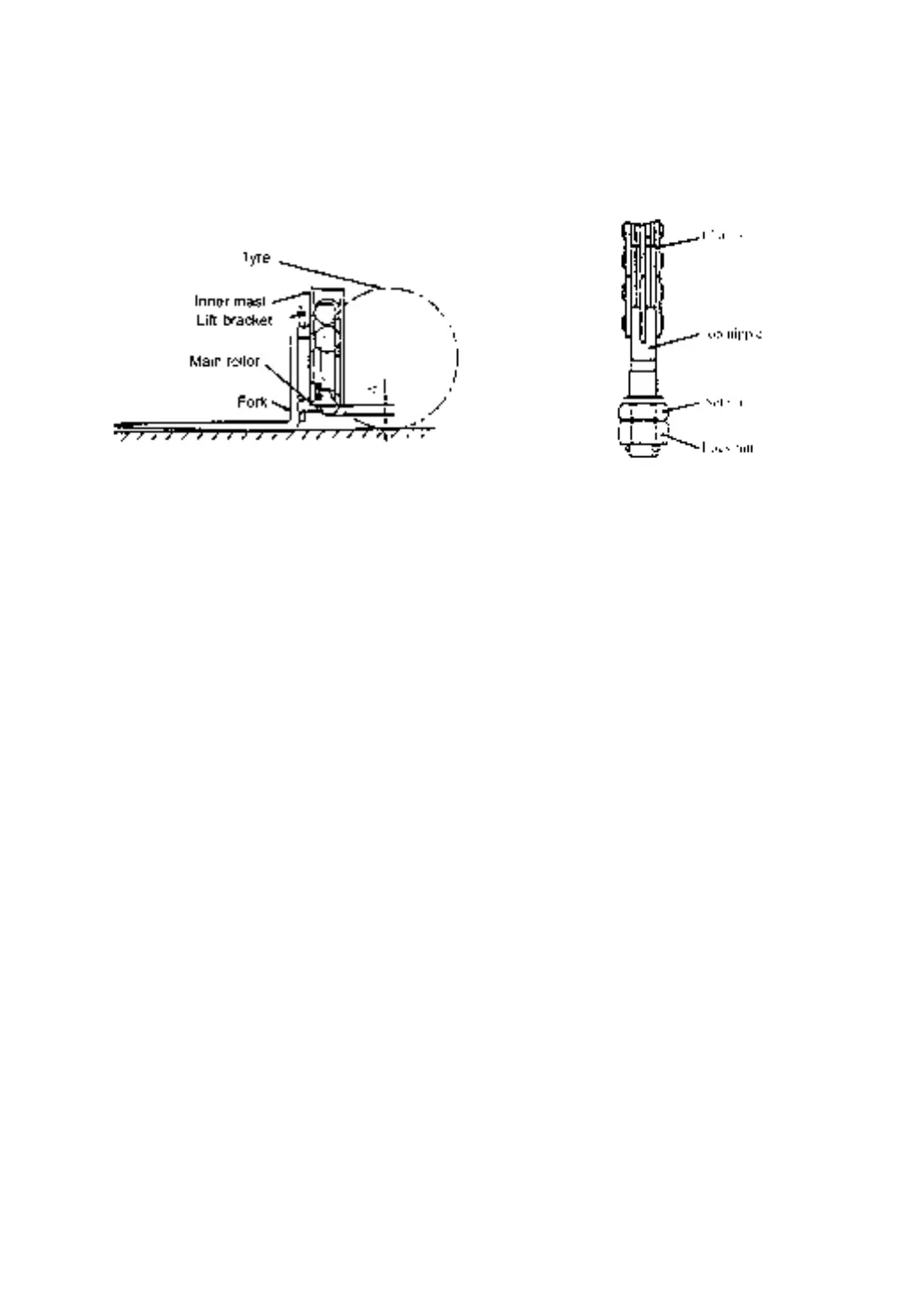

Fig. 8-6 Fig. 8-7
8.2.3 Replacing rollers of the lift bracket
(1) Place a salver on the forks and make the forklift stop on the flat ground.
(2) Make the forks and salver descend to the ground.
(3) Take down the top joint of the chains. And take out chains from sheave.
(4) Lift the inner and outer mast. (Fig.8-8 ①)
(5) The forklift will be reversed when the lift bracket is disengaged from the outer mast.
(Fig. 8-8 ②)
(6) Replace main rollers
·Take apart all the snap rings from the lift bracket and take out main rollers except the
adjust shims.
· Make the new main roller (the same type as the old one) fit on the lift bracket and
fastened with snap ring.
