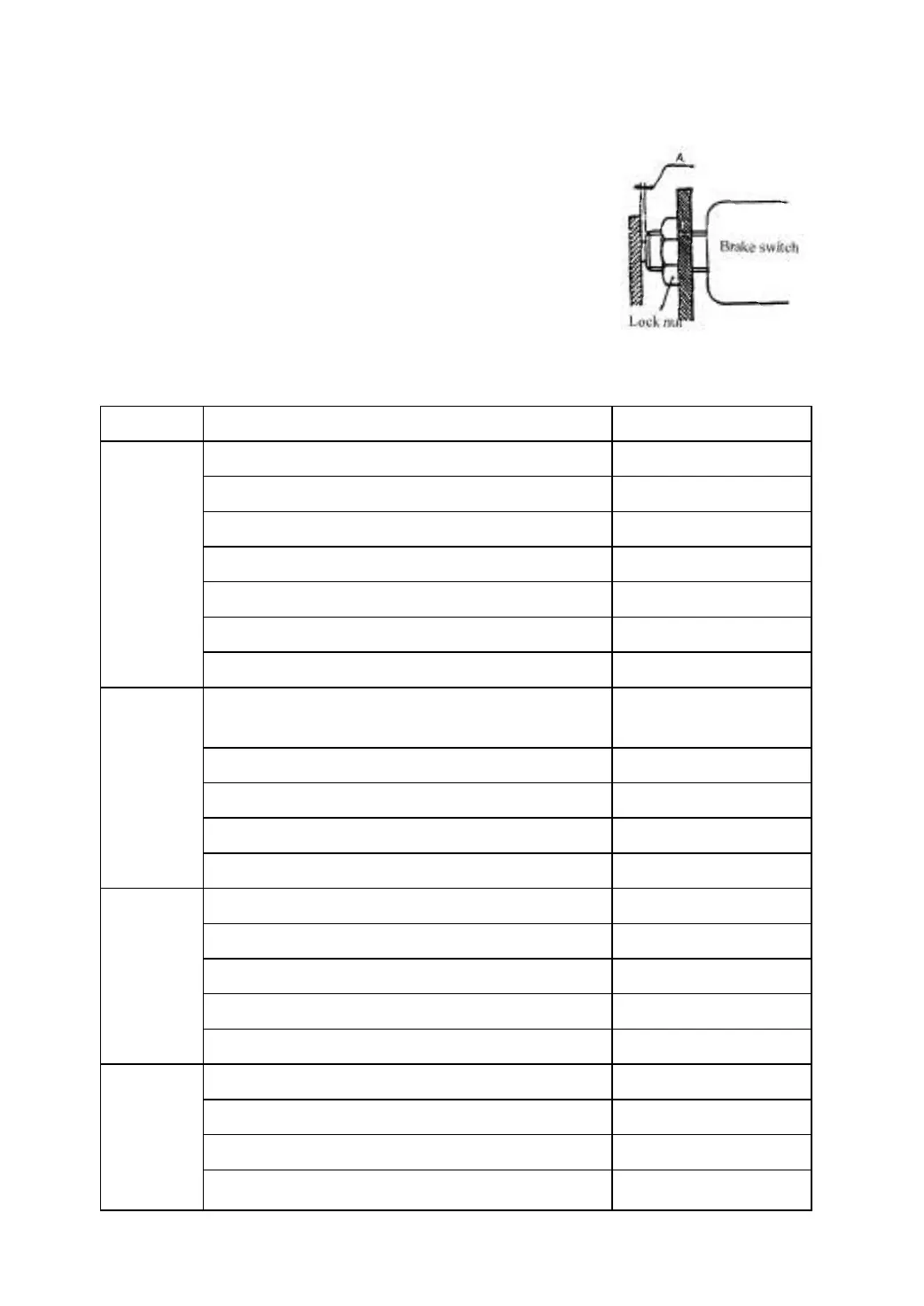

▲ Brake switch adjustment
(1) After you adjust the height of the brake pedal, loose
the lock nut of the brake switch.
(2) Pull the plug out to let the lead separate.
(3) Turn the switch to make the clearance about 1mm.
(4) When you press the brake pedal make sure that the
brake lamps light at the same time.
2.2.6 Wheel brake troubleshooting
Problem
Probable Cause
Remedy
Poor
braking
1.Fluid leaks from brake system
Repair
2.Maladjustment of brake shoe clearance
Adjust the adjuster
3.Brake overheating
Check for dragging
4.Poor contact between drum and friction piece
Readjust
5.Foreign matter adhered on friction piece
Repair or replace
6.Foreign matter mixed in brake fluid
Check brake fluid
7.Maladjustment of brake pedal (inching valve)
Adjust
Noisy
brake
1.Hardened friction piece surface or foreign
matter adhered there
Repair or replace
2.Deformed backing plate or loose bolts
Repair or replace
3.Deformed shoe or incorrect installation
Repair or replace
4.Worn friction piece
Replace
5.Loose wheel bearing
Repair
Uneven
braking
1.Oil-contaminated friction piece
Repair or replace
2.Maladjustment of brake shoe clearance
Adjust the adjuster
3.Malfunction of operating cylinder
Repair or replace
4.Shoe return spring deteriorated
Replace
5.Deflected drum
Repair or replace
Soft or
spongy
brake
1.Oil leaks from brake system
Repair
2.Maladjustment of brake shoe clearance
Adjust the adjuster
3.Air mixed in brake system
Exhaust air
4.Maladjustment of brake pedal
Readjust
