57

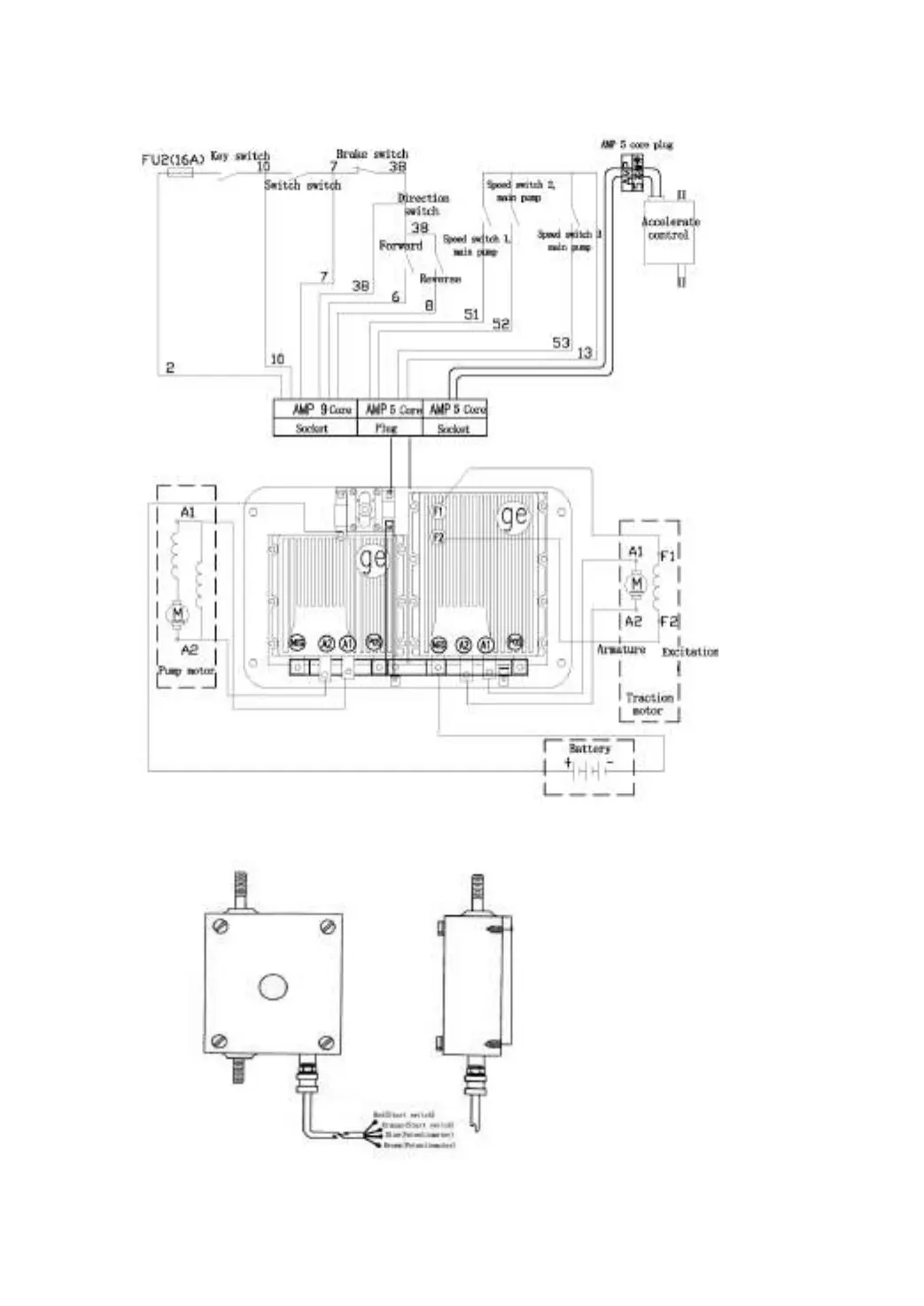

Fig.4-7 Controller assy (DC CPD30)
Red (Start switch)
Orange (Start switch)
Blue (Potentiometer)
Brown (Potentiometer)
Fig.4-8 Accelerator
