SME meter connector

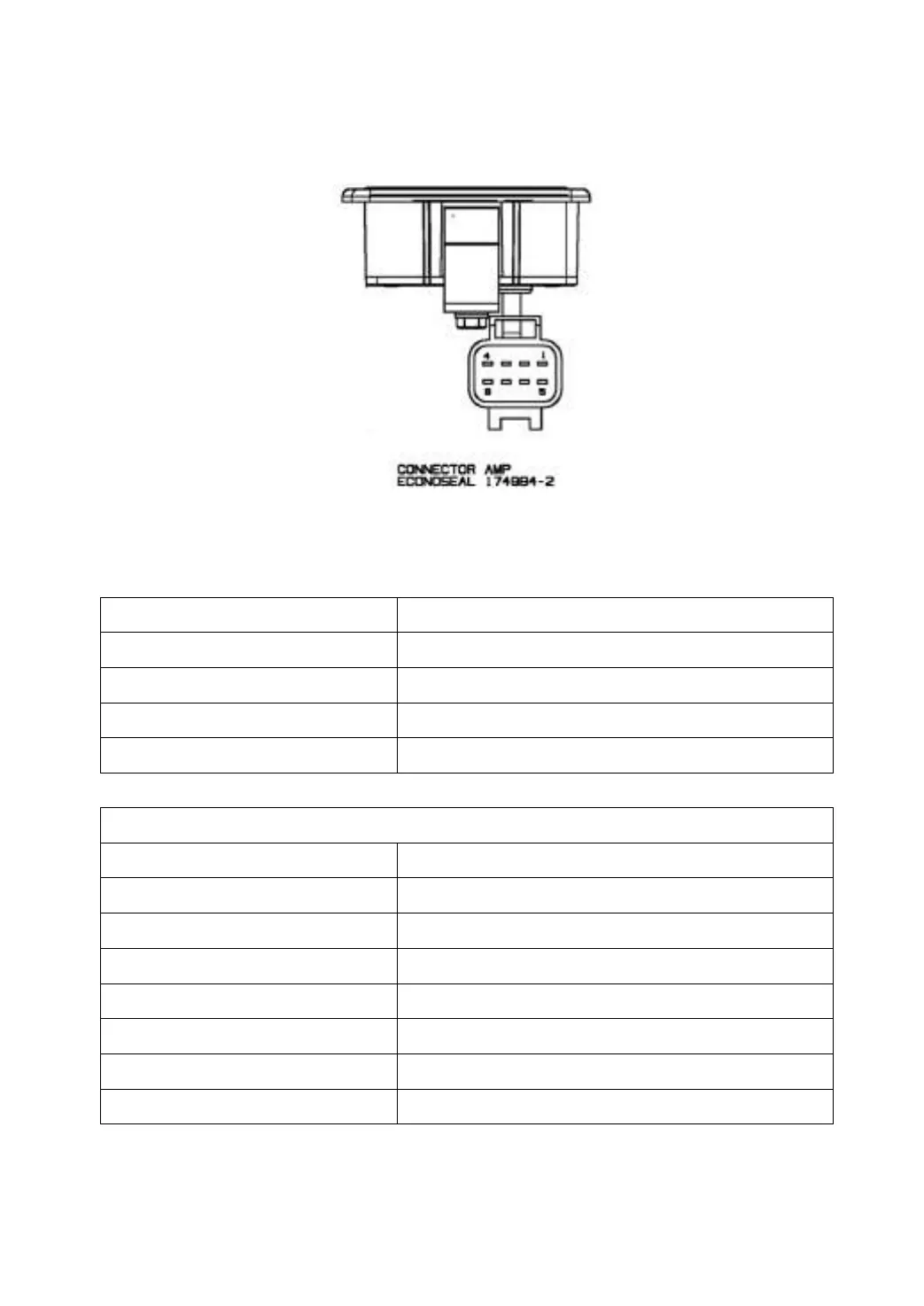

Illustration for SME meter connector
Display type
Specification
Operating voltage
+12V
Supply current
150A MAX.
Operating temperature
-30℃～+50℃
Protection
IP54
Connections lin-bus
1
Input1
2
Input2
3
Input3
4
Input4
5
Lin-bus 19.2 KBIT/S
6
/
7
GND
8
+12V
