Barco CX-30 User Manual

R5900098 /10 CX-3024
3.1 Activating the Base Unit
About power mode
The Base Unit is powered via an external power adapter. Once connected, the Base Unit is automatically
switched in standby mode. For more information about power connection, see CX-30's installation manual.
Standby button

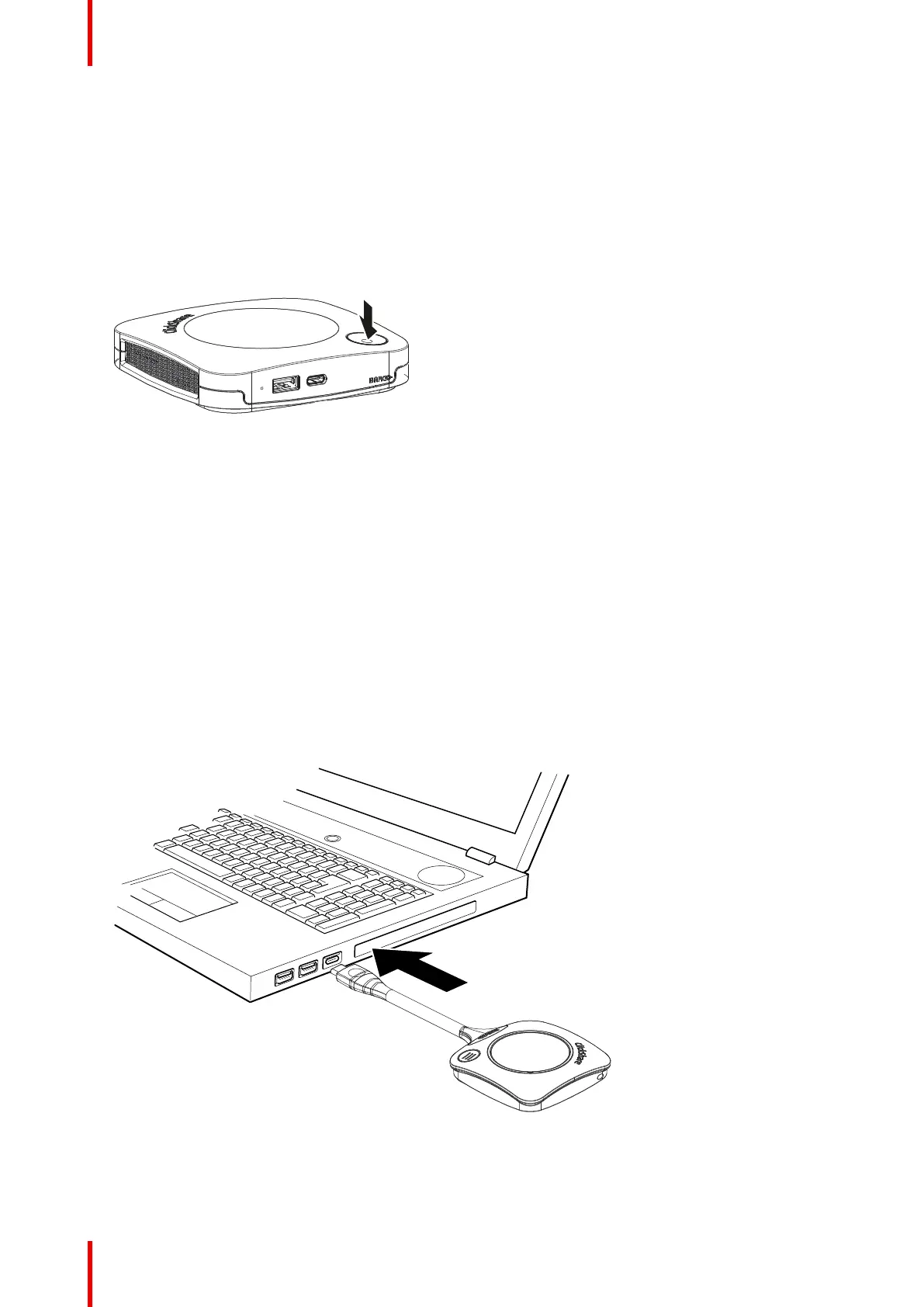

1. Push the button shortly.
Image 3–1
When the Base Unit was on, it goes to standby.
When the Base Unit was in standby, it starts up.
3.2 Basic Use, with Button
Basic functionality
When entering a meeting room equipped with ClickShare and if the display is not in screensaver mode, the
ClickShare wallpaper is shown on the display. The content of the wallpaper depends on the setup. Connected
peripherals to the Base Unit and their status are indicated on the wallpaper.
Starting to use ClickShare is now very simple.
To start using CX-30 with a Button
1. Take a Button and insert the Button into a USB port of your laptop. Depending on the USB port on your
laptop a convertor must be used. This convertor is not delivered by Barco.
Image 3–2
In the meanwhile
The white ring on the Button is filling up. When totally filled up it goes to static white and is ready to share
or it starts blinking to indicate that you have to start clickshare.exe on your computer.
Getting started

Barco CX-30 Specifications

General

Warranty period	1 year(s)
Sustainability compliance	Yes
Sustainability certificates	CE, Federal Communications Commission (FCC)
Form factor	Desktop
Product color	Black
Cable lock slot type	Kensington
Input voltage	110 - 220 V
Power source type	AC
Power consumption (max)	24 W
Power consumption (typical)	10 W
Mac operating systems supported	Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina
Mobile operating systems supported	Android 9.0, iOS 12, iOS 13
Windows operating systems supported	Windows 10, Windows 8, Windows 8.1
Supported graphics resolutions	3840 x 2160
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Storage relative humidity (H-H)	0 - 90 %
Operating relative humidity (H-H)	0 - 85 %
Frequency band	2.4, 5 GHz
Wi-Fi standards	802.11a, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Top Wi-Fi standard	Wi-Fi 5 (802.11ac)
Security algorithms	WPA2-PSK
Interface	HDMI
HDMI version	1.4b
Number of HDMI outputs	1

Weight and Dimensions

Width	135 mm
Height	34 mm
Weight	900 g
