10. Removal and installation of the projector covers
2. R emov e the rear cove r of the projector d oing the following:
a) gen tly p ull out the top covers of the rear c over (2).
b) then move the rear cover away from the projector.
10.3 Removal of the input cover
Necessary tools
Flat screwdriver
How to remove
1. R elease both captive screws at the top of the input cover using a flat screw driver.

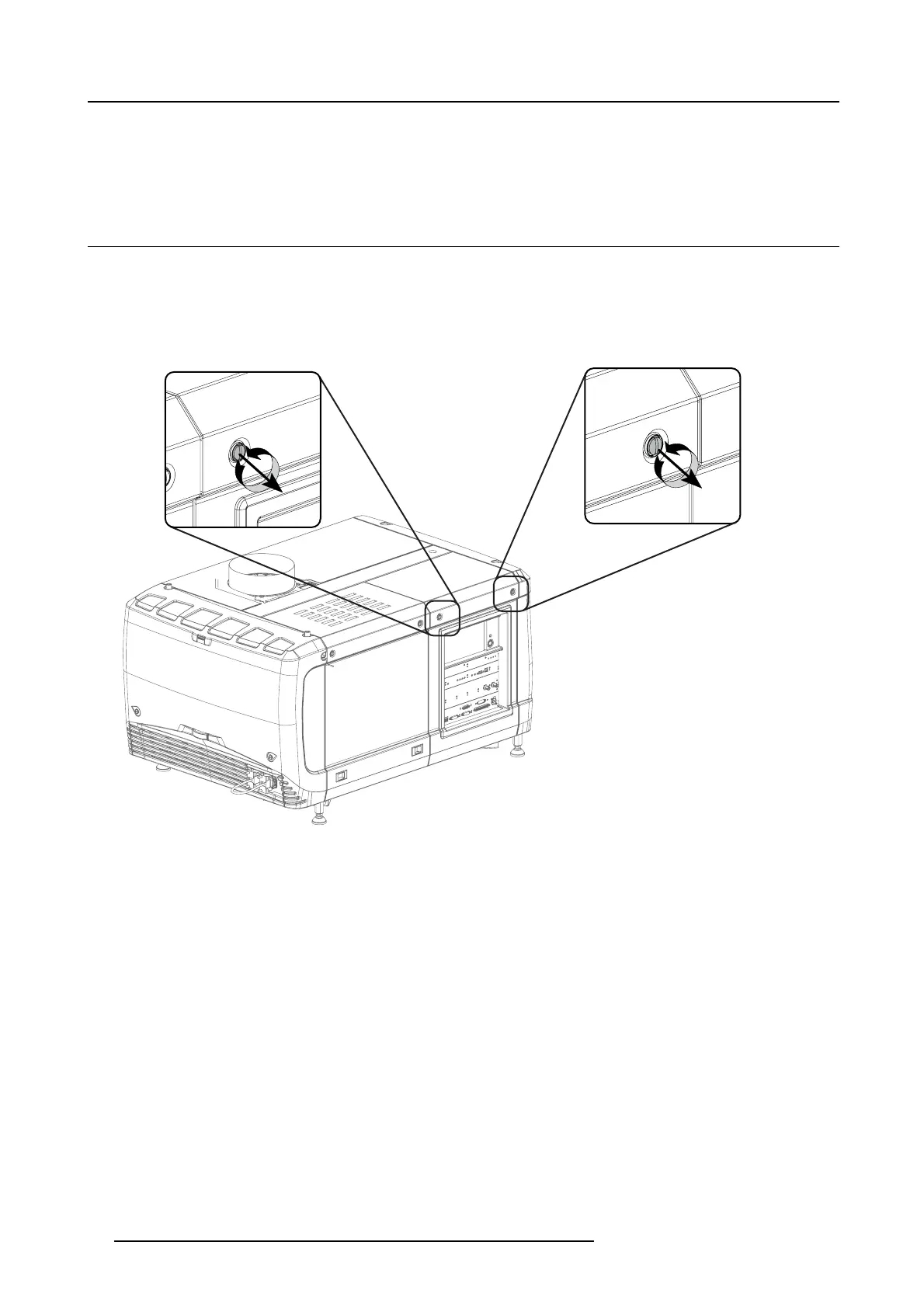

Image 10-6
Input cover, fixation
2. R emov e the input cover as follow:
a) P ull the bo ttom side of the c over to you until the cover is unlocked.
b) S lide the full cover away from the projector.
84
R5905067 DPXK-19B/23B/P 17/09/2012
