5. Lenses & lens holder

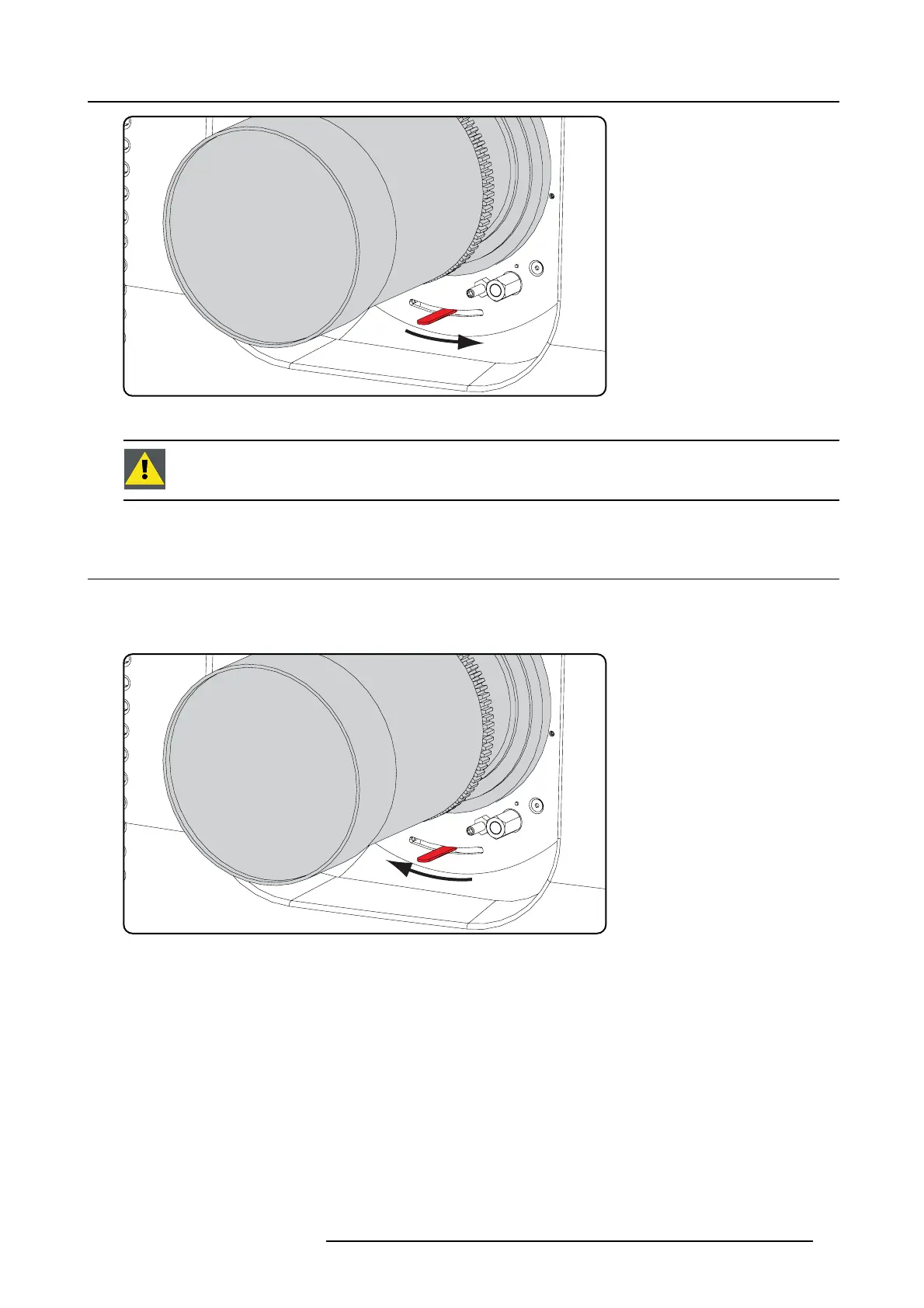

Image 5-15
Fix lens
CAUTION: Never transport the projector with a Len s mounted in the Lens Holder. Always remove the Lens
before transp orting the p rojector. Neg lecting this can d amag e the Lens Holder and Prism.
5.4 Lens removal
How to remove a lens?
1. Support the lens with one hand while you unlock the lens holder by sliding the lock handle towards the “unlocked” position as
illustrated.
Image 5-16
Unlock lens
2. Gently pull the lens out of the lens holder.
R5905067 DPXK-19B/23B/P 17/09/2012
49
