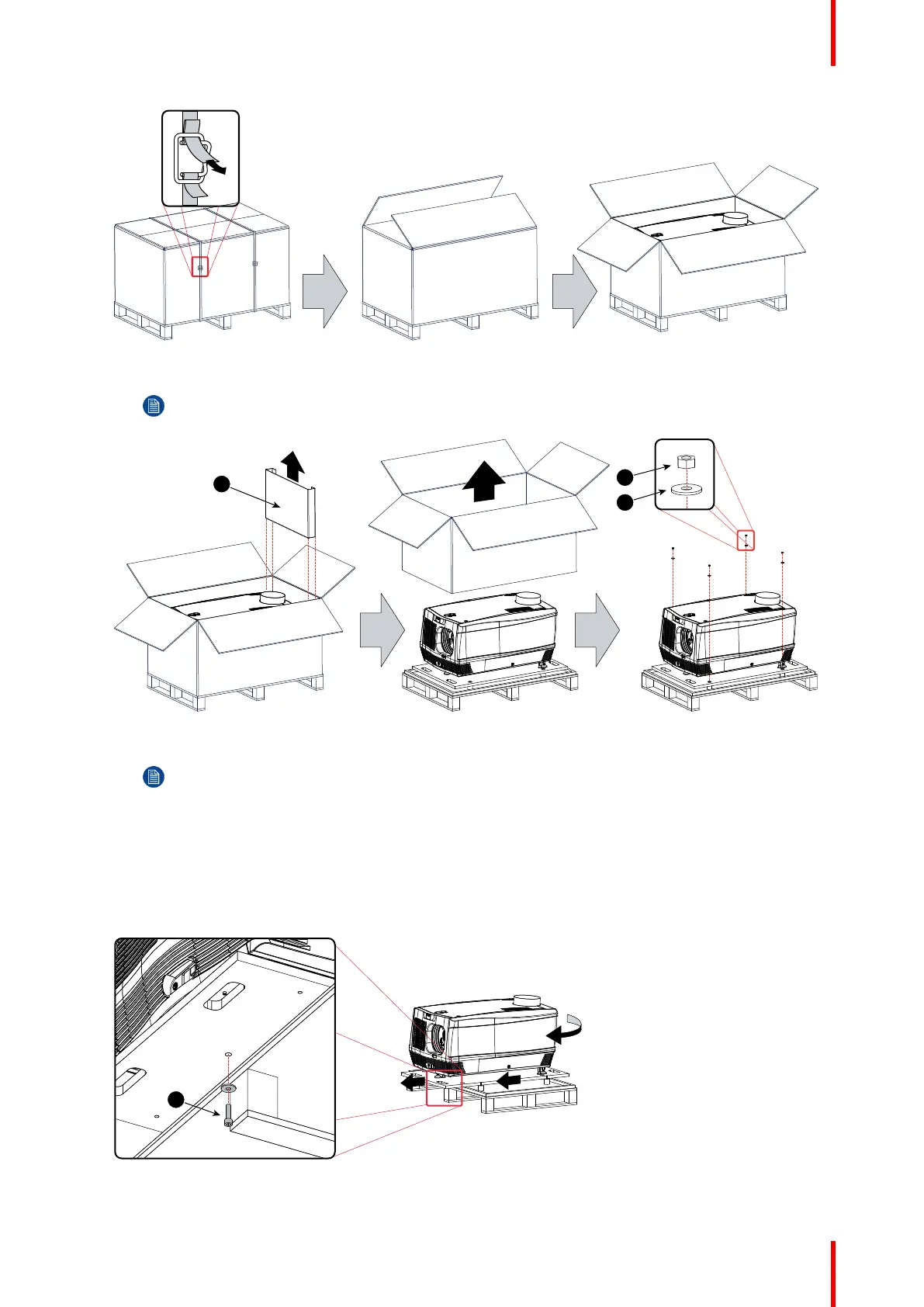

Image 2–2
2. Remove the smaller carton box (reference 1) as illustrated.
Note: The smaller carton box contains the manual.
1
2
3
Image 2–3
3. Remove the carton box and the foam around the projector. See Image 2–3.
Note: The projector is still attached to a wooden plate, which is secured to the below pallet.
4. Loosen the four nuts (reference 2 Image 2–3) which secure the pallet as illustrated. Use a 13 mm open
end wrench.
5. Rotate the wooden support plate with projector 90° and slide the front side over the edge of the pallet until
the fixation screw (reference 4) is visible as illustrated.
6. Remove the hexagon socket head cap screw (reference 4). Use an 8 mm Allen wrench.
90°
4
Image 2–4
