Order No
Description
Throw Ratio
R9832778 G lens - Ultra Long Zoom 2.90 - 5.50 : 1 (WUXGA)
R9801785 G lens - Ultra Short Throw (*)
(*) This lens has special
installation instructions. See
separated lens installation
manual (available on the Barco
website)
0.361 : 1 (WUXGA)

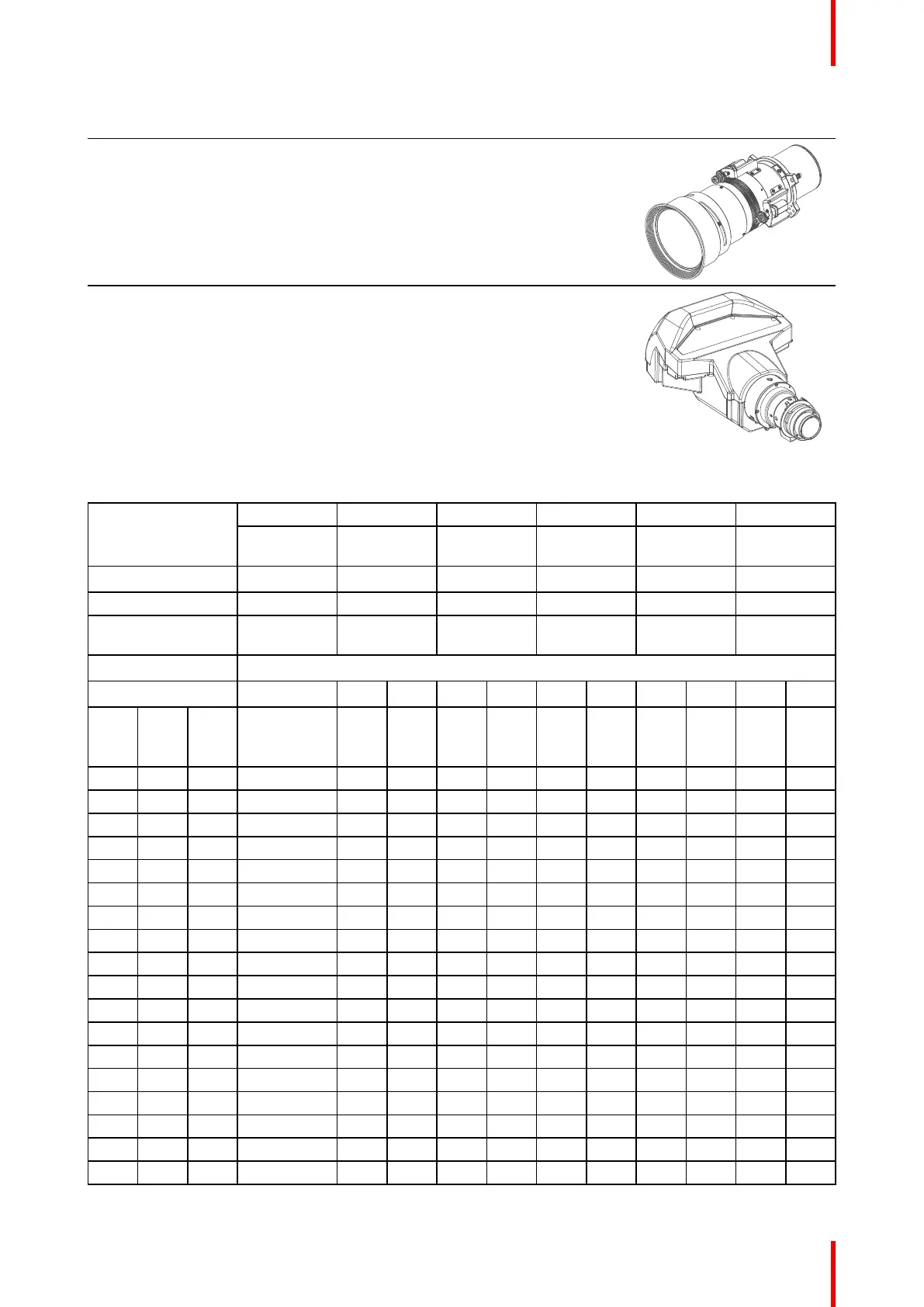

Lens specification table
Projection Lens
R98017851 R9832755 R9801784 R9832756 R9832778 R9832781
Ultra Short
Throw
Wide Zoom Standard
Long Zoom
Ultra Long
Zoom
Short
Throw
Throw Ratio 0.361 (120") 0.95-1.22 1.22-1.52 1.52-2.92 2.90-5.50 0.75-0.95
Zoom Ratio NA 1.28X 1.25X 1.9X 1.9X 1.26X
Throw Distance 0.96~2,64m 1.02~10.23-
m
1.31~9.82m 1.64~18.87-
m
3.12~35.54-
m
0.81~10.23-
m
Screen size Projection distance (m)
Throw Ratio 0.361 (120") 0.95 1.22 1.22 1.53 1.52 2.92 2.9 5.5 0.75 0.95
Diag-
onal
(inch)
Heig-
ht
(m)
Width
(m)
(m) Min
(m)
Max
(m)
Min
(m)
Max
(m)
Min
(m)
Max
(m)
Min
(m)
Max
(m)
Min
(m)
Max
(m)
50 0.67 1.08 NA 1.02 1.31 1.31 1.64 1.64 3.14 3.12 5.92 0.81 1.02
60 0.81 1.29 NA 1.23 1.58 1.58 1.96 1.96 3.77 3.75 7.11 0.97 1.23
70 0.94 1.51 NA 1.43 1.84 1.84 2.29 2.29 4.40 4.37 8.29 1.13 1.43
80 1.08 1.72 NA 1.64 2.10 2.10 2.62 2.62 5.03 5.00 9.48 1.29 1.64
90 1.21 1.94 NA 1.84 2.36 2.36 2.95 2.95 5.66 5.62 10.66 1.45 1.84
100 1.35 2.15 NA 2.05 2.63 2.63 3.27 3.27 6.29 6.25 11.85 1.62 2.05
110 1.48 2.37 NA 2.25 2.89 2.89 3.60 3.60 6.92 6.87 13.03 1.78 2.25
120 1.62 2.58 0.93 2.46 3.15 3.15 3.92 3.93 7.55 7.50 14.22 1.94 2.46
130 1.75 2.80 1.01 2.66 3.42 3.42 4.26 4.27 8.18 8.12 15.40 2.10 2.66
140 1.88 3.02 1.09 2.86 3.68 3.68 4.58 4.58 8.81 8.74 16.59 2.26 2.86
150 2.02 3.23 1.17 3.07 3.94 3.94 4.91 4.91 9.43 9.37 17.77 2.42 3.07
160 2.15 3.45 1.24 3.27 4.20 4.20 5.24 5.24 10.06 9.99 18.95 2.58 3.27
170 2.29 3.66 1.32 3.48 4.47 4.47 5.57 5.57 10.69 10.62 20.14 2.75 3.48
180 2.42 3.88 1.40 3.89 4.73 4.73 5.89 5.89 11.32 11.24 21.32 2.91 3.68
190 2.56 4.09 1.48 3.92 4.99 4.99 6.22 6.22 11.95 11.87 22.51 3.07 3.89
200 2.69 4.31 1.56 4.09 5.26 5.26 6.55 6.55 12.58 12.49 23.69 3.23 4.09
250 3.37 5.38 1.94 5.12 6.57 6.57 8.18 8.18 15.72 15.62 29.62 4.04 5.12
300 4.04 6.46 2.33 6.14 7.88 7.88 9.82 9.82 18.87 18.74 35.54 4.85 6.14
