4.1 Adjusting the projector’s position
Positioning the projector
To determine where to position the projector, consider the size and shape of your screen, the location of your
power outlets, and the distance between the projector and the rest of your equipment. Here are some general
guidelines:
• Position the projector on a flat surface at a right angle to the screen.
• Position the projector to the desired distance from the screen. The distance between the lens and the
screen, the zoom settings, and the video format determine the size of the projected image. For projection
distances of each lens, see chapter “Lenses”, page 13.

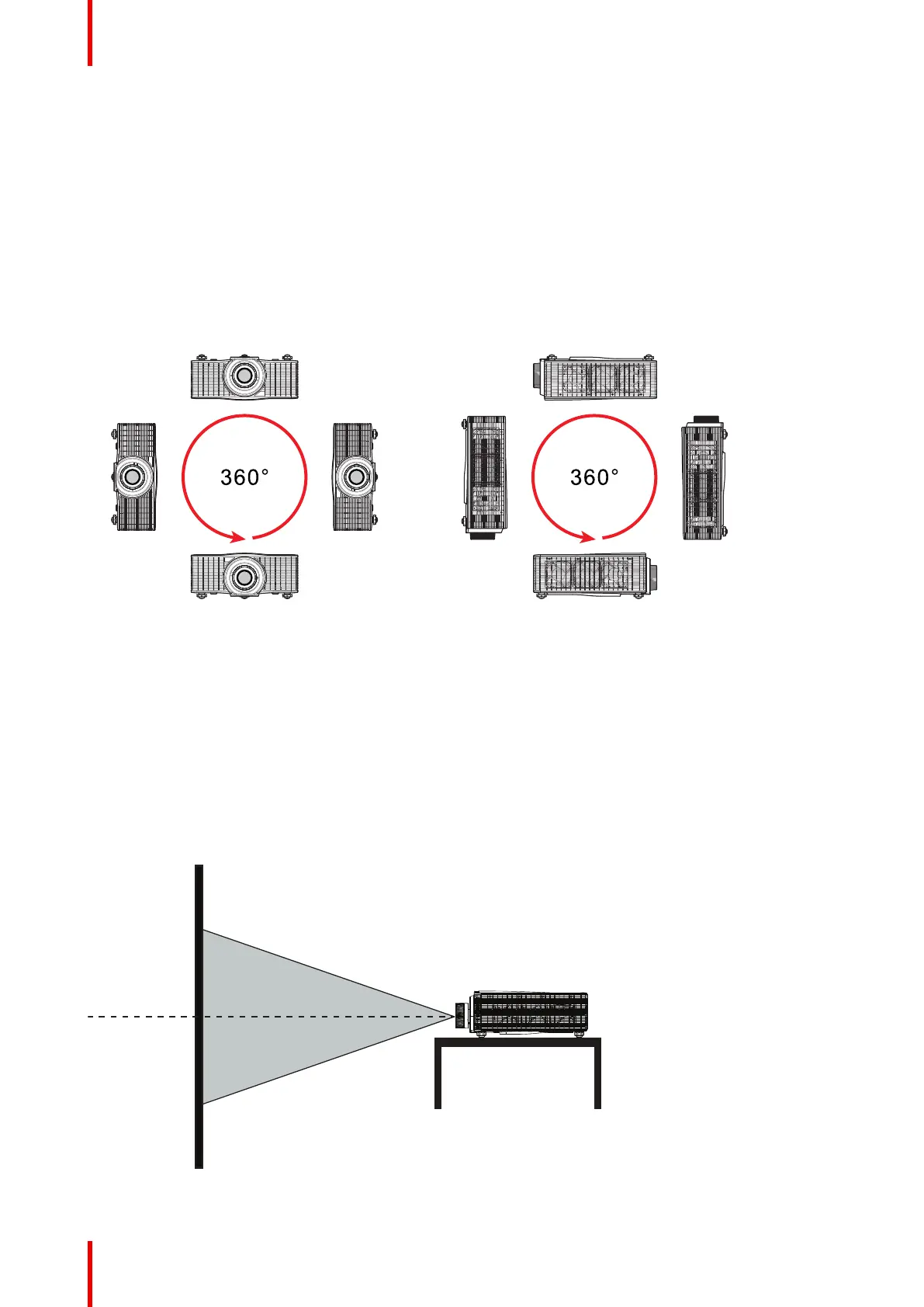

• 360 degree free orientation installation:
Image 4–1
4.2 Ajusting the lens offset
Overview
Adjusting the lens position to determine the image position on the screen. The veritcal lens offset (shift) range
for G62 projector is +/-50%, and the horizontal lens offset (shift) range is +/-15%. The offset range is
calculated in accordance with industry standards, with which the image offset is calculated by full image size.
Please refer below for the image offset (shift) range for G62 projectors.
Vertical Image Offset: 0%
Image 4–2
Adjusting the projected image
