K5902108-04 Coronis Fusion 4MP / 6MP10
2.1 Removing the covers

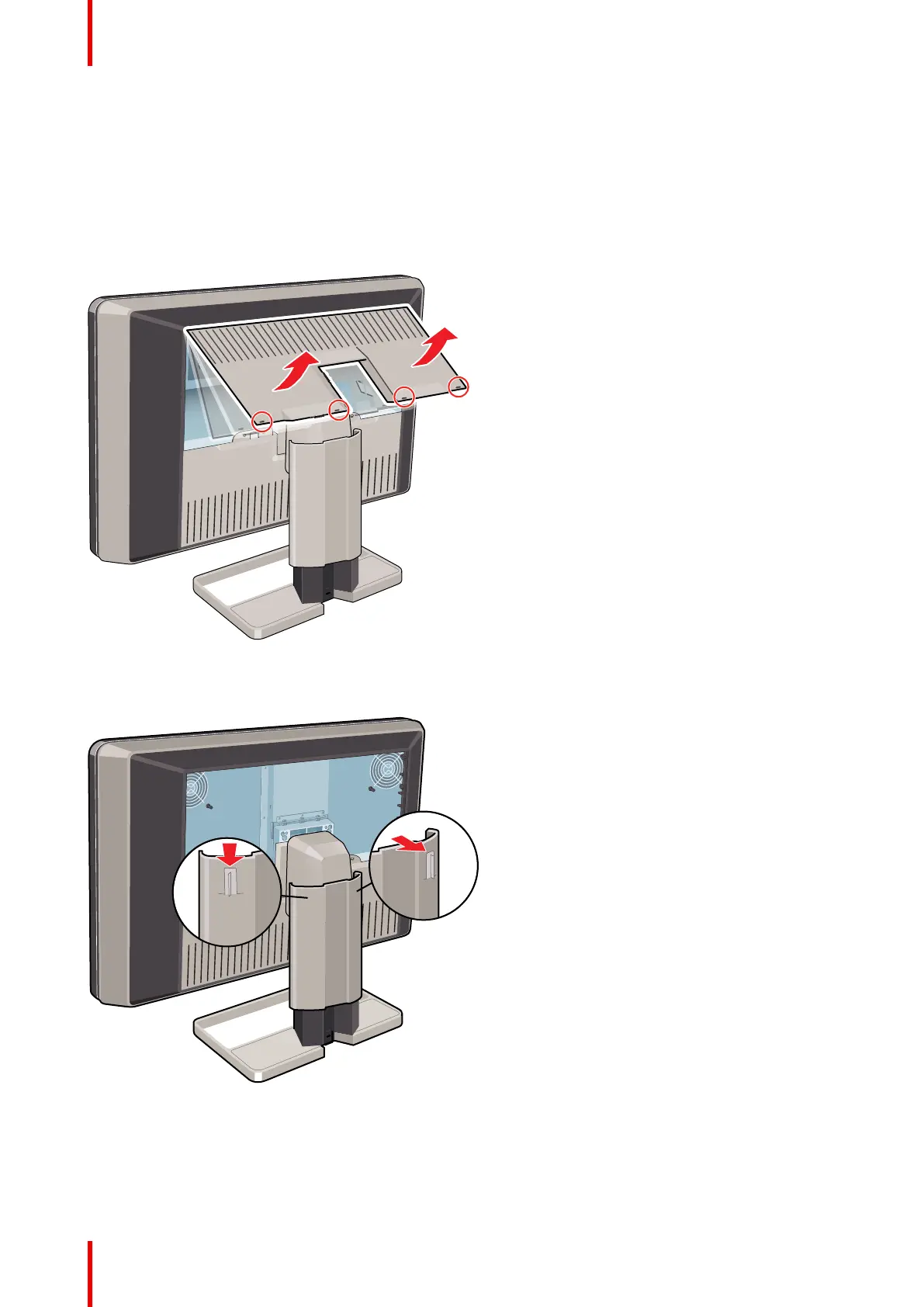

To remove the connector compartment cover
1. Gently lift the clips at one of the handles of the connector compartment cover to release that side of the cover.
2. Do the same at the other side of the cover.
3. Remove the cover.
To remove the display stand cover
1. Gently press and hold the clips at the inside top of the cover.
2. Slide the cover upwards while holding the clips pressed.
Display installation
