2. Parts, controls and connectors
Connector compartment cover open
1
2
3 4
5
6
7

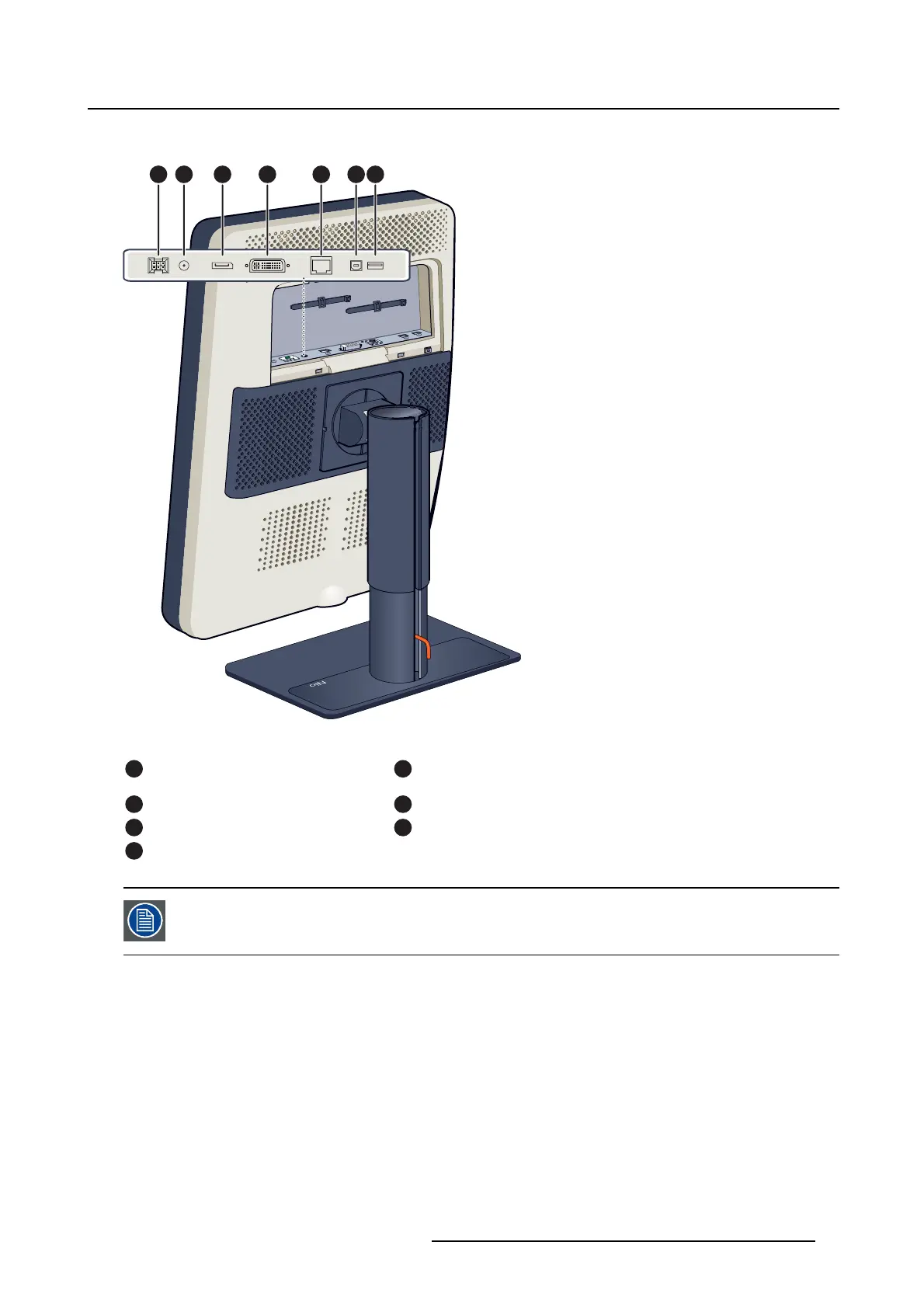

Image 2-3
Rear view with open connector compartment cover.
1
+24 VDC power input
5
Ethernet connector (see note
below)
2
+5 VDC, 0.5A power output
6
USB upstream connector
3
DisplayPort video input
7
USB downstream connector
4
DVI video input
The Ethernet connection is used for maintenance purposes and is not supported for
user application.
