4.5 Rack mounting
About rack mounting
For meeting rooms with a dedicated AV rack, use the included brackets to mount the CSE-800 Base Unit. This
integrates the CSE-800 seamlessly into the room’s existing high-end AV installation.
Necessary free space in the rack is 2U.
Required tools
• Torx T10 screwdriver
• Additional screwdriver that matches the mounting screws
Required parts
• 2 mounting brackets with fixation screws (included in the CSE-800 box)
• 2 mounting brackets covers (included in the CSE-800 box)
• 2 rack mounting screws (not included)
How to install
1. Clips the plastic cover (1) on each bracket (2).

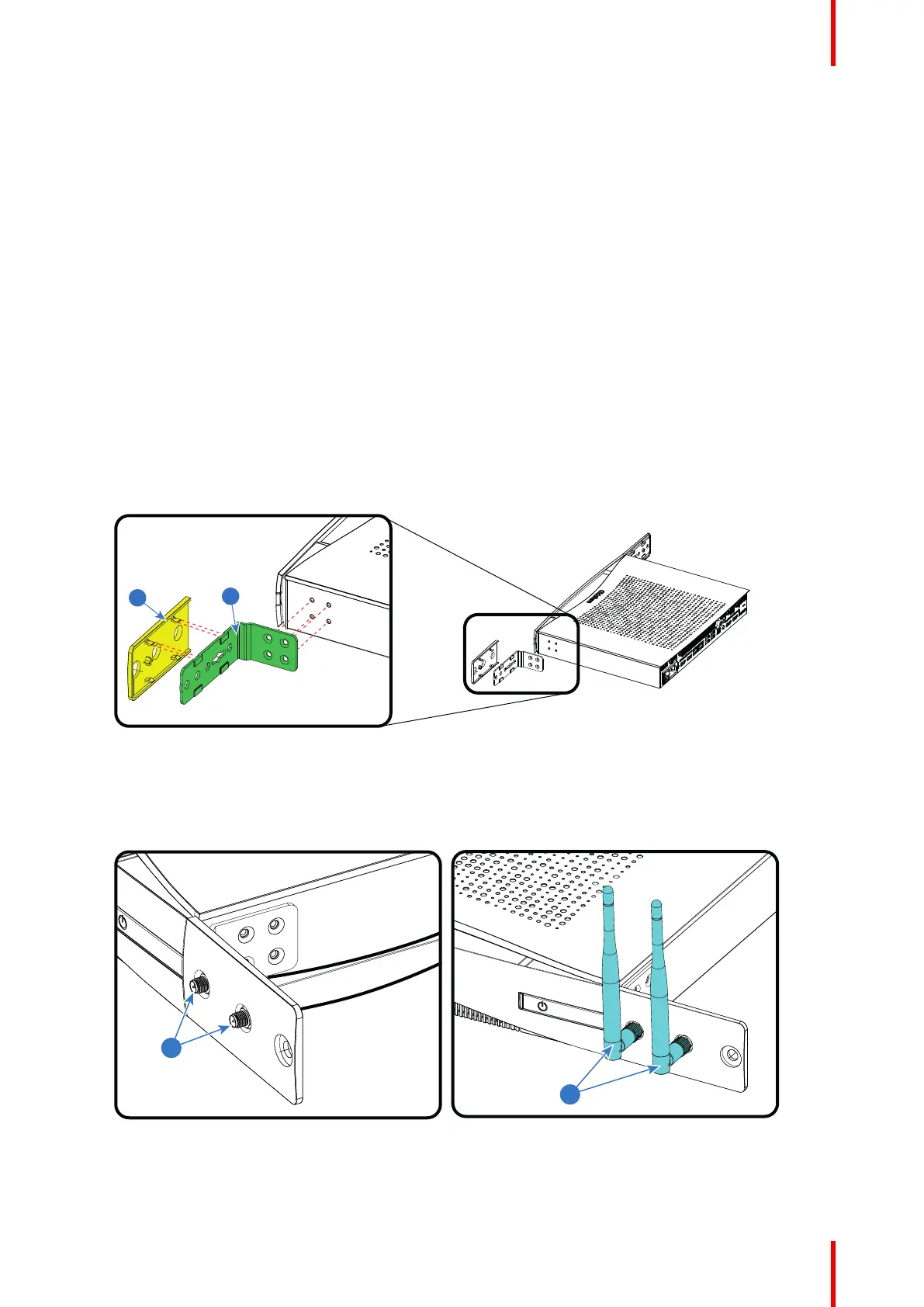

Image 4–3 Mount brackets
2. Place the bracket on fixation holes as indicated and drive in the 4 fixation screws.
3. Repeat for the other side.
4. Insert the antenna extension cables into the provided holes (3) and turn on the antennas (4).
Image 4–4 Mount antennas
5. Repeat for the other side.
6. Mount the Base Unit into a rack. Use 2 mounting screws.
