Bard MC5300 - MC5000 Replacement Parts List

Manual 2100-746D
Page 59 of 59

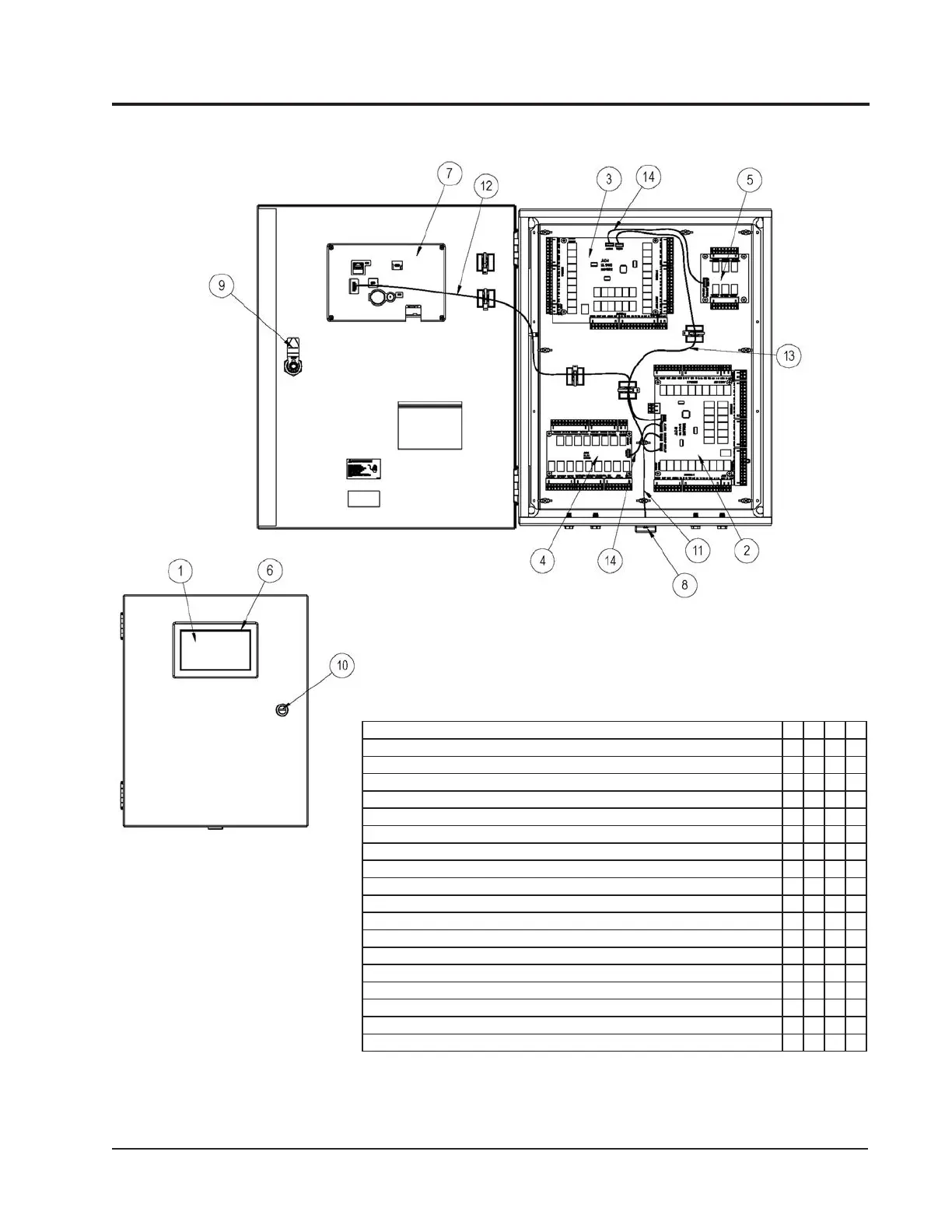

Dwg. No. Part No. Description
1 S8612-065 Display Board w/Ethernet
1
X X X X
2 8612-066 Main I-O Board X X X X
3 8612-067 Secondary I-O Board X X
4 8612-068 Main Alarm Board X X
5 8612-069 Secondary Alarm Board X
6 8301-092 Bezel Front X X X X
7 8301-093 Bezel Back X X X X
8 8301-094 Cover for Temperature/Humidity Sensor X X X X
9 1171-073 1/4 Turn Latch Cam X X X X
10 1171-074 1/4 Turn Latch X X X X
11 8408-059 Temperature/Humidity Sensor w/11" Cable X X X X
12 3020-026 36" Cable for Display to I-O X X X X
13 3020-024 18" Cable for Secondary I-O X X
14 3020-025 11" Cable for Alarm Board X 2
NS 8611-269 Snap-in Standoff - Nylon (PCB Retainer) 4 8 12 16
NS 8611-262 3-Pole Card Slot Terminal Block 3 4 6 7
NS 8611-263 9-Pole Card Slot Terminal Block 3 7 6 10
NS 8611-264 12-Pole Card Slot Terminal Block 4 5 7 8
NS 8301-100 MicroSD Card X X X X
MC5300-C MC5300-BC MC5600-C MC5600-BC
1
Batteries for control boards are eld supplied (supplier part number CR2032).
NS = Not Shown
MC5000 SERIES CONTROLLER REPLACEMENT PARTS LIST
