Instructions for Use
Barkey S-line
• device does not warm correctly (shown by optical and acoustic alarms)
• yellow alarm lamps or acoustic alarm are activated
4.2.1 Fitting the device
Fasten the Barkey S-line to an infusion stand.
The fastening clamp for fitting the device is on the back of the device.
The vertical fastening slot for the fastening device enables the device to be fitted to an infusion
stand or other vertical fastening elements.

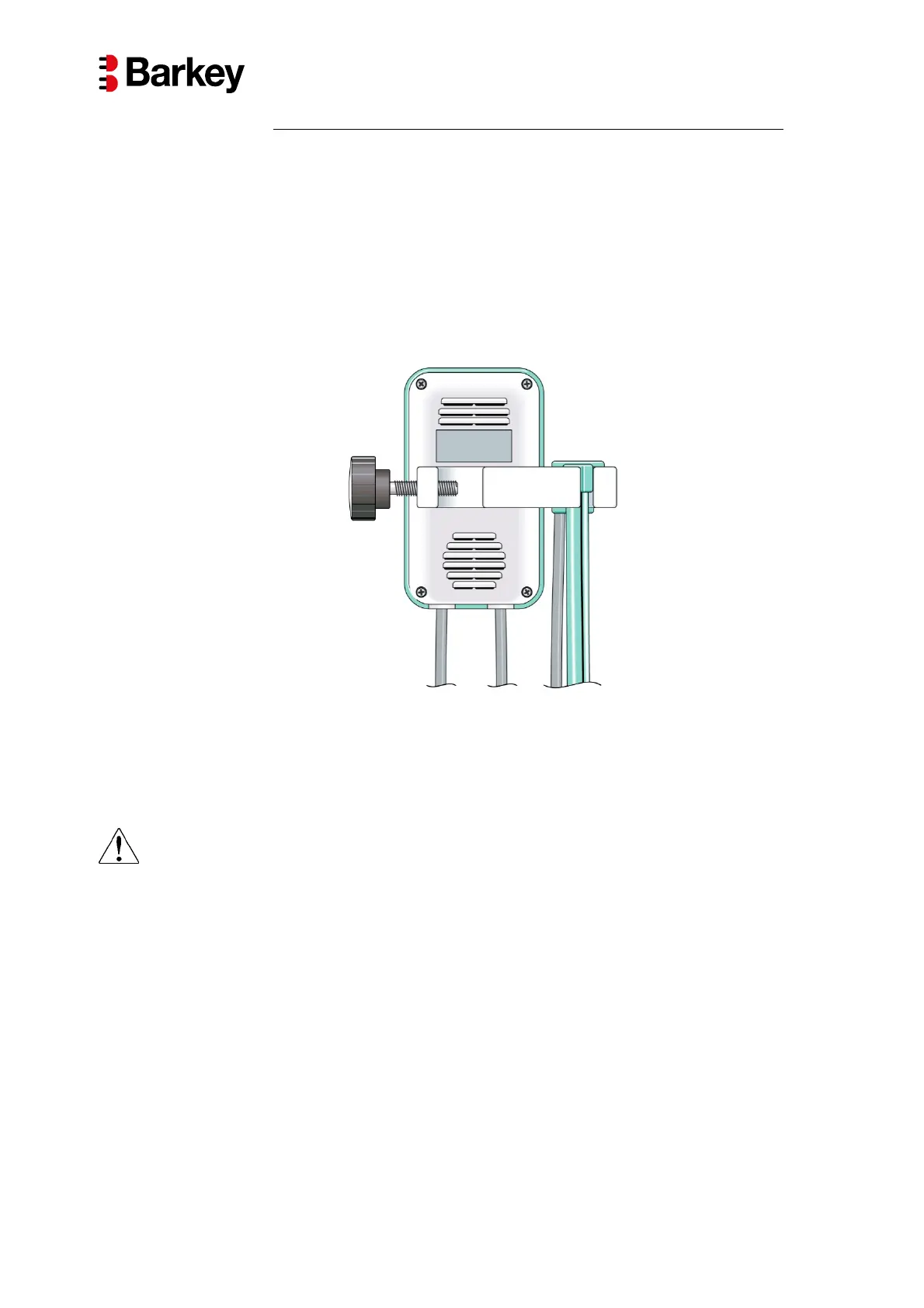

Fig. 5: Fastening clamp on the back of the device
WARNING
When installing/fastening the Barkey S-line insure that the infusion stand has ade-
quate bearing capacity and stability.
