BARKO LOADERS 295 - Page 47

page 47
295 AC
800-00158

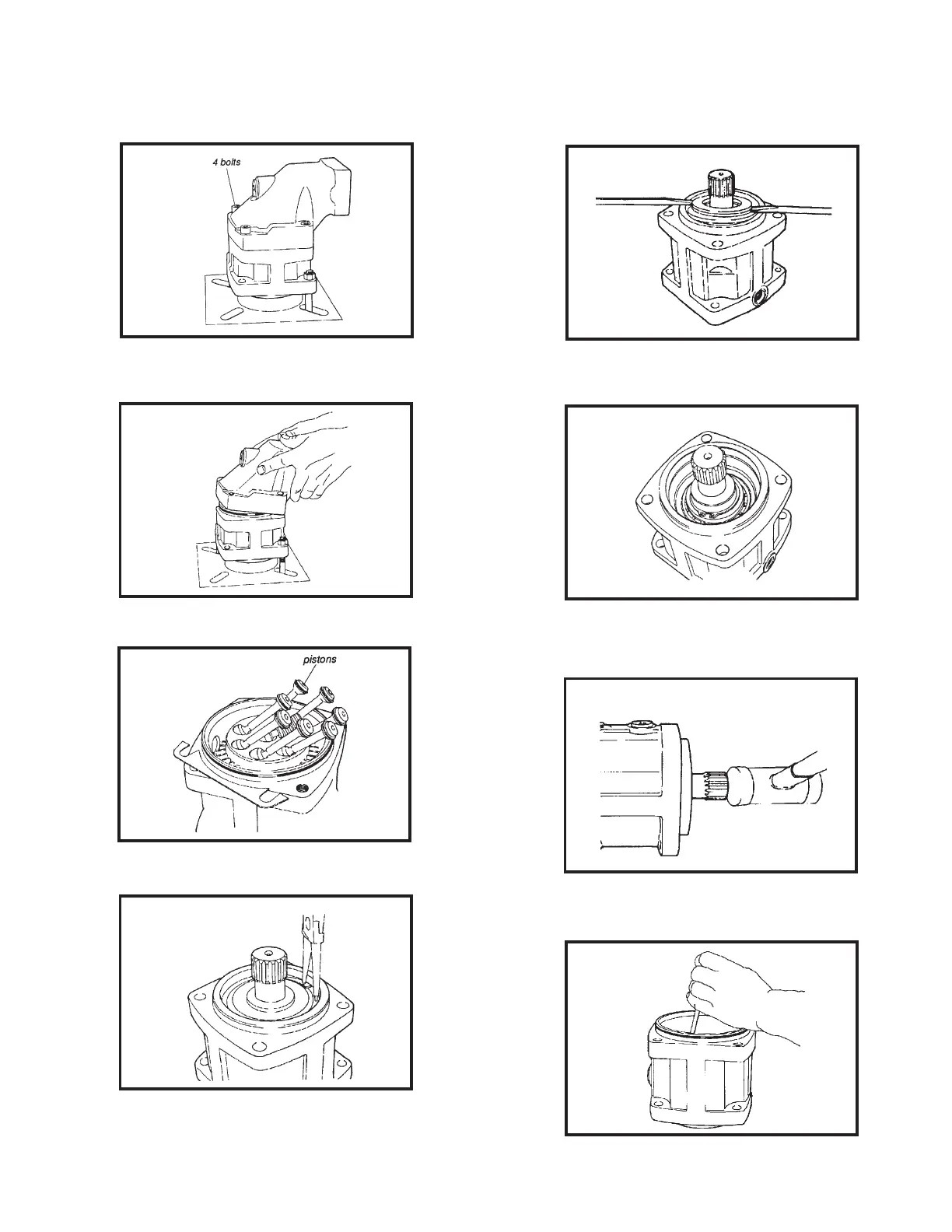

DISASSEMBLY
Step 5
Step 6
Loosen the seal carrier using two screwdrivers.
Loosen the retaining ring holding the bearing
and bearing play adjustment washer.
Step 7
Push out the shaft with a press or a plastic
mallet.
Step 8
If it is necessary to remove the bearing
races, use a drift or a press.
Step 1
Put the unit in a bench with a hole or place it on
a fixture for assembly. Loosen the four bolts.
Step 2
Lift off the housing.
Step 3
Lift out the pistons.
Turn the bearing housing upside down and
loosen the retaining ring holding the seal
ring carrier.
Step 4
F12 SWING MOTOR MAINTENANCE CONTINUED...
