BARKO LOADERS 295 - F12 Swing Motor Maintenance

page 46
295 AC
800-00158
F12 SWING MOTOR MAINTENANCE
ITEM NO. DESCRIPTION QTY.
1 ASSEMBLY, barrel housing 1
2 SCREW, set 1
3 VALVE PLATE 1
4 WASHER, seal 1
5 BEARING HOUSING 1
6 O-RING 1
7 O-RING 1
8 O-RING 1
9 SEAL CARRIER 1
10 SHAFT SEAL 1
11 RETAINING RING 1
12 BLEEDER PLUG 1
13 WASHER, seal 1
14 SHAFT 1
15 FLAT KEY 1
16 CYLINDER BARREL 1
17 NEEDLE BEARING 2
18 BARREL SUPPORT 1
19 ASSEMBLY, piston 7
20 PISTON RING 21
21 GUIDE PIN 1
22 RING GEAR 1
23 TAPERED ROLLER BEARING 1
24 CYLINDER BEARING 1
25 WASHER, spacer 1
26 WASHER, spacer 1
27 RETAINING RING 1
28 SHIM 2
29 SCREW, hex socket 4
1
3
14
15
16
17
18
19
20
21
22
23
24
6
25
26
27
28
12
13
29
4
11
9
10
5

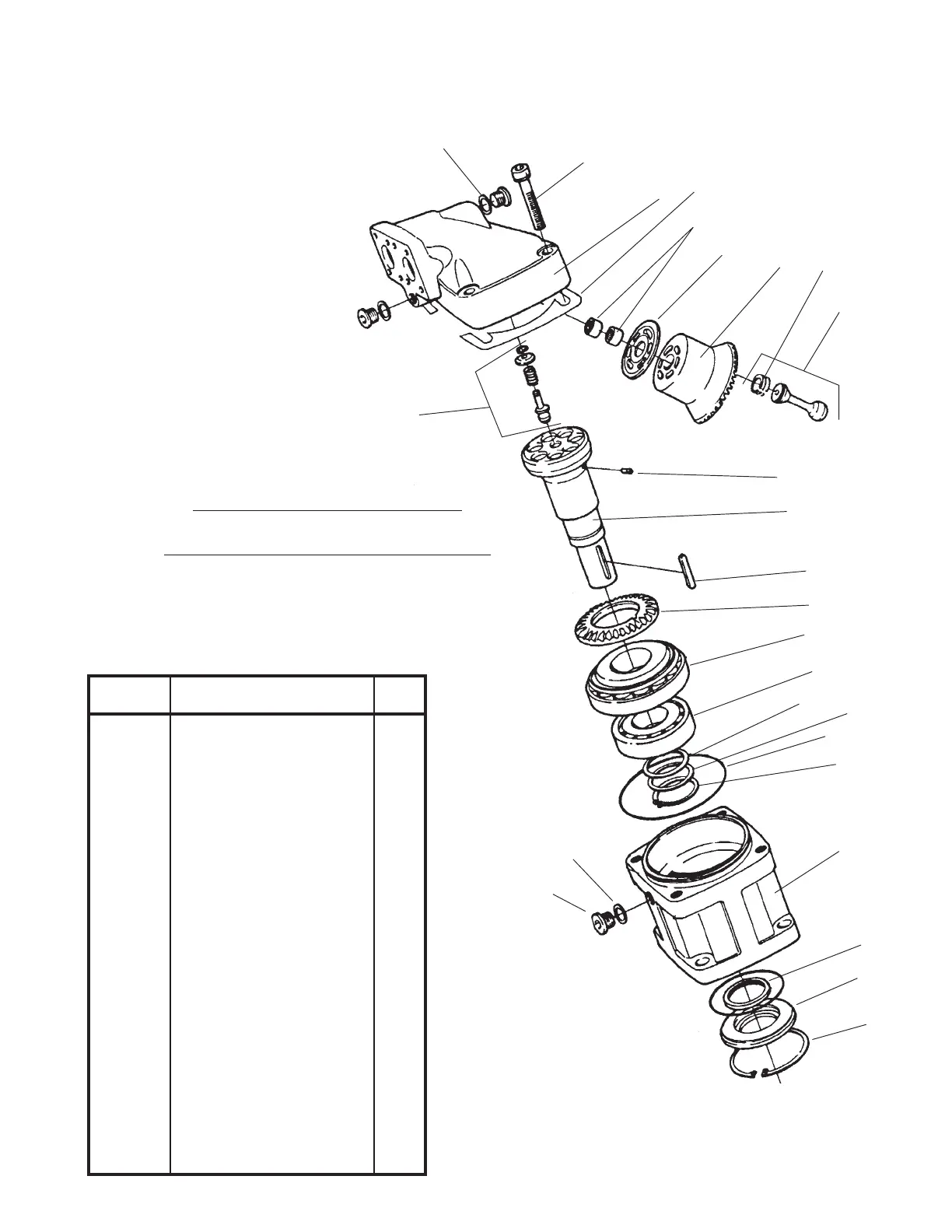

MOTOR ASSEMBLY DRAWING
FOR REFERENCE WHEN SERVICING
NOTE: The Swing Crossover
Relief Valve (560-00906) for
this motor is not shown here
and is not a serviceable or
adjustable component.
