MOUNTING
28
Model: BA-04/08 v3.0 SIP
Wall mounting

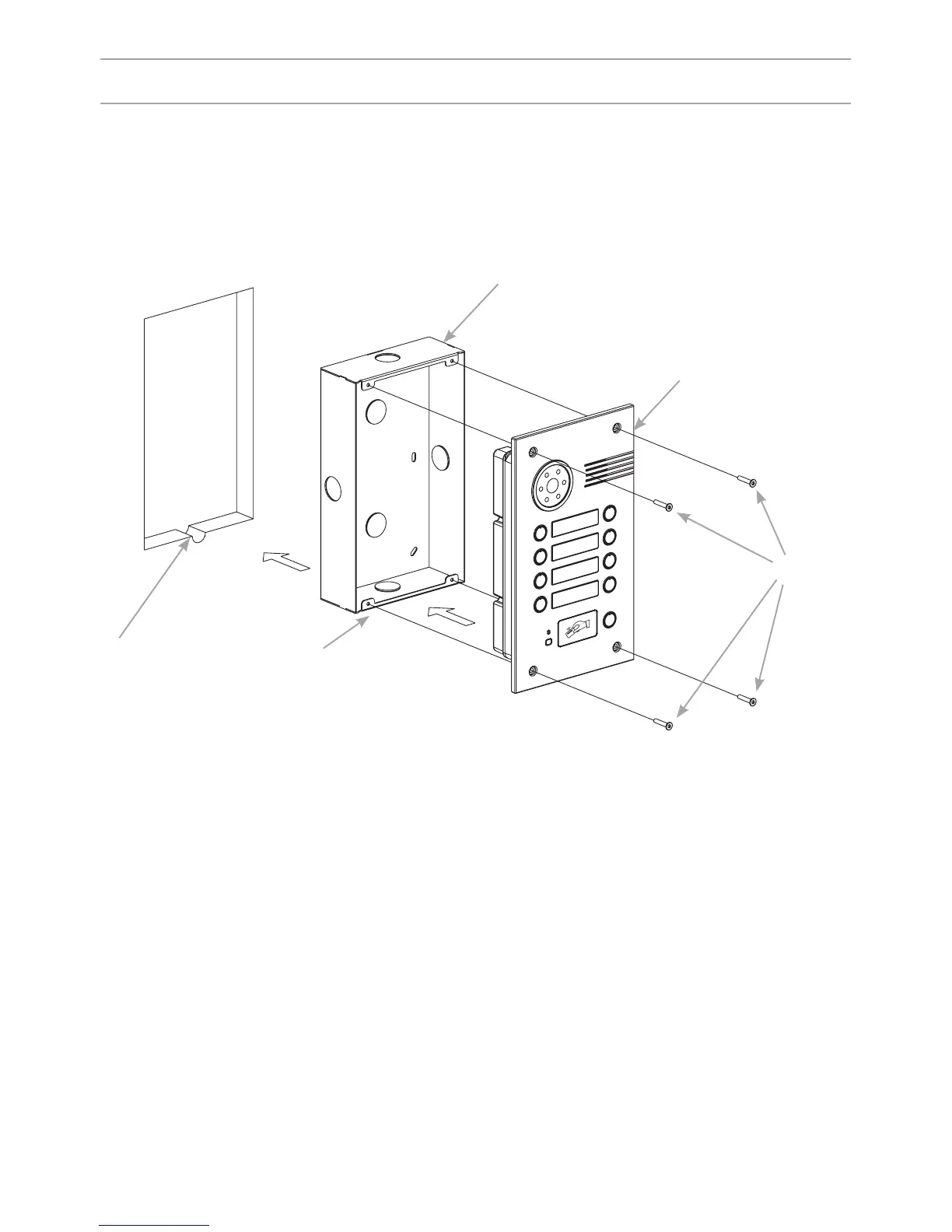

Dimensions of the bracket
= 142 × 245 × 55 мм
Outdoor panel
Bracket
Screws
Attention:
The hole in the bottom of
the bracket is designed
to drain off water, do not
cover it.
It is also necessary to put
the discharge gutter at
the bottom of the niche,
which is used to drain the
water out.
