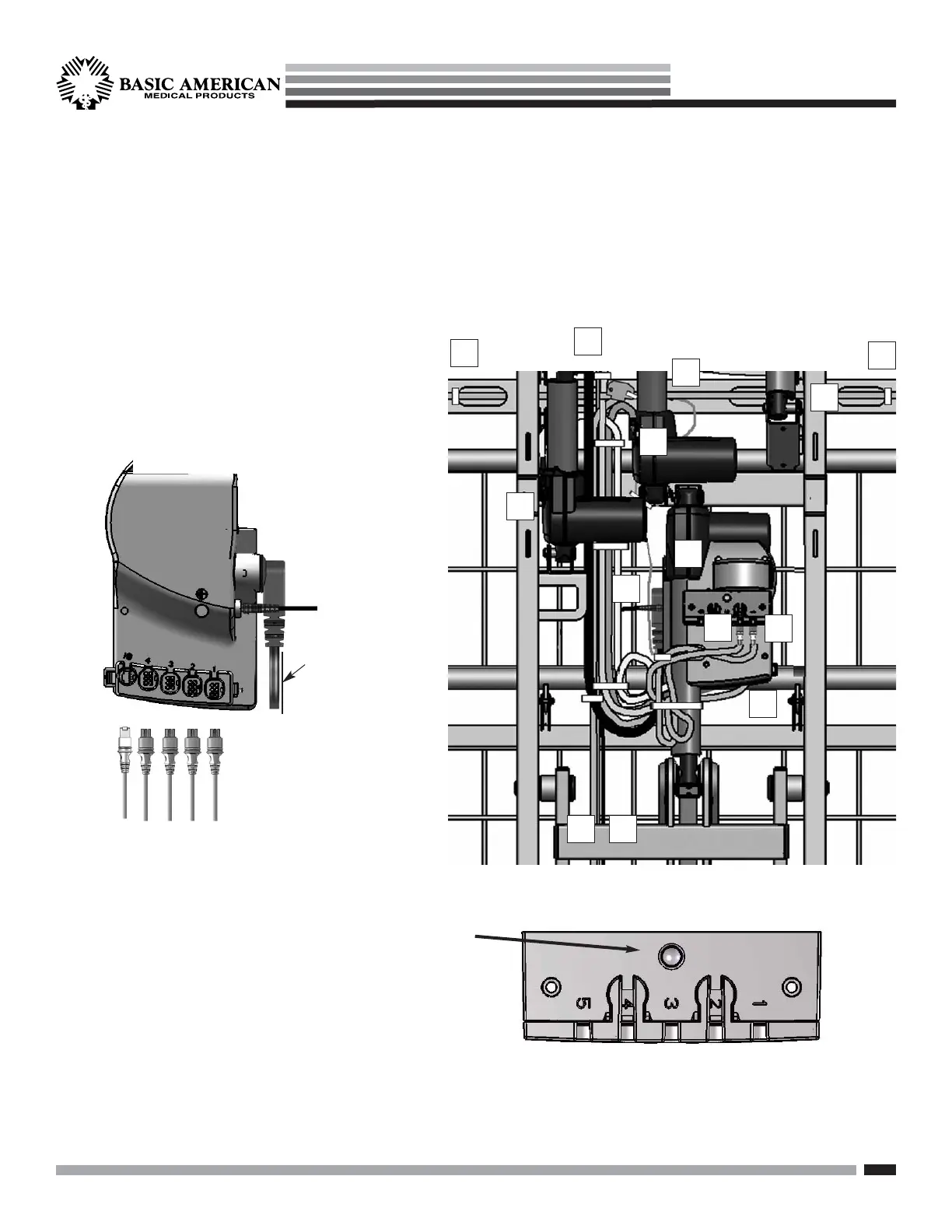

APS 9000 SERIES ELECTRICAL CABLING - MODEL APS981741
UBL-Cable
HI/LO (Ft)
Foot
HI/LO (Hd)
Head
Power Cable
Ground
Wire
Light
T-Cable - Port 2 in Underbed Light Box
HI/LO (Ft) - Port 4 in Control Box
Foot - Port 3 in Control Box
HI/LO (Hd) - Port 2 in Control Box
Head - Port 1 in Control Box
Power Cable &
Battery Cable -
Side of Control Box
Portable
Battery
Cable
Extension
POWER CABLE
T-CABLE
HEAD CABLE
FOOT CABLE
HI/LO CABLE (FOOT)
HI/LO CABLE (HEAD)
BATTERY BACKUP CABLE
GROUND WIRE
UNDERBED LIGHT CABLE (UBL)
u
v
w
x
y
z
{
|
}
u
}
}
v
v
v
v
w
y
{
{
|
x
z
NOTE: Cabling for Beds with Underbed Light feature
is identical to Standard APS beds, except that the
T-Cable plugs into Port 2 in the Underbed Light Box
and an extra Adaptor Cable is plugged into Port 1
on the Underbed Light Box and the HB Port in the
Control Box.
T-Cable
Adaptor
Cable
UNDERBED LIGHT (UBL)
Part # 999-0806-220
(please also order adaptor
cable 999-0806-212)
