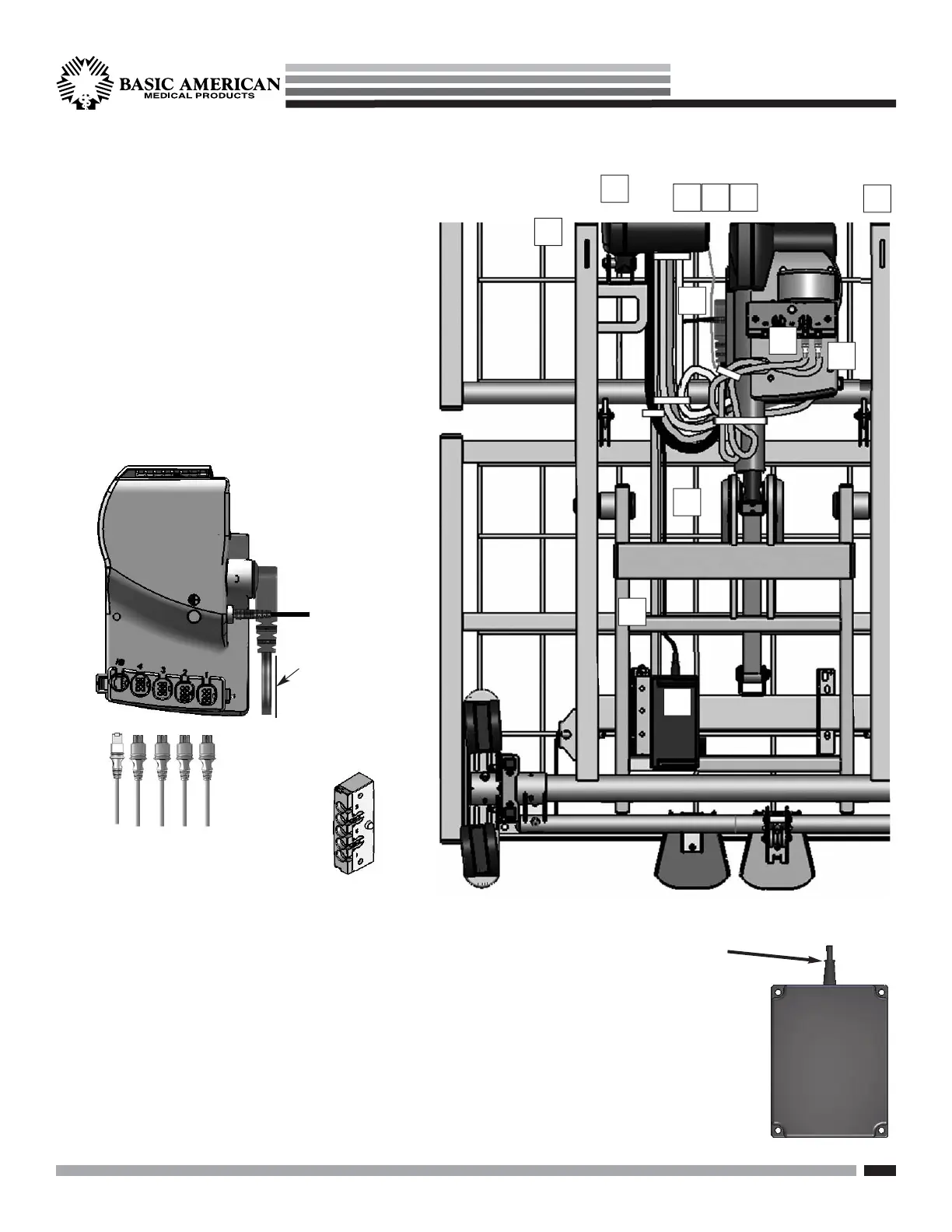

APS 9000 SERIES ELECTRICAL CABLING - MODEL APS981742
UBL-Cable
HI/LO (Ft)
Foot
HI/LO (Hd)
Head
Power Cable
Ground
Wire
Attached
Battery
Cable
Mounted
Battery
Cable
POWER CABLE
T-CABLE
HEAD CABLE
FOOT CABLE
HI/LO CABLE (FOOT)
HI/LO CABLE (HEAD)
BATTERY BACKUP CABLE
GROUND WIRE
UNDERBED LIGHT CABLE (UBL)
u
v
w
x
y
z
{
|
}
u
}
v
v
w
y
{
{
{
|
x
z
NOTE: Cabling for Beds with Underbed Light and Mounted
Battery Backup features are identical to Standard APS beds,
except that the T-Cable plugs into Port 2 in the Underbed
Light Box and an extra Adaptor Cable is plugged into Port 1
on the Underbed Light Box and the HB Port in the Control Box.
A Battery Cable runs from the Control Box directly to an
external Battery Pack at the foot end.
MOUNTED
BATTERY
OPTION
999-0831-003
Underbed Light (UBL)
