4.2 Operating the device
The SOLAREG II controller is convenient and easy to operate using four operating
buttons. Using the operating buttons, you can:
Access display values ◼
Perform device settings ◼
The graphic display symbols allow you to easily navigate through the operating
structure.

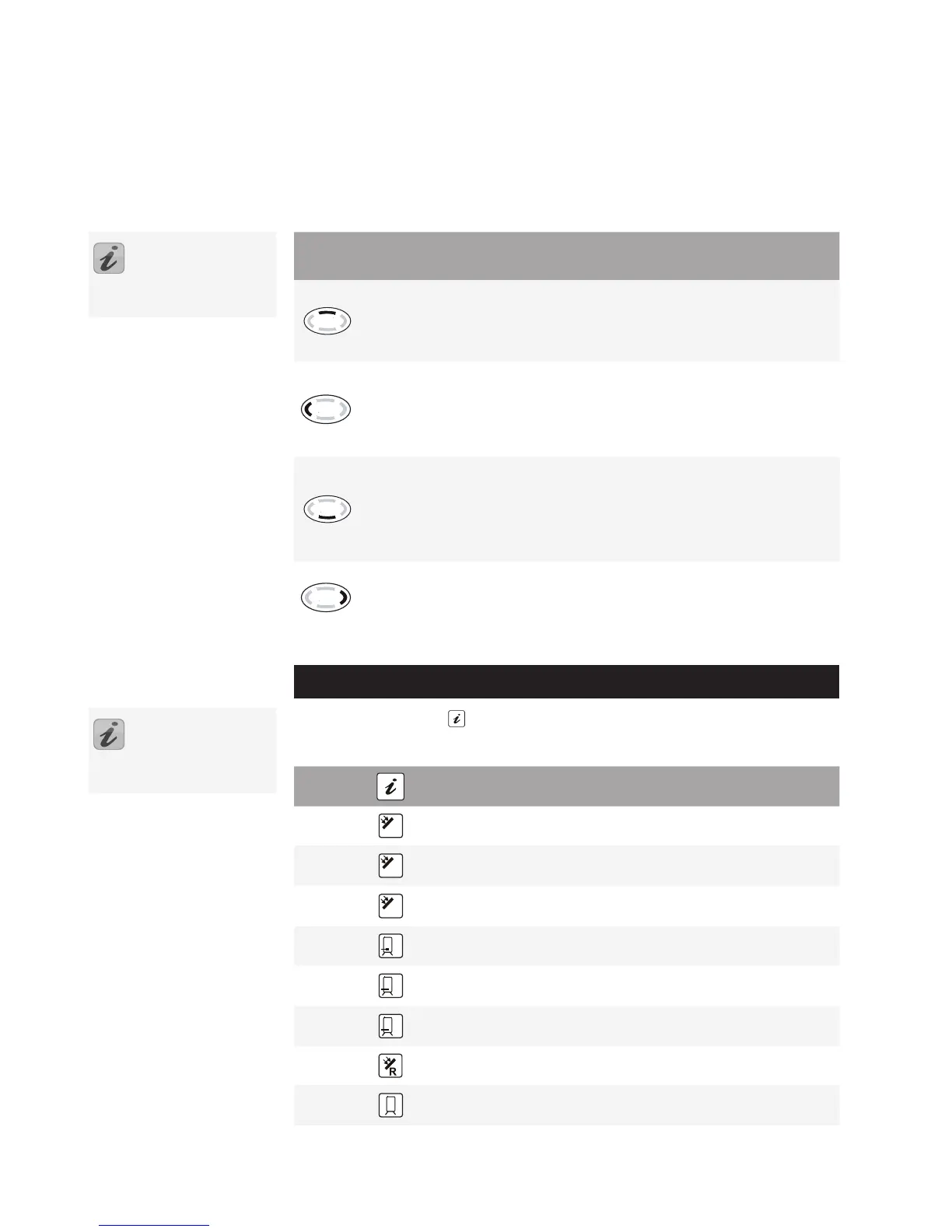

The operating buttons have the following functions:
Operating
buttons
Function Description
"Up"
„+“
Increase menu items ◼
Value change: increases the displayed
value by 1; when the button is held longer,
the value increases continuously
"Scroll left"
"Exit"
"Cancel"
Scroll left in the main menu ◼
Exit a menu ◼
Exit a menu item ◼
Cancel a value change without storing it ◼
"Access"
"Down"
"-"
Access a main menu, ◼
Decrease menu items
Value change: decreases the displayed ◼
value by 1; when the button is held longer,
the value decreases continuously
"Scroll right"
"Select"
"Conrm"
Scroll right in the main menu ◼
Select a menu item ◼
Conrm a value change and store it ◼
5 Menu structure
5.1 "Info" menu
The following measured and yield values are displayed in the Info menu:
Display
e.g.
Meaning
Can be
reset
75 °C Displays current collector temperature No
min
12 °C
Displays minimum collector temperature can
be reset to the current temperature
Yes
max
105 °C
Displays maximum collector temperature can
be reset to the current temperature
Yes
52 °C Displays current storage tank temperature No
min
40°C
Displays minimum storage tank temperature
can be reset to the current temperature
Yes
max
67 °C
Displays maximum storage tank temperature
can be reset to the current temperature
Yes
60 °C Displays the current temperature - S3 No
1234 h
Operating hours for charging storage tank
Can be reset to 0 h
Yes
The display illuminates
when any button is
pressed.
The number of displayed
values depends on the
activated additional functions.
