Test Image 6 - Moving Diagonal Color Gradient
The moving diagonal color gradient test image is available on color cameras only and is designed

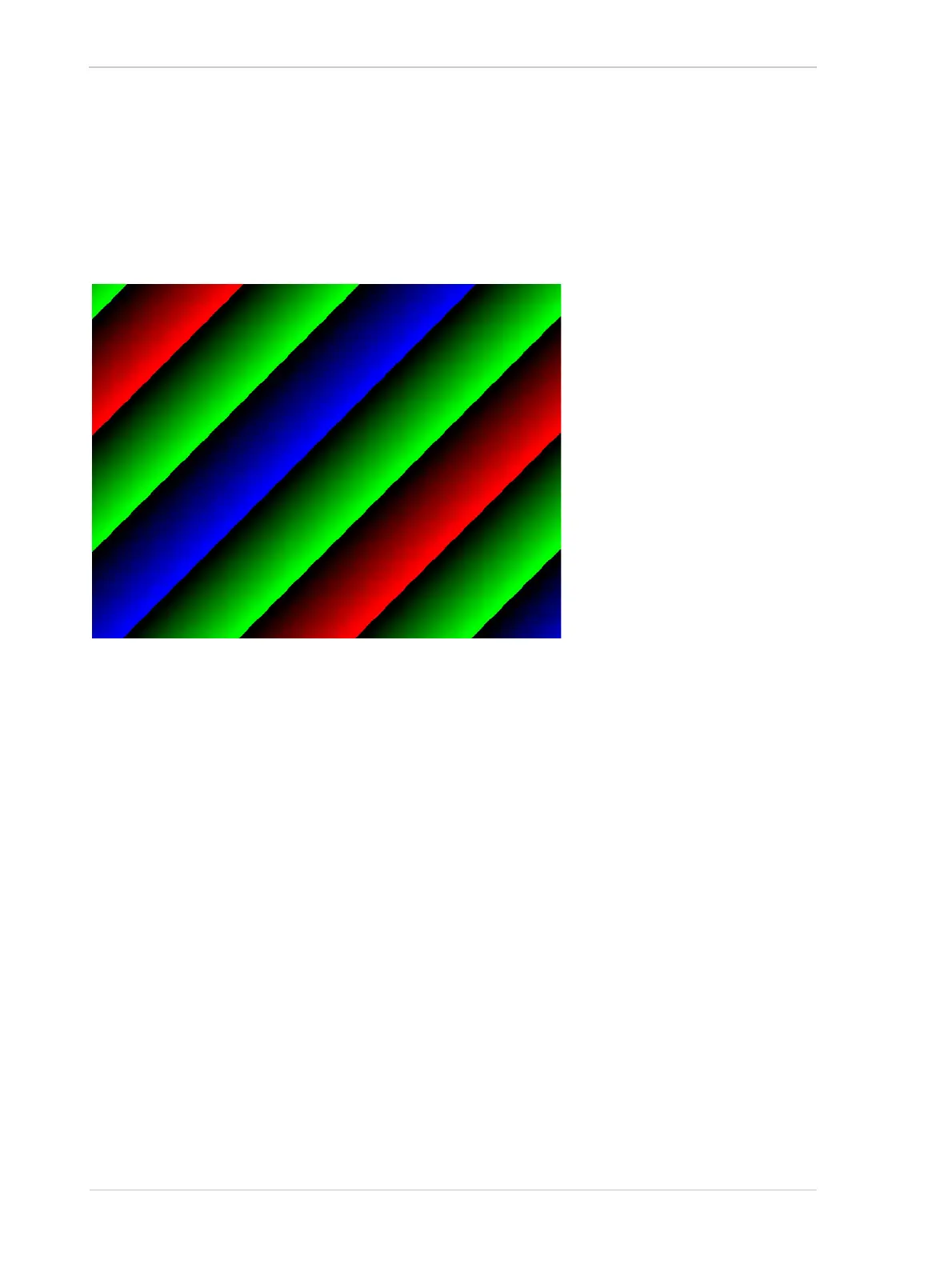

for use when the camera is set for YUV output. As shown in Figure 88, test image six consists of
diagonal color gradients. The image moves by one pixel from right to left whenever you signal the
camera to capture a new image. To display this test pattern on a monitor, you must convert the YUV
output from the camera to 8 bit RGB.
