Color Creation and Enhancement
142 Basler ace GigE
8.2 Color Creation on the acA750-30gc
The sensor used in this camera is equipped with a complementary plus green color separation filter.
The colors in the filter are cyan, magenta, yellow, and green (CMYeG). Each individual pixel is
covered by a portion of the filter that allows light of only one color to strike the pixel. The filter has
a repeating pattern as shown in Figure 71.
Because there is only one vertical shift register for every two pixels in the camera’s sensor, when a
field is acquired, the colors from two pixels will be will be combined into a single "binned" pixel. As
shown in Figure 72, when the camera acquires field 0, it will obtain the following color combinations
for any group of four "binned" pixels:
Green + Cyan
Magenta + Cyan
Magenta + Yellow
Green + Yellow
Sensor
Pixels
GM
CYe
MG
CYe
GM
CYe
MG
CYe
GM
CYe
MG
CYe
GM
CYe
MG
CYe
GM
CYe
MG
CYe
GM
CYe
MG
CYe
GM
CYe
MG
CYe
GM
CYe
MG
CYe

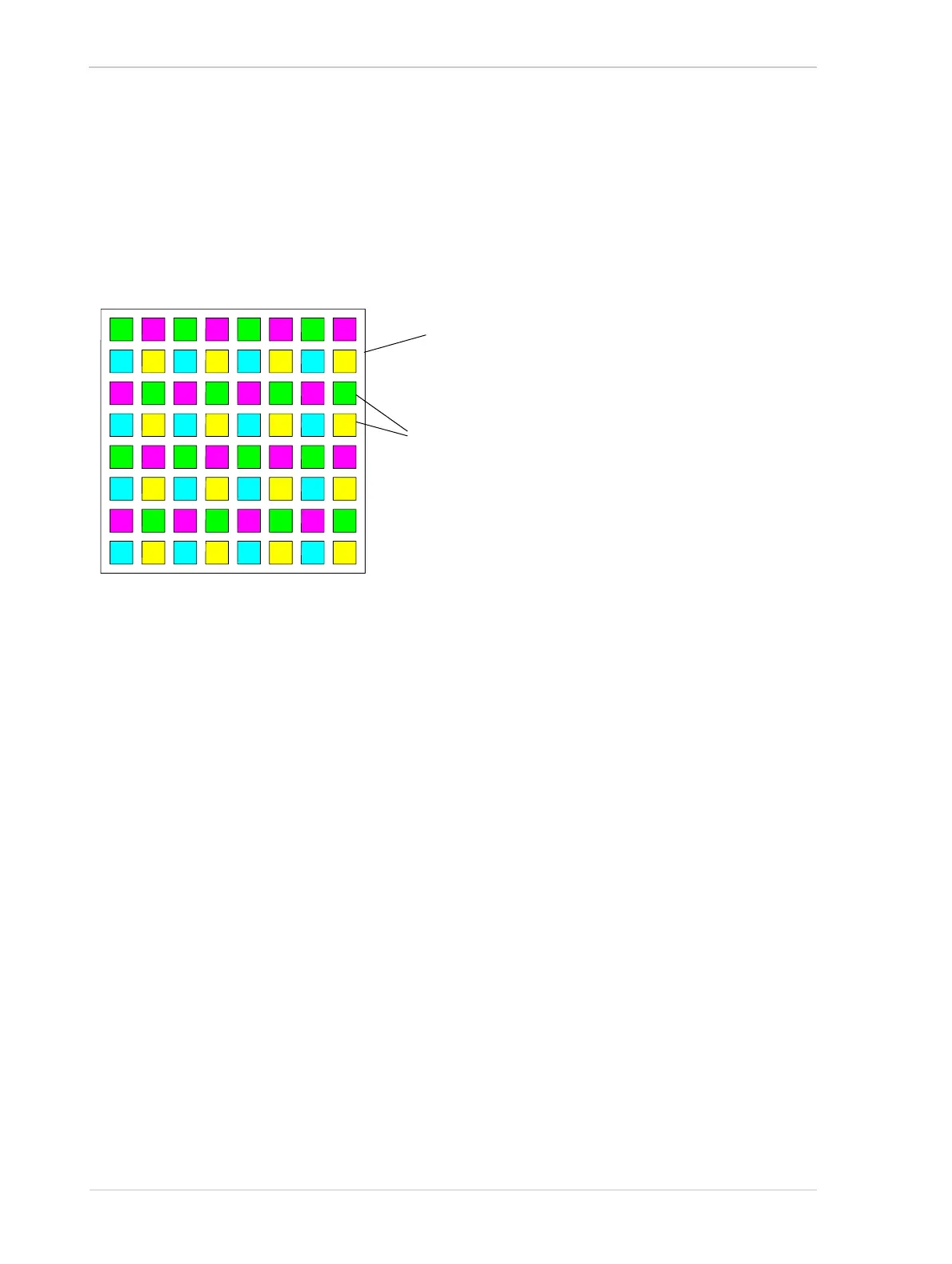

Fig. 71: Complementary Color Filter Pattern
