4-12 9469200995
Communication DGC-2020ES

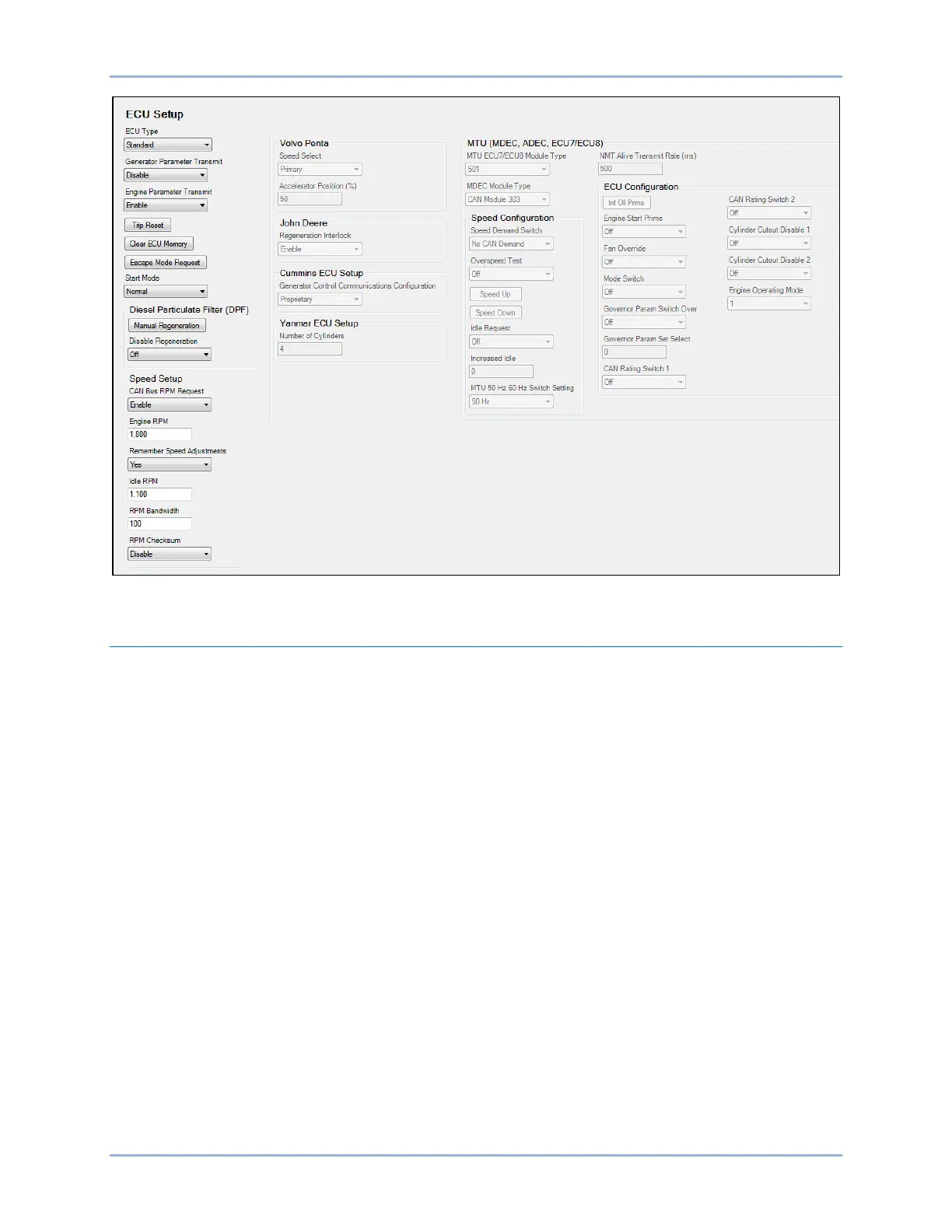

Figure 4-2. Settings Explorer, CAN Bus, ECU Setup
Remote Display Panel (optional)
Applications that require remote annunciation can use Basler Electric’s Remote Display Panel. This
device provides remote indication of many pre-alarm and alarm conditions.
Remote Display Panel connections are made at 10 (RDP TxD–), 11 (RDP TxD+), 17 (BATT–), and 18
(BATT+).
The following pre-alarm conditions are indicated by LEDs on the Remote Display Panel:
• High coolant temperature
• Low coolant temperature
• Low oil pressure
• Low fuel level∗
• Weak battery
• Battery overvoltage†
• Battery charger failure∗†
The following alarm conditions are indicated by LEDs and an audible alarm on the Remote Display Panel:
• Low coolant level∗
• High coolant temperature
• Low oil pressure
• Overcrank
• Overspeed
• Emergency stop activated
• Fuel leak/Sender failure∗†
• Sender failure†
∗ This can be configured in the DGC-2020ES as None, Alarm, or Pre-alarm. See the Contact Inputs
chapter for more information. The LED on the Remote Display Panel illuminates when the input that is
