AW00118508000 Physical Interface
Basler racer Camera Link 33
There are also a connection point for functional earth (FE) and a LED indicator located on the back
of the camera as shown in the drawing.

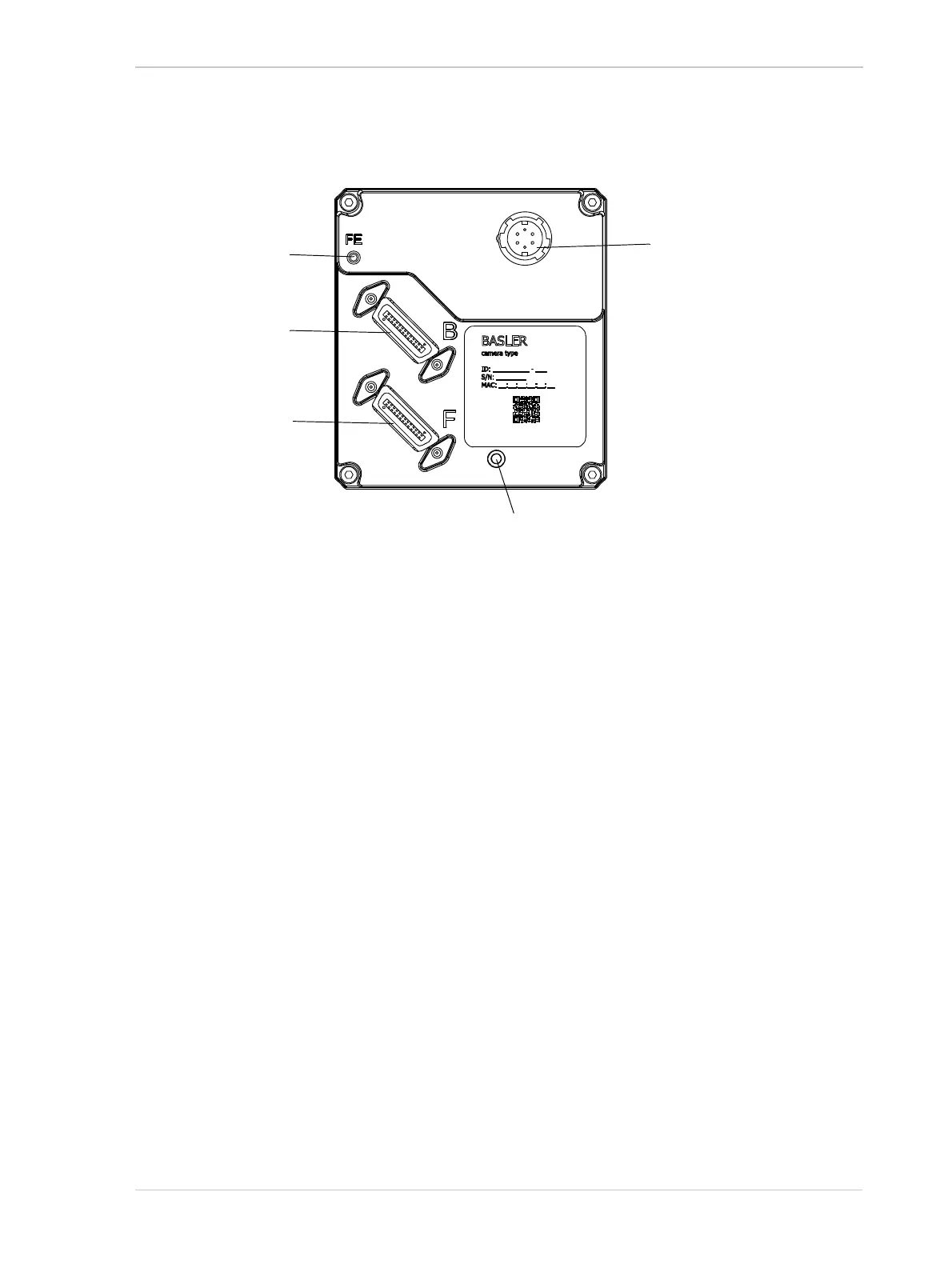

Fig. 12: Camera Connectors and LED Indicator
26-pin
SDR Connector
(Base Camera Link
Connection;
Power and Data)
6-pin
Receptacle
(Power)
LED Indicator
26-pin
SDR Connector
(Medium/Full Camera
Link Connection;
Data)
Functional Earth
Connection
