Basler raL12288-66km User Manual

AW00118508000 Acquisition Control
Basler racer Camera Link 77

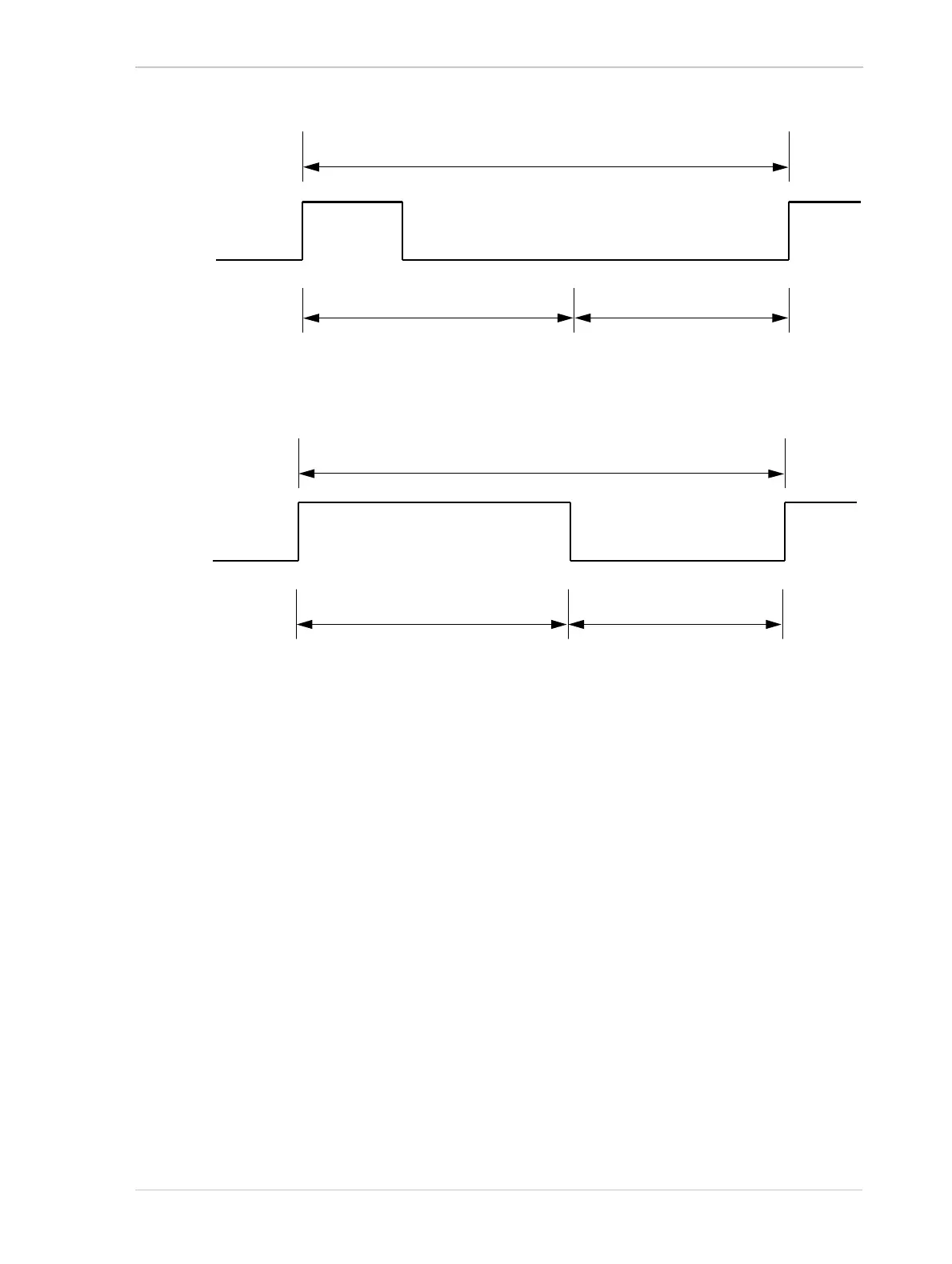

Fig. 26: Relation of the ExLSTrig Signal Period and Periods E and F for Regular Line Acquisition in Timed Exposure
Mode
Fig. 27: Relation of the ExLSTrig Signal Period and Periods E and F for Regular Line Acquisition in Trigger Width
Exposure Mode
From the above conditions, one can readily calculate the allowed values for E and F for regularly
operating the camera at the maximum allowed line rate. This operation will also involve the
maximum possible overlap between consecutive line acquisitions.
ExLSTrig Signal Period (= Line Acquisition Period = 1/Line Rate)
ExLSTrig
Signal
E: Exposure
Determined by the Exposure Time
Parameter or Register Setting
F: Exposure Overhead or
Exposure Overhead &
(at Least Partial) Readout
ExLSTrig
Signal
ExLSTrig Signal Period (= 1/Line Rate)
E: Exposure
Determined by the Exposure Time
Parameter or Register Setting
F: Exposure Overhead or
Exposure Overhead &
(at Least Partial) Readout
