The voltage regulator will operate when mounted in any position, however, it should be vertically
mounted to obtain optimum cooling when operating near its full rated output. The regulator can be
mounted in any location where the ambient temperature does not exceed its ambient operational
limits. Due to its rugged construction, the regulator can be mounted directly on the generator.
The overall and mounting dimensions are shown in Figure 3-1. The mounting dimensions of the
associated potentiometers are shown in Figures 3-2 and 3-3.

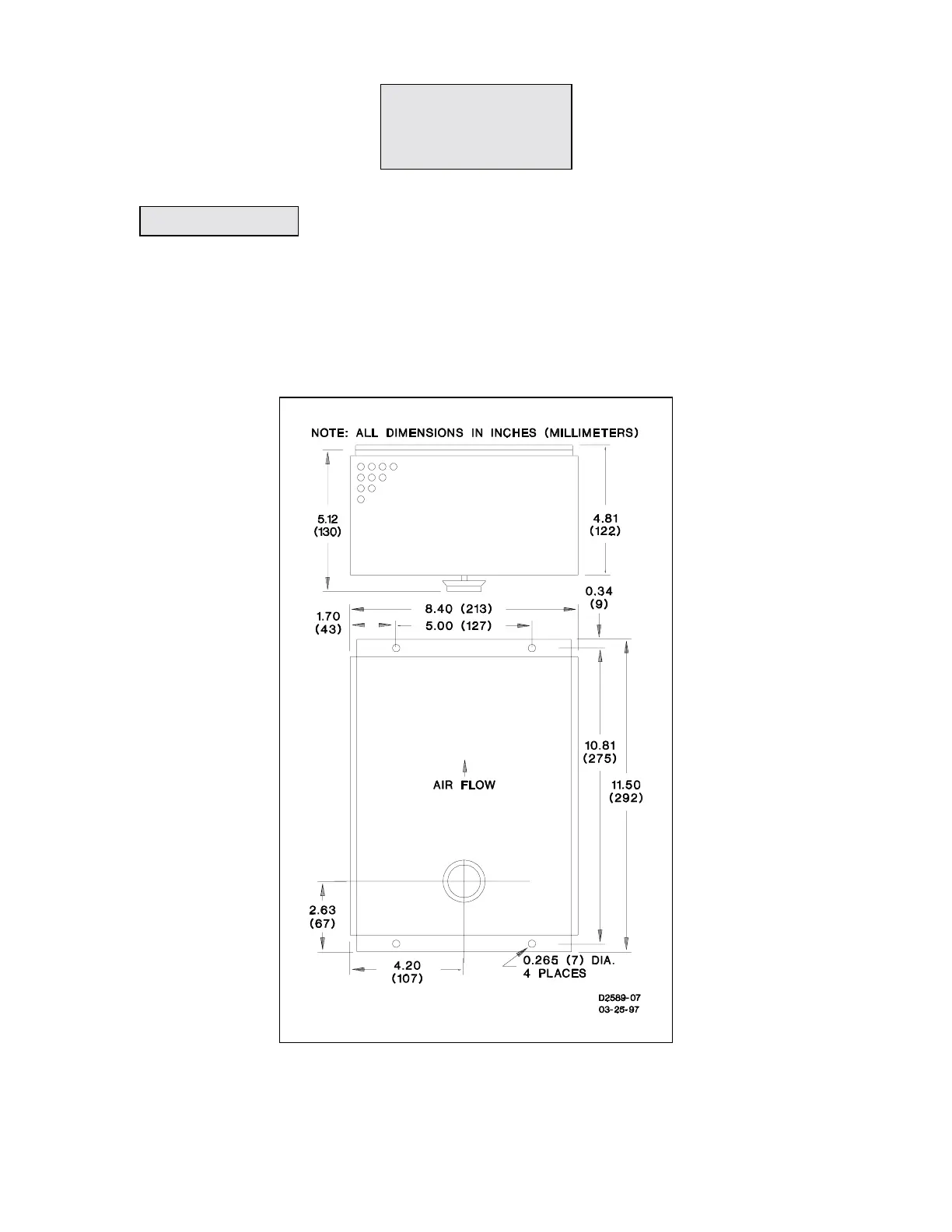

Figure 3-1. Outline Drawing.
SECTION 3
INSTALLATION
3-1. MOUNTING
