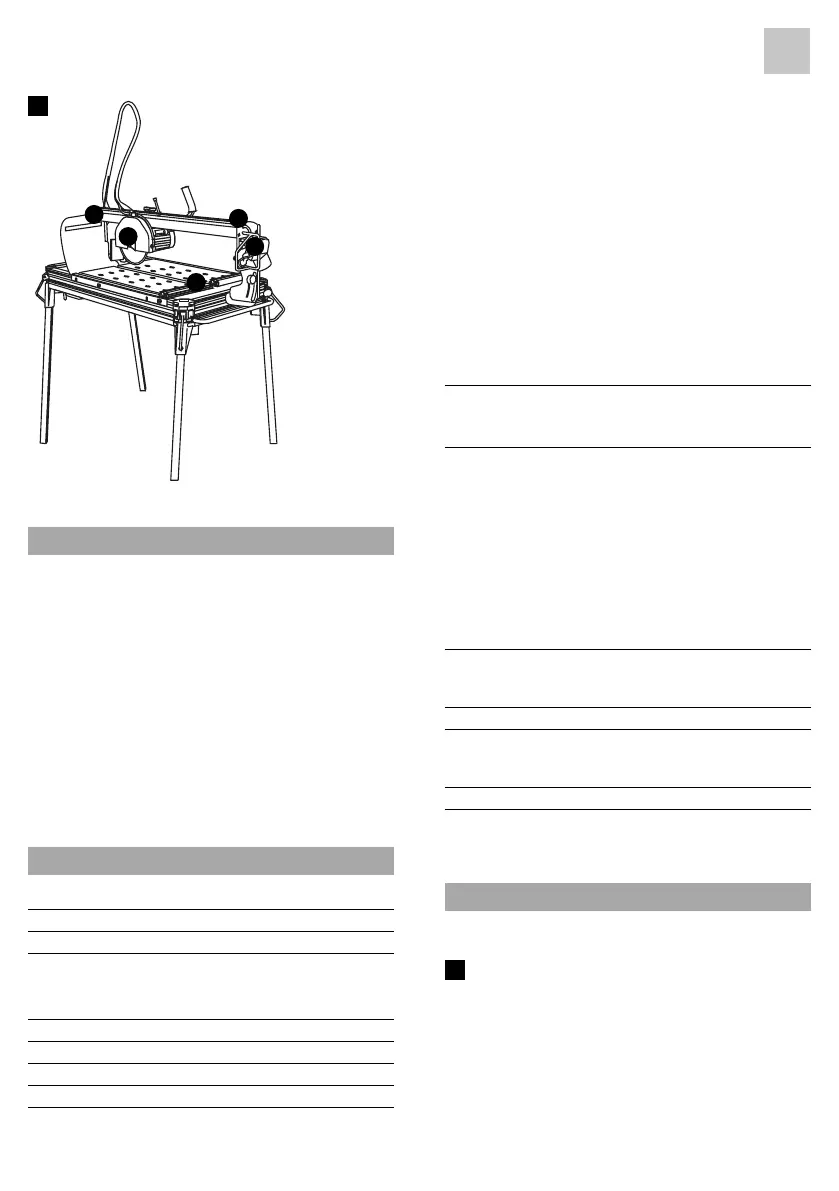

MACHINE DESCRIPTION
The CLASS PLUS site cutter is a machine intended
specically for cutting ceramics, single-red items,
terracotta, and marble (Max thickness 20 mm), up to
a thickness of 65 mm.
The machine uses a wet diamond tipped tool cutting
system and is intended for personnel specialized in
the construction sector.
The operator works in front of the narrow side of
the machine, within reach of the operating controls,
and positions the material to be cut on the moving
worktop. He/she starts the machine and moves the
cutting head to bring the tool into contact with the
material.
TECHNICAL DATA
Voltage: 230V 50Hz~
Power absorbed: 1400 W
Admissible working conditions:
INTERMITTENT S3 SERVICE
30s under load running
30s repose
Rotation speed: 2800 min-1
Condenser: 20 µF
Thermal circuit breaker: 170°C
IP Degree: 54
RECOMMENDED USE:
CUTTING TOOL
DIAMOND BLADE WET CUTTING
CONTINUOUS CROWN:
ceramic, single-red ceramic, cotto and marble
THE TOOL / MATERIAL TO BE CUT MATCHES ARE
PURELY INDICATIVE.
ALWAYS FOLLOW THE INTENDED USE
INDICATIONS PROVIDED BY THE CUTTING TOOL
MANUFACTURER BEFORE ANY APPLICATION.
Water recirculation pump:
S0 230V 50/60Hz
(Art. 66900, 661050)
S1 230V 50/60Hz
(Art. 661350, 661351)
The noise emitted by these machines was
measured on production samples in compliance
with ISO 3745-77 standards.
The machine was positioned on an H800 (mm)
auxiliary table.
The samples comprised 314x314x8 (mm) single
red tiles, mod. P3T287 1200 °C. K = 2, \[ dB ], pr
EN 848 - 1
Sound:
LOADLESS VALUES
Lw 72,4 [dBW(A)] 0,0 [mW(A)]
Lpm 61,5 [dB(A)] 61,5 [dB(C)max]
UNDER LOAD VALUES
Lw 101,5 [dBW(A)] 14,3 [mW(A)]
Lpm 92,0 [dB(A)] 100,7 [dB(C)max]
In working conditions, the machine creates a noise
emission above 85 dB(A).
INSTALLATION
TRANSPORT
3
The CLASS PLUS machine is easy to carry by
using the specially provided side handles.
Before carrying the machine make sure that:
• the motor carriage is locked in place with the
two cutting adjustment knobs on the slide rail;
• the motor carriage is completely lowered and
locked with the locking lever;
• the machine is in the 45° (jolly) position and
the inclination adjustment knobs are properly
2
