Purification Systems
Page 5 3rd Edition, Rev 0 Chg 6
2.1.3 Manual Condensate Drainage
The condensate must be drained from the oil and water separator before changing any cartridge, before
beginning each filling procedure and in the absence of an Automatic Condensate Drain (ACD) system,
every fifteen minutes during the filling procedure. This is done by slowly opening the condensate drain
valves. They are opened approximately 1/3 of a turn to the left and held open until the condensate is com-
pletely drained. The condensate drain valves close by spring pressure but if necessary may be tightened
by hand to ensure they are completely air tight.
2.1.4 Model, Serial Number and Part Number Identification
2.1.4.1 Compressor Dataplate
The model number, date of manufacture and serial number can be found on the compressor unit identifi-
cation plate in the main electrical enclosure and frame.

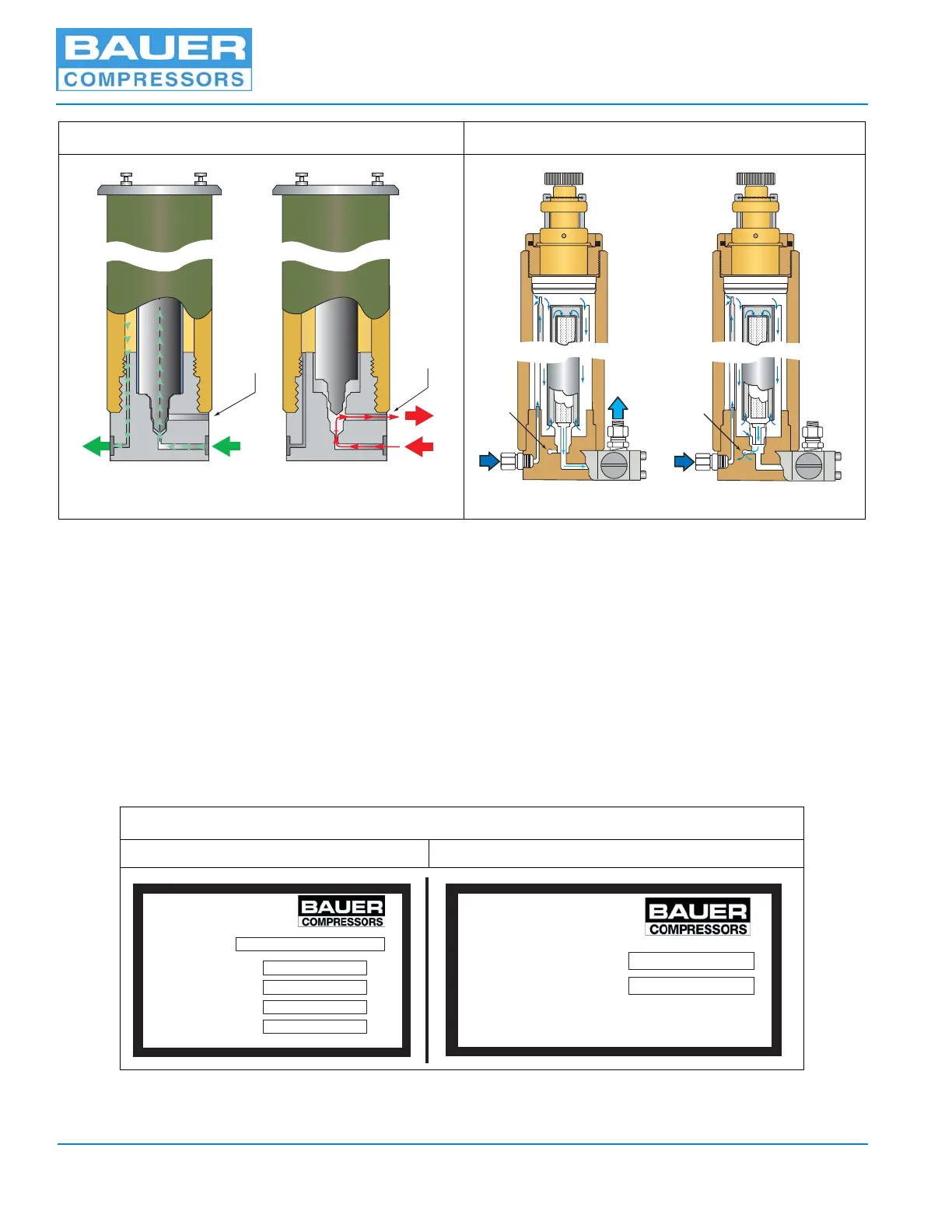

Figure 2-1 Cartridge Safety Venting Figure 2-2 P0 & P31 Safety Venting
Figure 2-3 Purification System Dataplates (typical)
Purification System Cartridge Installation
Safety
Vent
Cartridge Installed
correctly
Safety
Vent
No Cartridge Installed
or Installed incorrectly
Cartridge Installed
Correctly
No Cartridge or Installed
Incorrectly
Safety
Vent
Safety
Vent
CARTRIDGE FOR
CARTRIDGE NO.
LBL-0044
CARTRIDGE TO BE
INSTALLED
1328 Azalea Garden Road - Norfolk Virginia 23502-1944
Phone: (757) 855-6006 Fax: (757) 855-8224
MODEL NO.
MAX. PRESSURE
AIR PROCESSED
O-RING
BACK-UP RING
psig
cu. ft.
LBL-0191
PURIFICATION
SYSTEM
