Bauer Compressors P5 User Manual

Purification Systems
Page 23 3rd Edition, Rev 0 Chg 6
CHAPTER 4: MULTI-CHAMBER PURIFICATION SYSTEMS
4.1 Applicability
This chapter applies to these Bauer Purification System models: P1, P2, P2S, IP2S, P4, P5, P5S, IP5S,
P10, P10S, IP10S, P41,P41S, IP41, IP41S, P42, P42S, IP42, IP42S, P43, P43S, IP43 and IP43S.
4.2 Components Layout
The minimum components of all Bauer Air Purification Systems are a Oil and Water Separator and a
Purification Chamber. Different models add one or more Dryer Chambers and replace the Purification
Chamber with a Securus
®
Electronic Moisture Monitor System Purification Chamber. Additional compo-
nents generally include a Condensate Drain Valve, Check Valves, a Bleed Valve, a Pressure Maintaining
Valve, and a Safety Valve. Figure 4-1 shows the typical interconnection of these components.

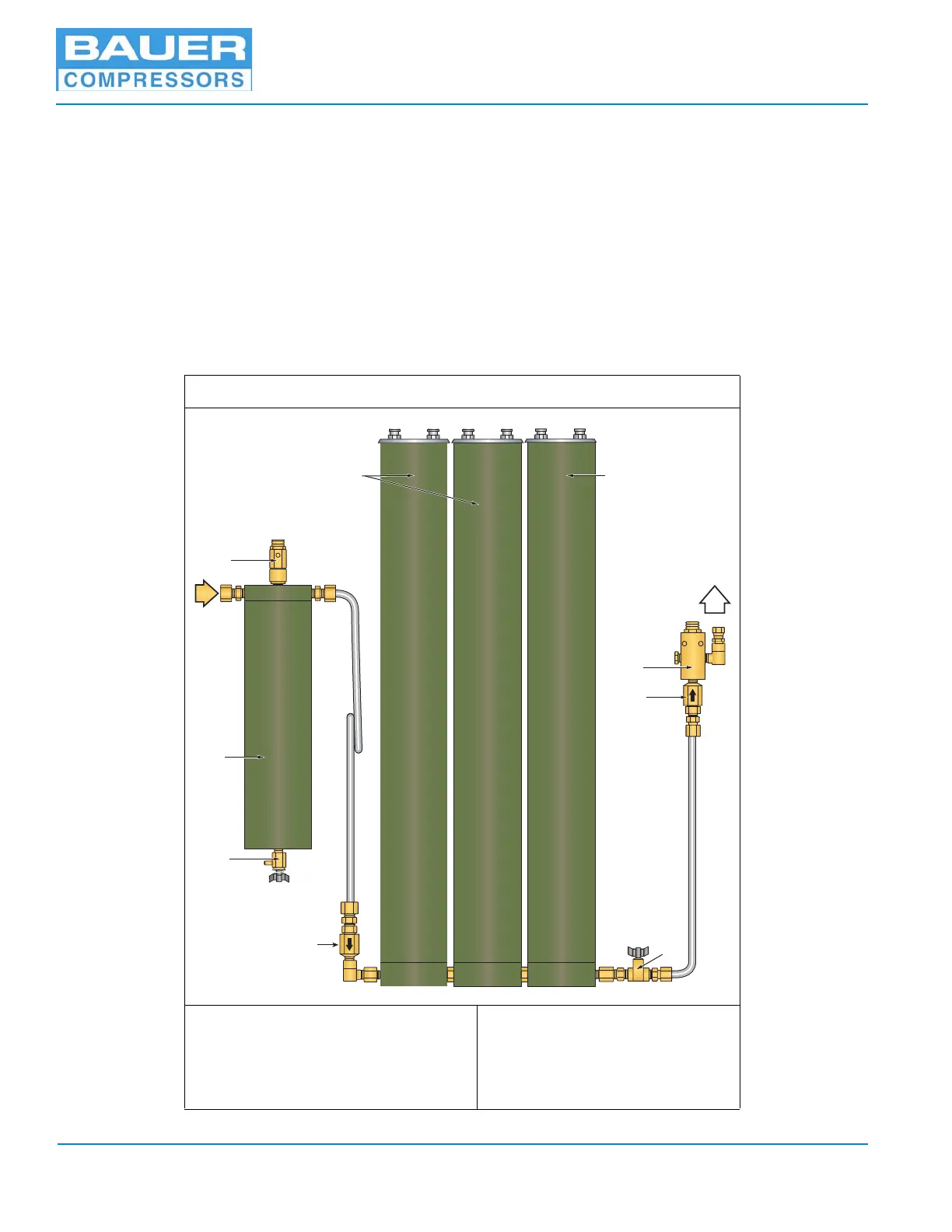

Figure 4-1 Typical Bauer Purification System
1. Oil and Water Separator
2. Condensate Drain Valve
3. Check Valves
4. Dryer Chamber
5. Purification Chamber
6. Bleed Valve
7. Pressure Maintaining Valve
8. Safety Valve
OUT
IN
1
2
3
4
5
6
3
7
8
