Purification Systems

Page 83 3rd Edition, Rev 0 Chg 6

Item Qty Part No. Description Notes

 1 067106 Securus

®

Chamber Assembly 27”High Flow

1 † … Chamber Housing Available only with 067106

2 1 N17458 Finned Plug

3 1 067088 Round Nut

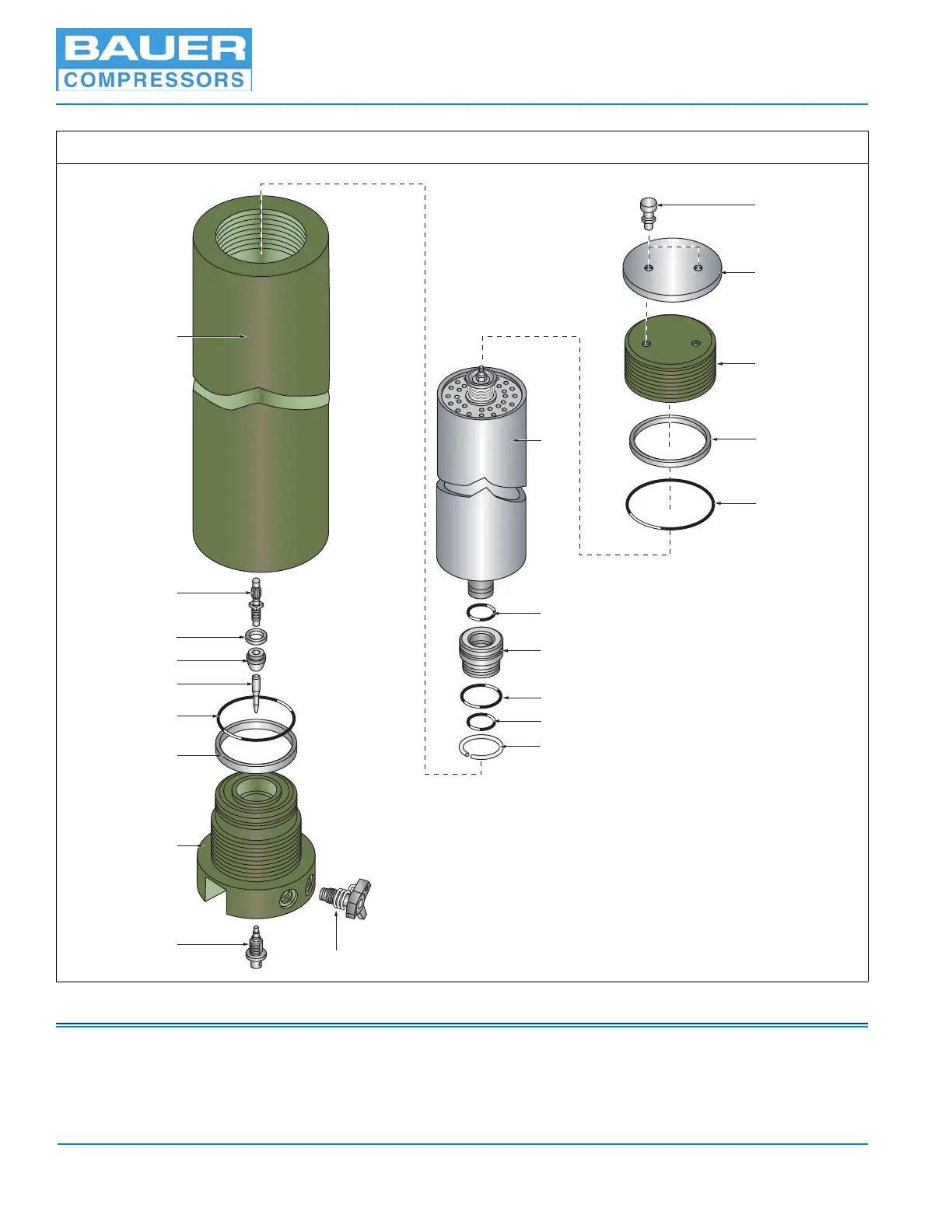

Figure 5-15 Securus

®

Chamber Assembly

1

2

3

4

5

6

7

8

9

10

16

15

14

13

12

17

18

19

7

6

11
