Installation of aesthetic panel
【Figure
4a】
2

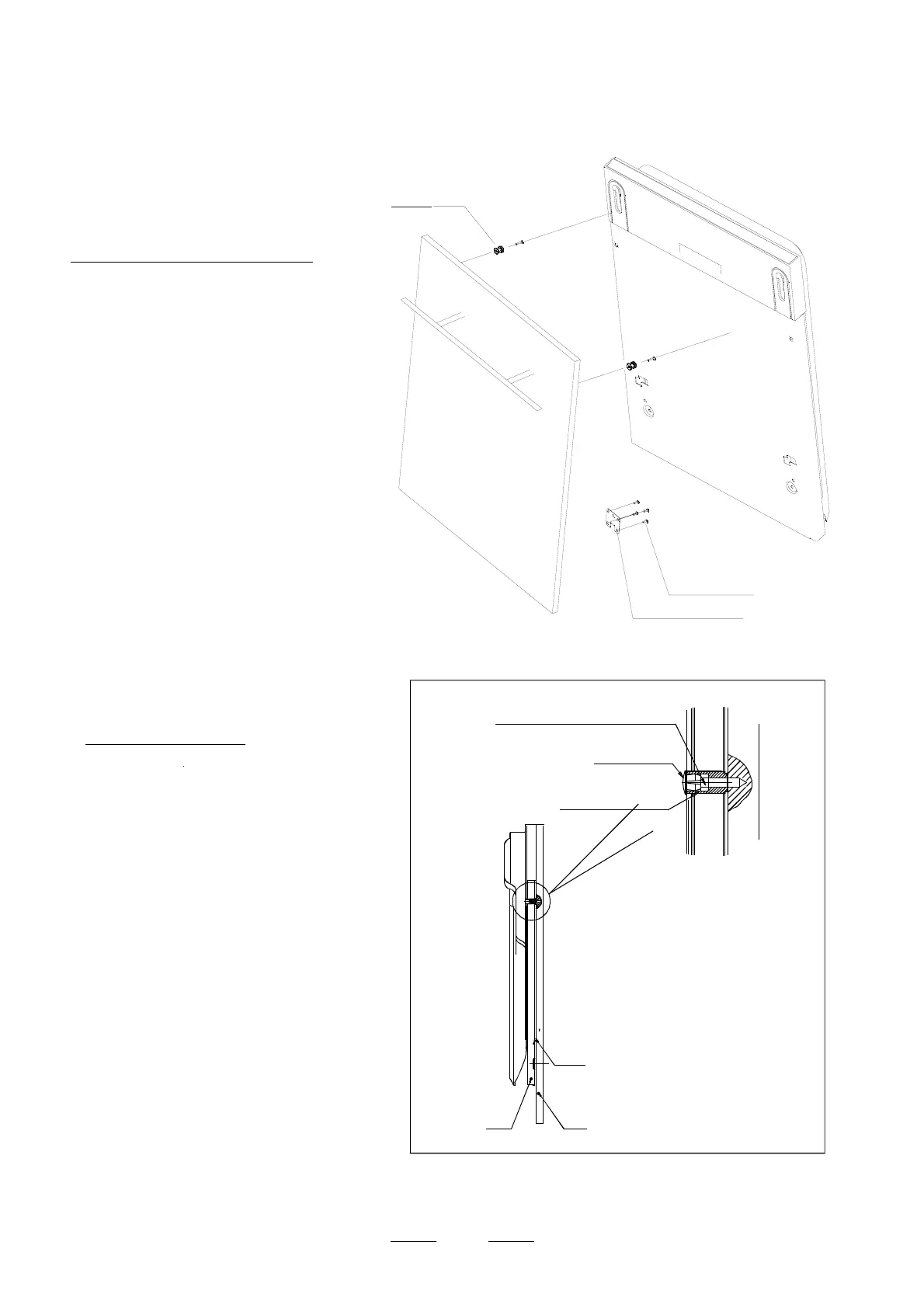

Install the hook on the aesthetic wooden panel and put the hook into the slot of the outer door of
dishwasher(see figure 4a). After positioning of the panel , fix the panel onto the outer door by
screws and bolts(See figure 4b) .
Installation of aesthetic
wooden panel
【Figure4b】
.Takeawaythecover
.Pinupthescrew
. Get back the cover
1
2
3
Hop hook
St4 countersunk
head screw
Lower hook
Furniture door
Hook for aesthetic door
Outerdoorof
dishwasher
Spacer for furniture door
Cover
4X18 screw
