Baumatic BAD4504 - Dishwasher Installation Steps

6
5
7
2
RUBBER
SCREW
COVER
8
SCREW
CONE GEAR
6B
6A

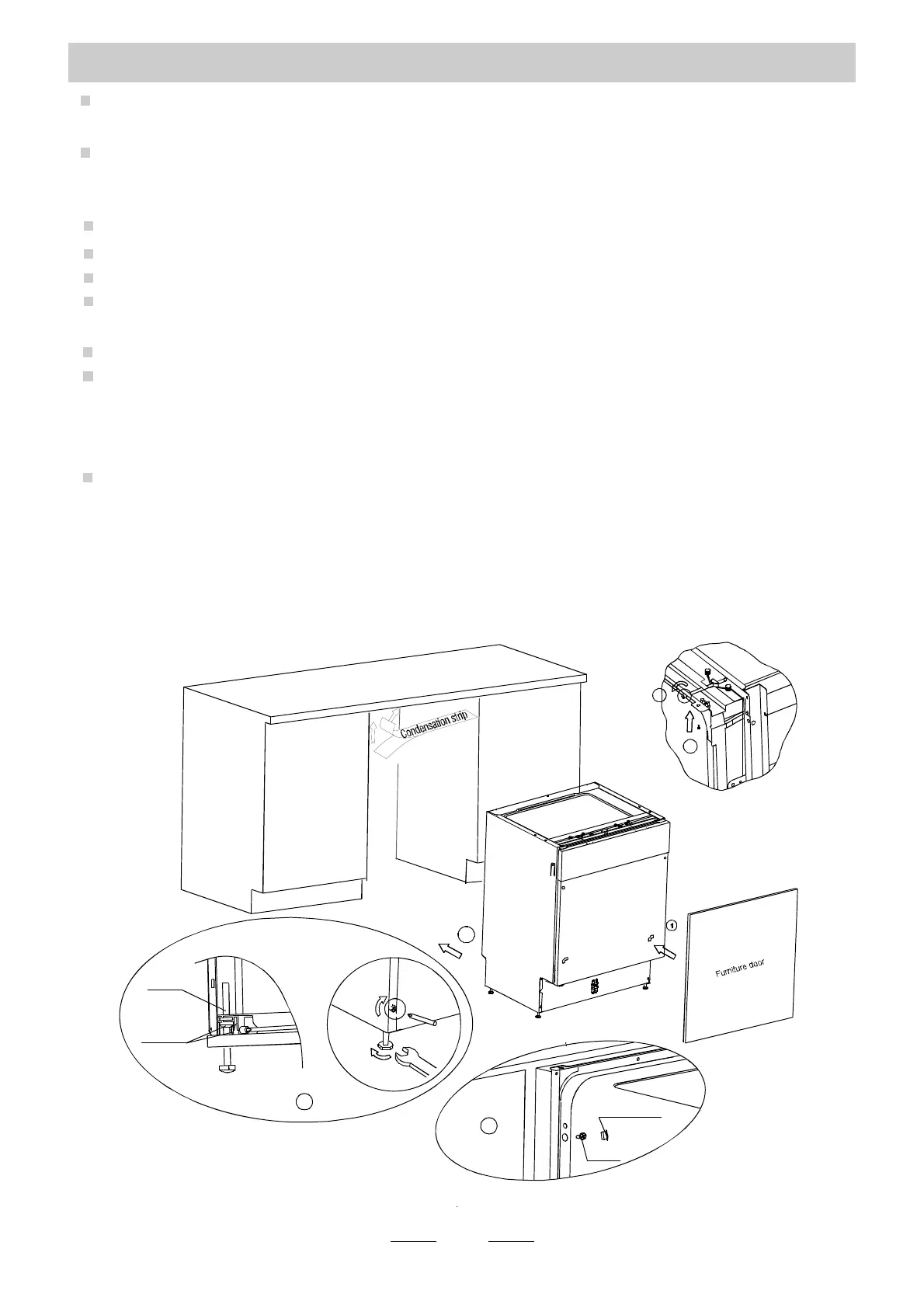

【】Figure 7
Dishwasher installation steps
●
.
.
.
.
7
8
1 Install the furniture door to the outer door ofthe dishwasher using the brackets
provided. Refer to the template forpositioning of the brackets.
2 Adjust the tension of the door springs by using anAllen key turning in a clockwise
motion totighten the left and right door springs. Failure to do this could cause damage
to your dishwasher (Illustration 2)
3 Con nect t h e inl et h ose to th e c old w ater s uppl y
4 Connec t t he d ra in hose. Refer t o diag ra m (Figu re 6 )
5 Con nect t he p ower co rd
Affix the condensation strip under the work surface of cabinet.Please ensure
the condensation strip is flush with edge of work surface.
Plac e the dishwasher into p osition.
Level the dishwasher. The rear feet can be adjusted from the front of the dishwasher
by t urn ing th e s cr ew s on th e le f t a nd r ight ha nd s ide of t he ca bin et ( Illu st ration 6A ).
To adjust the front feet, use a wrench and turn the front feet until the dishwasher is level
(Illustration 6B).
9 The dishwasher must be secured in place. There are two ways to do this:
A. Nor mal work surface-secure to the work surface by using two woodscrews e nsuring
the dishwasher weight is not being hit by the surface(Illustration 7).
B. Ma rbl e or gr ani te wor k t op-s ecure the b ra cket to the s ide pa nel o f the d ishw ash er
and secure the dishwasher to the furniture housing. Put the rubber cap over the screw
(Illustra tion 8).
