21

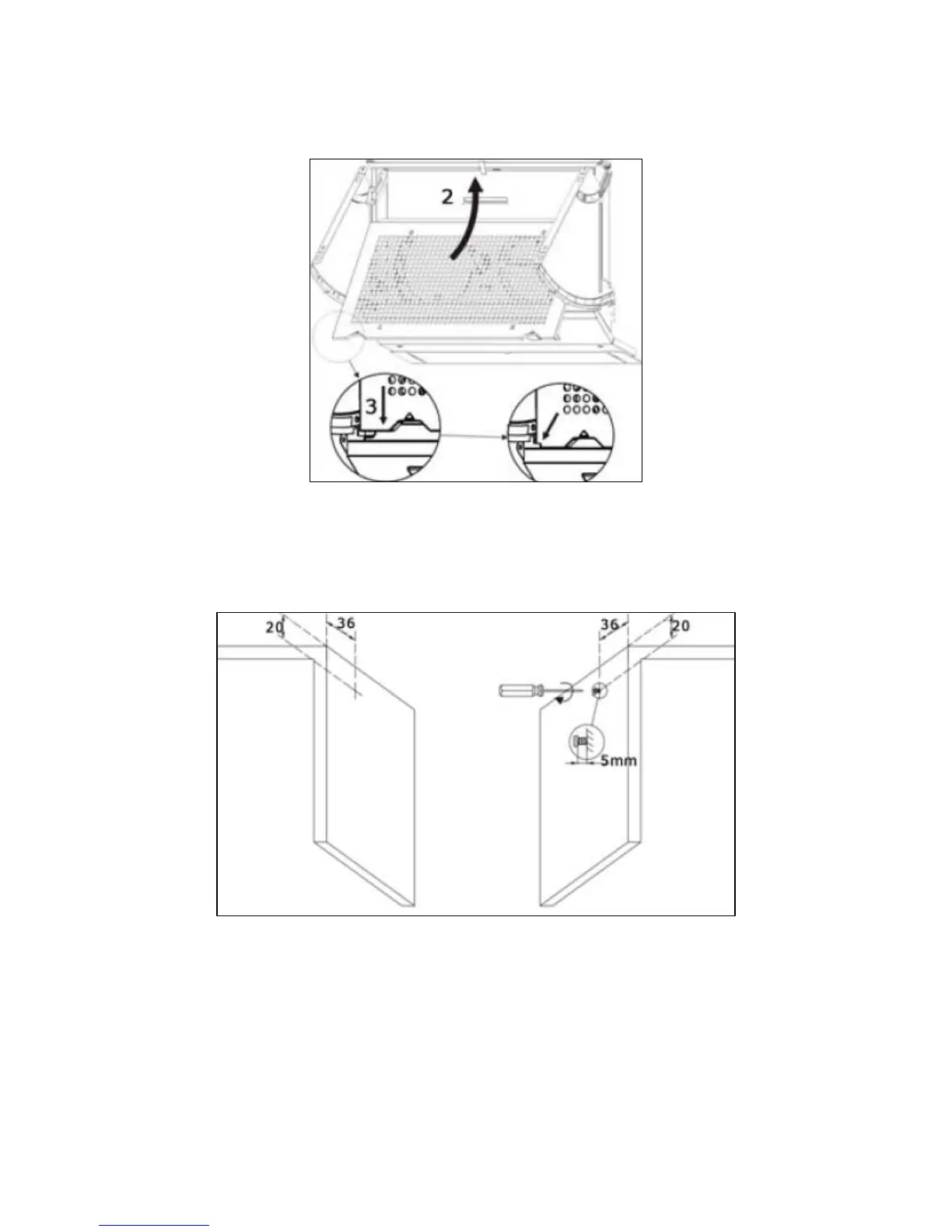

o Remove the filter by locating the two catches at the base of the
filter as shown in the diagram on the previous page (1).
o Insert a finger into each catch and gently lift and pull the filter
outwards (2).
o Ensure the filter unclips from the hood, as shown in the diagram
above (3) before you pull it away.
o Install the cooker hood between two cupboards.
o Drill and insert the screws onto the side boards of the cupboards
(the holes should be no larger than 2 mm). The distance
between the head of the screw and the side board should be 5
mm.
o The distance between the screw and the cooking surface below
should be no less than 1040 mm. If there is not enough room
you can place the screws higher or lower.
