25

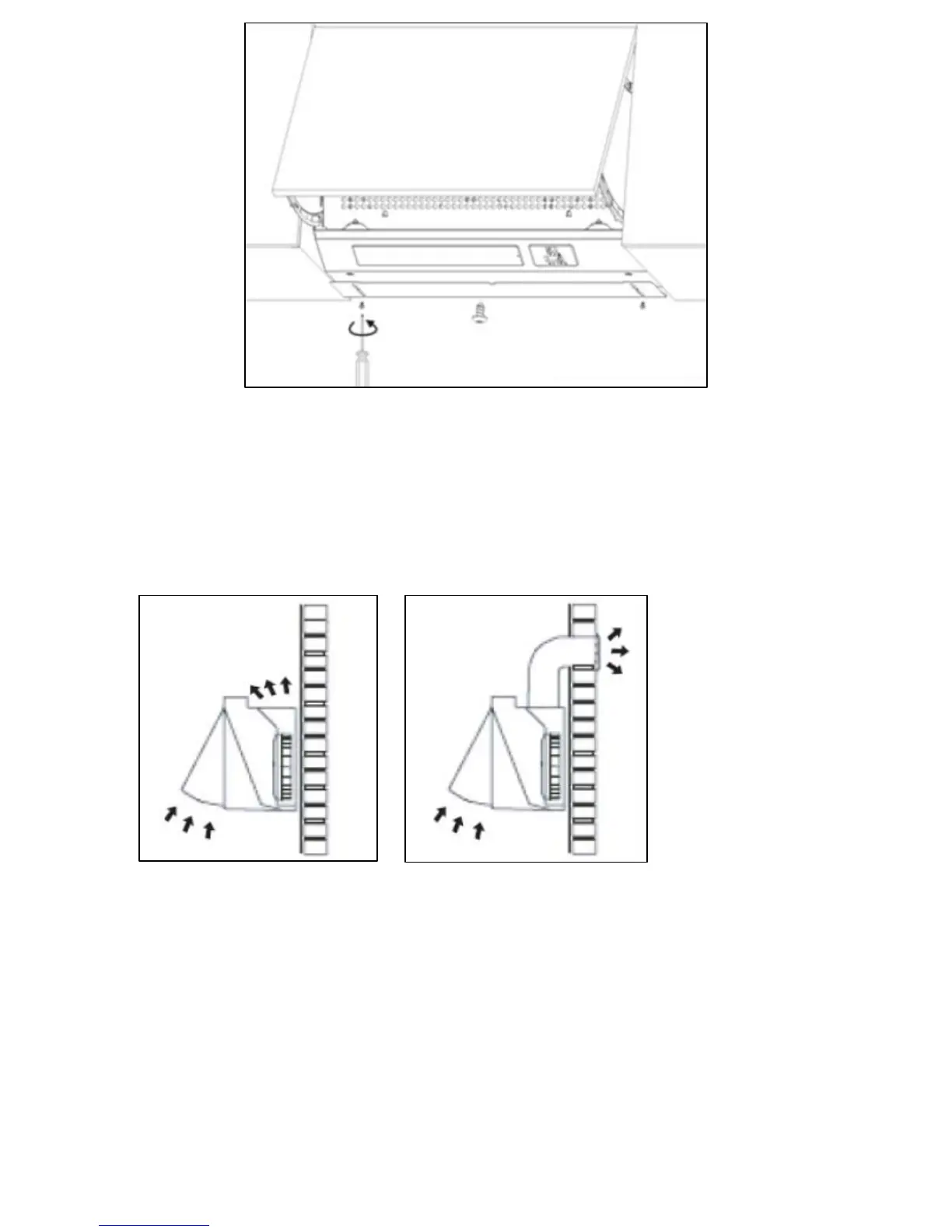

o Install the adjusting plate, in order to cover the gap between the
wall and the bottom of the cooker hood, by screwing it into
place.
Connecting to external ducting
Recirculation: Ducted out:
o To use the appliance in extraction mode it is necessary to install
external ducting.
o Select a position that is suitable for the location of the cooker
hood and will be accessible once the cooker hood is installed. Cut
out a circle measuring 130 mm in diameter.
o The discharge outlet should be suitable for cooking vapours and
it should have a cross section of at least 150 cm².
