23

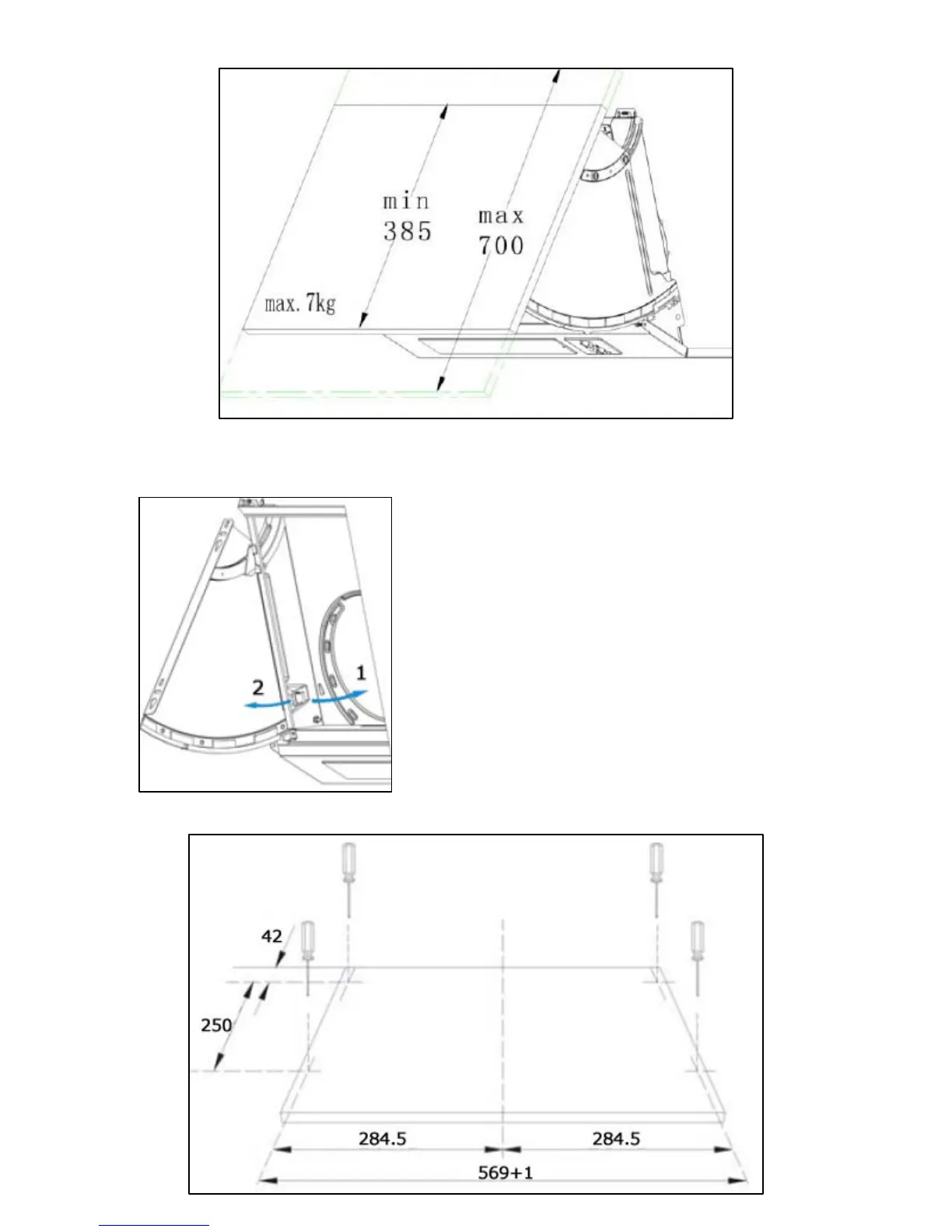

Fitting the décor door
o The décor door should be no less than 16 mm thick, 385 – 700
mm high and weigh no more than 7 kg.
o Pull out the movable fan-shaped
door frames, which are located in
two curved plastic slides on each
side of the cooker hood. They are
prevented from being pulled out too
far by plastic limit clips.
o Taking care not to drop the frame,
pull gently on the plastic limit clips
(1) while opening the door frame
(2). Once the door frame has
cleared the plastic clip, the door
frame can be removed from the
hood.
