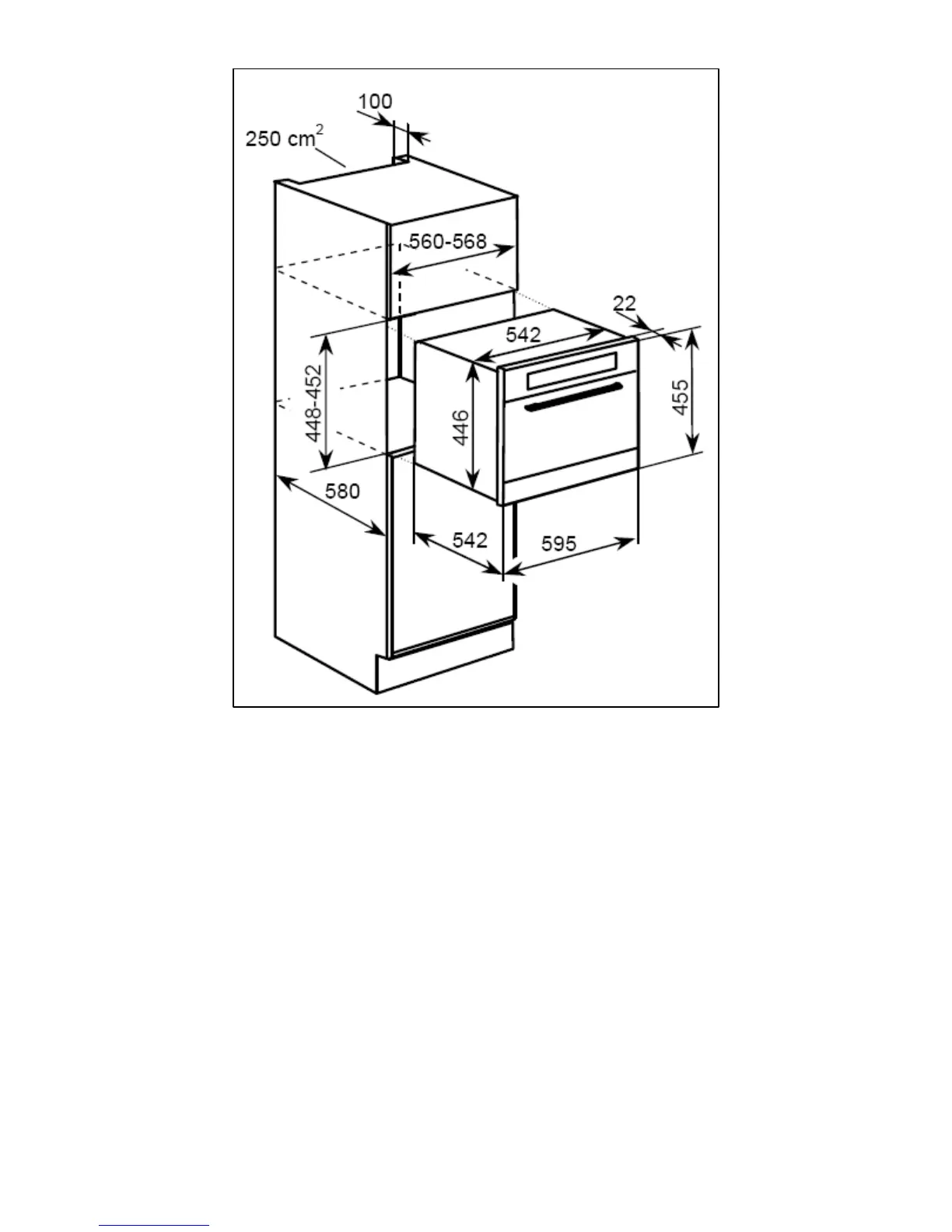

Aperture and ventilation requirements
o The diagram above shows the aperture and ventilation
requirements that you require to build the appliance into a
housing unit.
o Ensure that the rear panel of the furniture housing unit has been
removed.
o You must ensure that there is a hole to feed the electrical cable
through. These steps must be done before commencing the rest
of the installation process.
o This oven may be installed without any additional ventilation cut
outs being made in the housing unit. However the ventilation cut
shown in the diagram MUST be present, otherwise the
microwave oven may not function correctly.
o Do not cover the ventilation slots or air intake points.
46
