Baumer SCATEC-2 FLDK 110 Series User Manual

Manual SCATEC-2 7 Baumer Electric AG
Version 2011-05
www.baumer.com Frauenfeld, Switzerland

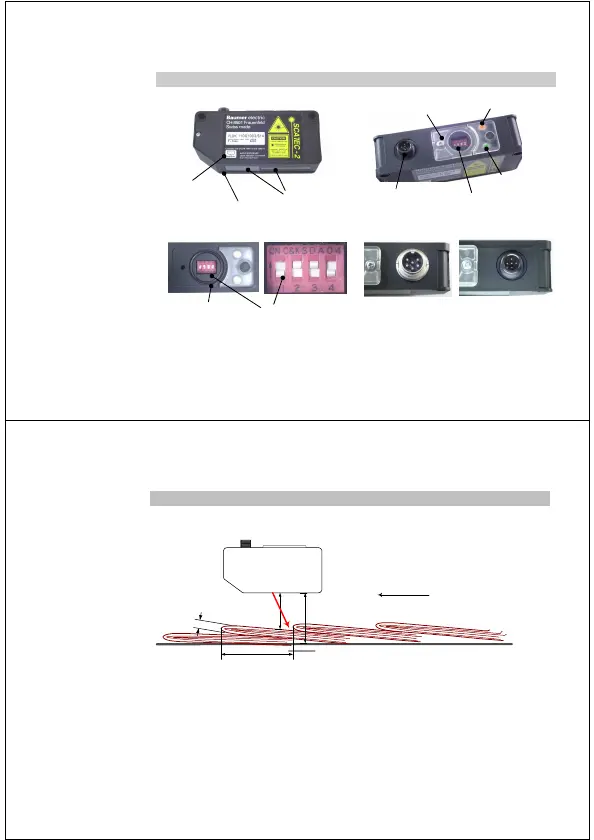

4 Part identification
Edge-LED (yellow)
Sensor plug
Front window
Alignment aid
Lower edge of sensor
DIP
-
switches
DIP-switch cover
with screw
DIP
-
switches
O-ring
Power
-
LED (green)
Connector : .../S42
.../S14
Manual SCATEC-2 8 Baumer Electric AG
Version 2011-05
www.baumer.com Frauenfeld, Switzerland
5 Terms and definitions
For reference, the terms defined in this section are used throughout the manual.
Conveying plane
k
Front edge
Tail edge
d
Beam blocker
a
h
Running
direction
Mounting height: h Distance between the lower edge of the sensor and the conveying
plane.
Working plane The edge lies on the working plane. With thick overlapping copies, the
working plane is slightly higher than the top of the conveying plane on
which the copies are transported. Distance d is measured vertically to
the lower edge of the sensor.
Working distance: d Distance between the lower edge of the sensor and the working plane.
