Baumer SCATEC-2 FLDK 110 Series User Manual

Manual SCATEC-2 29 Baumer Electric AG
Version 2011-05
www.baumer.com Frauenfeld, Switzerland
Sensitivity FLDK 110x1003/Sxx:
Edges from 0.20 mm thickness and greater are detected
FLDK 110x1005/Sxx and FLDK 110x1006/Sxx
Edges from 0.25 mm thickness and greater are detected
Sensitivity is dependant on distance and speed

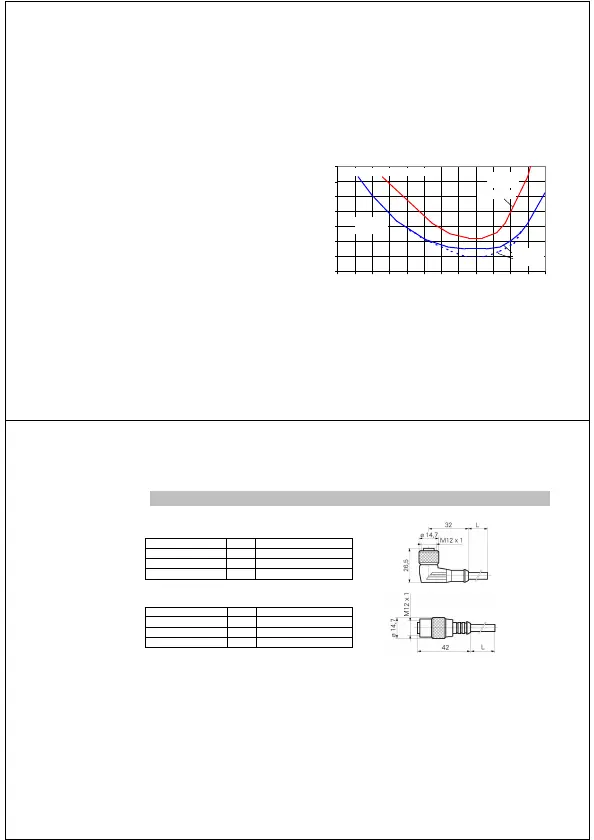

Typical sensitivity characteristics see figure below
0.0
0.2
0.4
0.6
0.8
1.0
1.2
1.4
0 5 10 15 20 25 30 35 40 45 50 55 60
Working distance
d
[mm]
Edge thickness k [mm]
Scatec-2 FLDK 110x1003/Sxx Sensitivity
maximum
sens itivity
reduce d
sens itivity
v = 1 ... 2 m/s
How to read the graphics:
An edge with thickness k (*) at distance d can be detected when in the
graphics k is above the curve at the corresponding distance d .
(*) Test object: cleanly cut white paper or cardboard
v = 2 m/s
v = 1 m/s
typical se nsitivity characteristics
Manual SCATEC-2 30 Baumer Electric AG
Version 2011-05
www.baumer.com Frauenfeld, Switzerland
11 Accessories
Cable with plug
Article number Cable length L
ESW 33AH0200 4-pin 2m PUR/halogen-free
ESW 33AH0500 4-pin 5m PUR/halogen-free
ESW 33AH1000 4-pin 10m PUR/halogen-free
Article number Cable length L
ESG 34AH0200 4-pin 2m PUR/halogen-free
ESG 34AH0500 4-pin 5m PUR/halogen-free
ESG 34AH1000 4-pin 10m PUR/halogen-free
